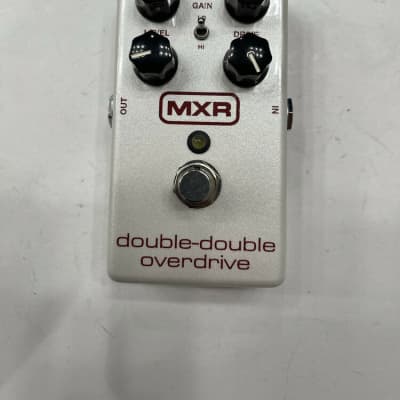

MXR Double-Double Overdrive

The MXR Double-Double Overdrive by Dunlop features two classic overdrives in a single housing, selectable with the flick of a switch. It includes a Low Gain circuit for rich, fiery midrange tones and a High Gain circuit that emphasizes highs and lows. The pedal is equipped with Treble and Bass controls to customize the overdriven sound, along with Level and Drive controls to adjust the intensity. The MXR Double-Double Overdrive is housed in a road-ready casing with true bypass switching.

Technical specifications include an input impedance of approximately 1Mohm at 1 KHz, an output impedance of 100 ohms at 1 KHz, and a maximum gain of greater than 40 to less than 50 dBV. The noise floor is rated at -90 dBV, and the power consumption is less than 14 mA at 9 VDC.

The pedal can be powered by a Dunlop ECB003 9-volt adapter or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
