Tube Screamer Mini

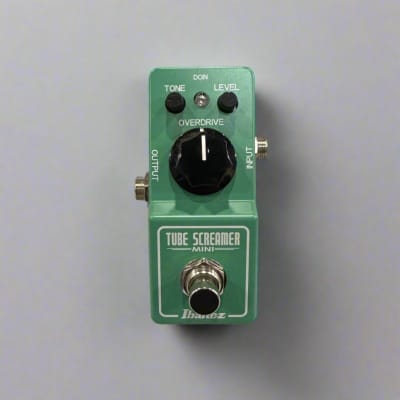

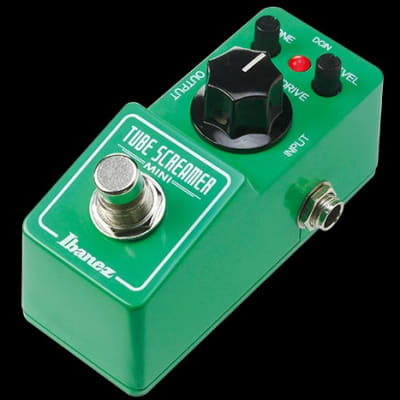

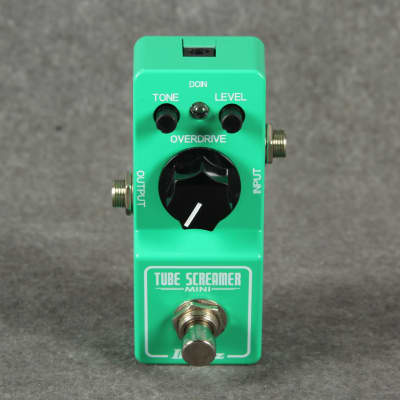

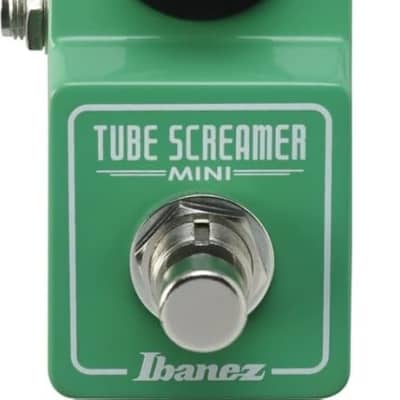

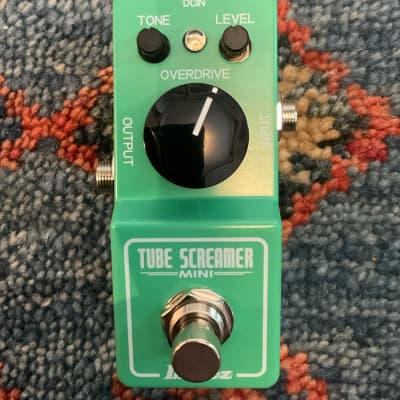

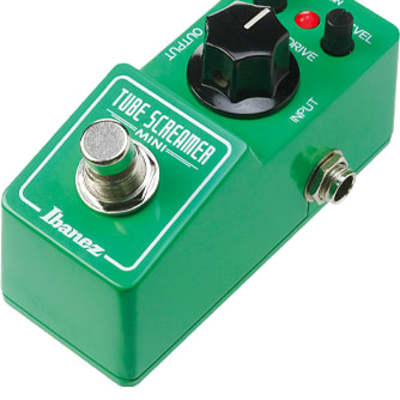

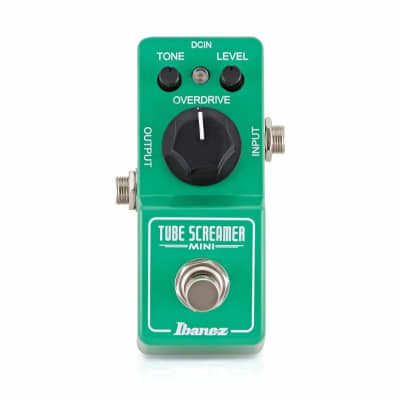

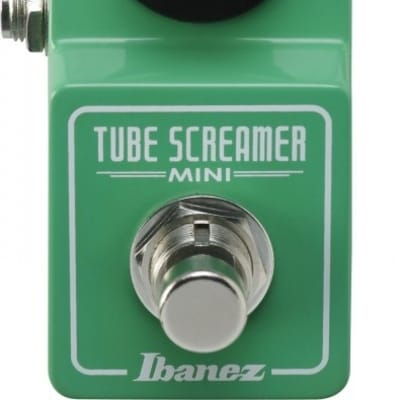

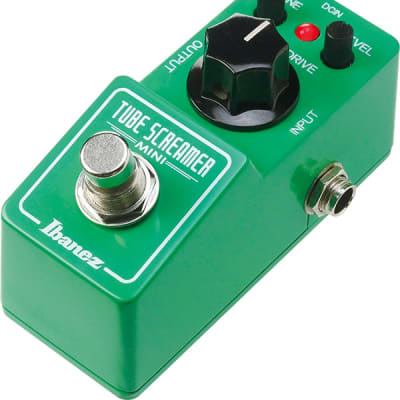

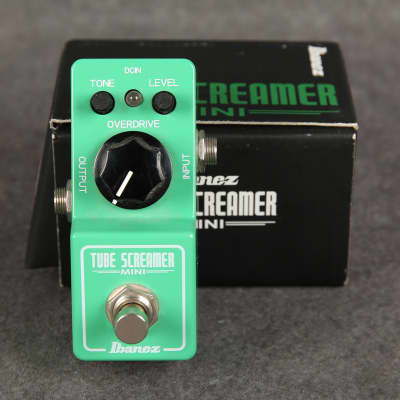

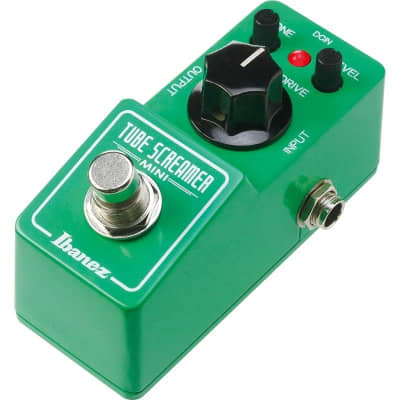

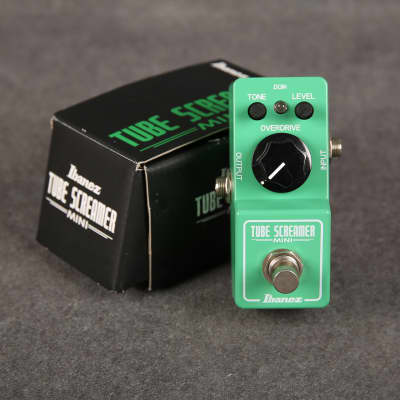

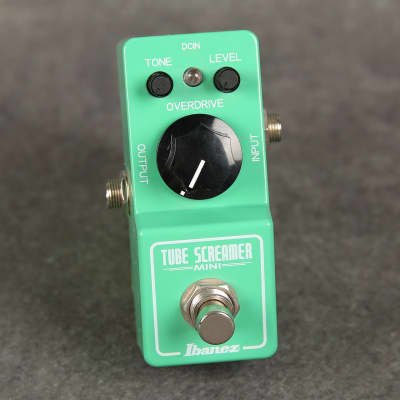

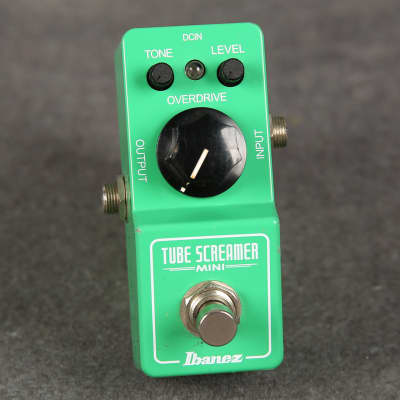

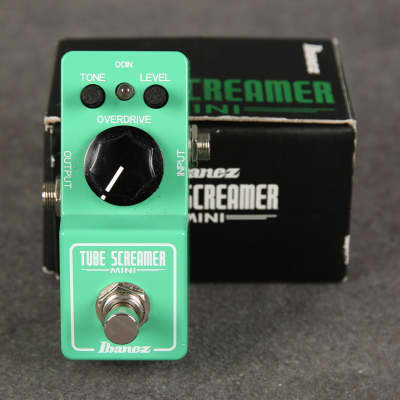

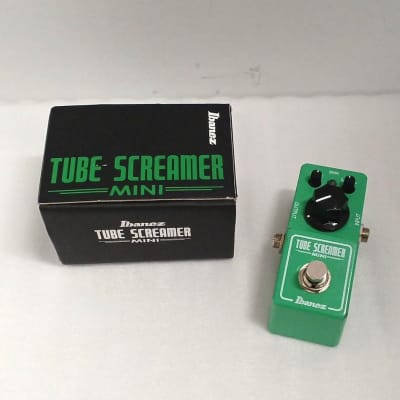

The Ibanez Tube Screamer Mini is a compact overdrive pedal designed to deliver the legendary tones of the Tube Screamer in a smaller form factor. It features Overdrive, Tone, and Level controls, allowing for precise tonal shaping and gain adjustments. The pedal is equipped with true bypass switching, providing a direct signal path and ensuring a clean tone.

Technical specifications include:
- Input/Output: 1/4" (6.3 mm) jacks
- Input Impedance: 500 kOhms
- Output Impedance: 10 kOhms
- Power Supply: External DC 9 volt AC adapter (Center-negative)
- Power Consumption: 18mA @ 9V
- Housing Size: Mini
- Dimensions: 51 x 55 x 93 mm
- Weight: Approximately 0.28 - 0.29 kg (varies based on sources)

The pedal is powered by an external 9V DC adapter and does not support battery operation. It is designed for mono input and output and is housed in a pedalboard-friendly miniature size, making it suitable for conserving space on pedalboards.

The Ibanez Tube Screamer Mini is known for its classic TS808-style appearance and is manufactured in Japan. It is widely regarded for its ability to produce round, rich, tube-powered overdrive sound, making it a popular choice among guitarists seeking versatile overdrive effects.
