Ventura Vibe

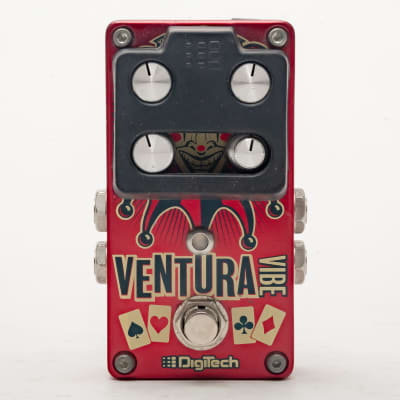

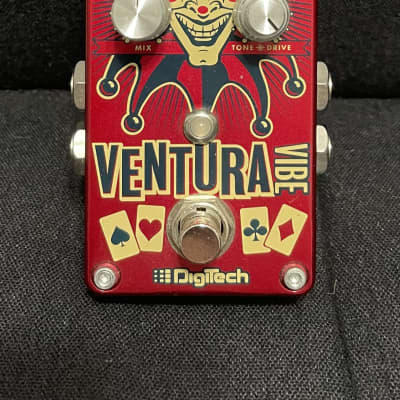

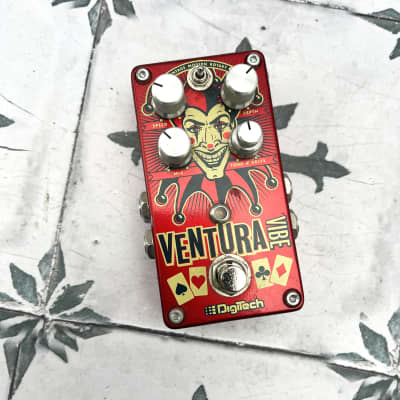

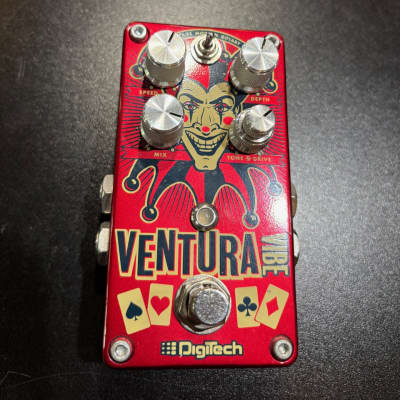

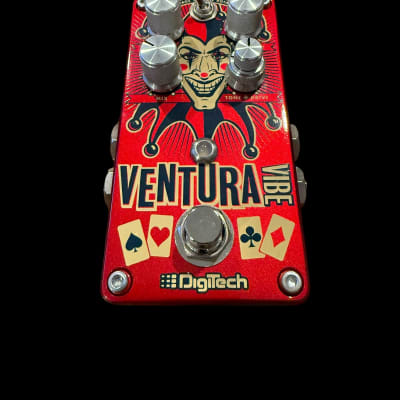

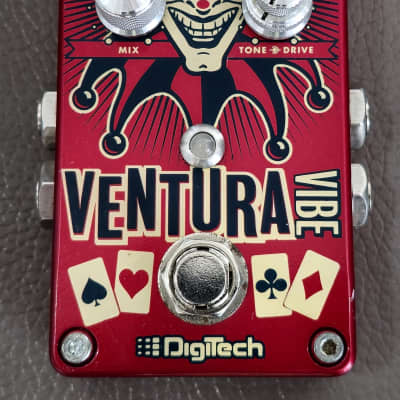

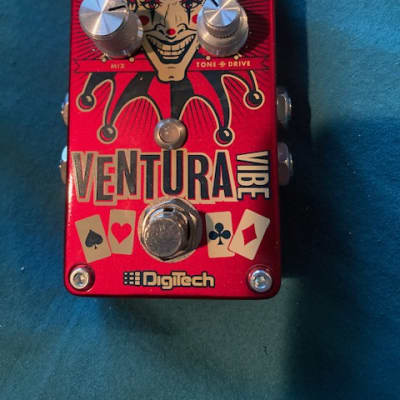

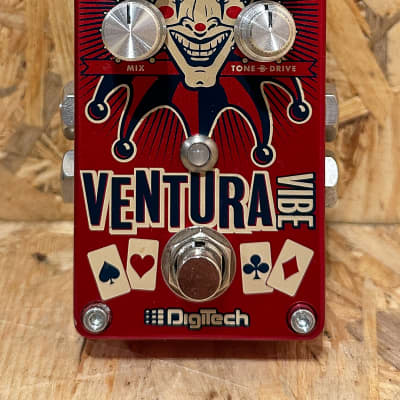

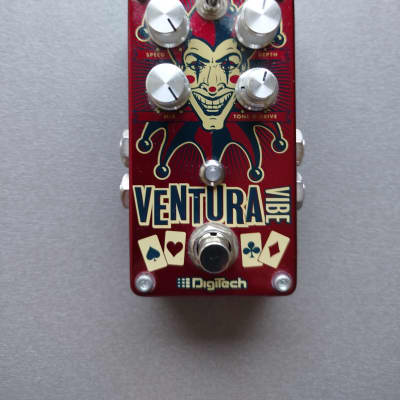

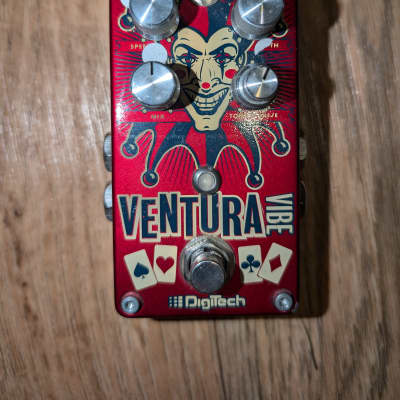

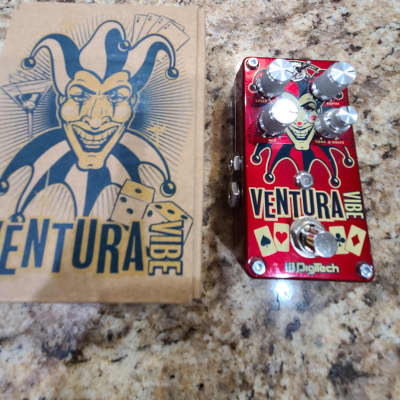

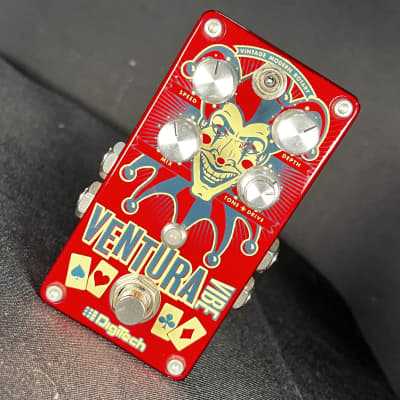

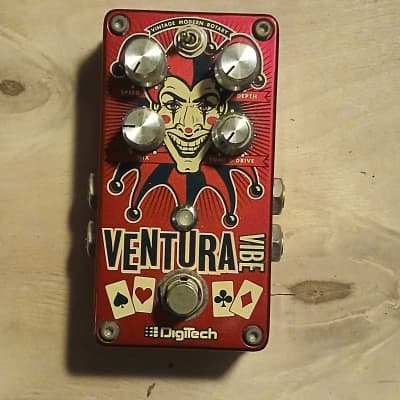

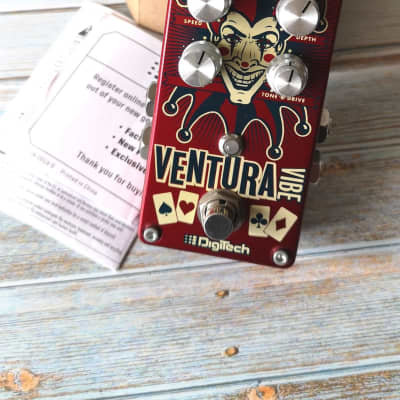

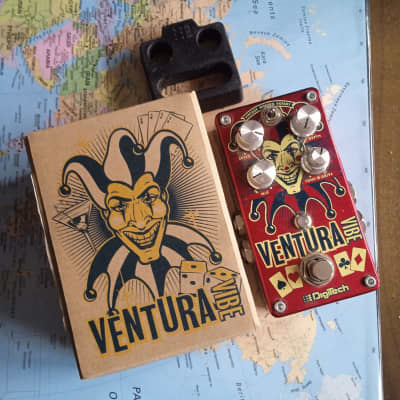

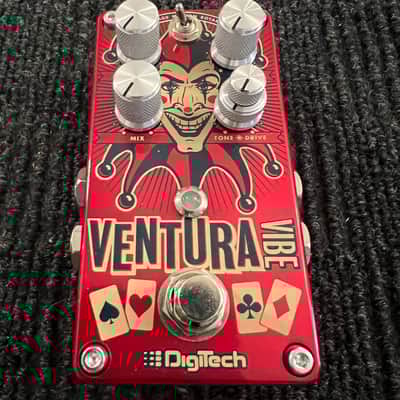

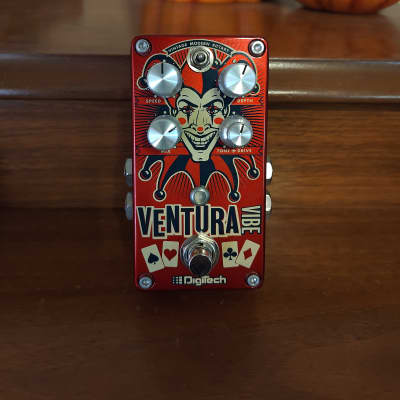

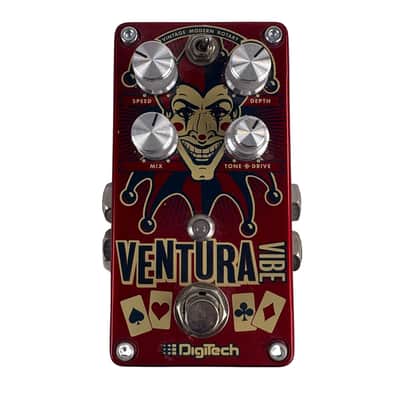

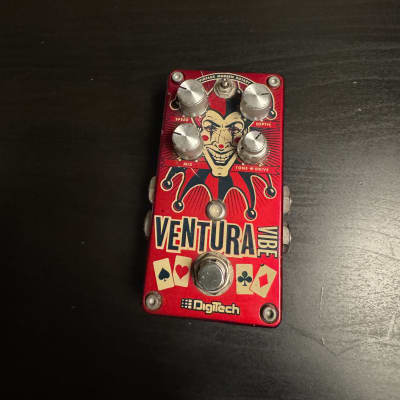

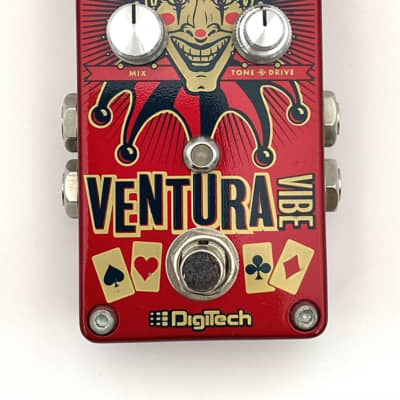

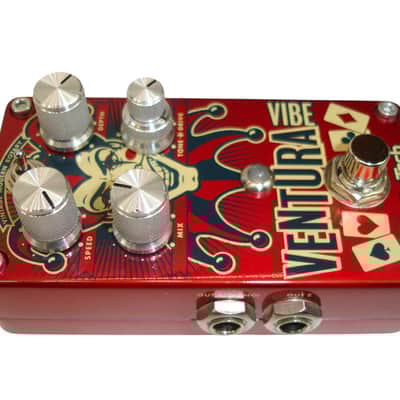

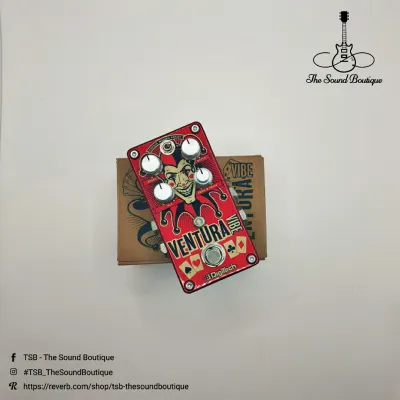

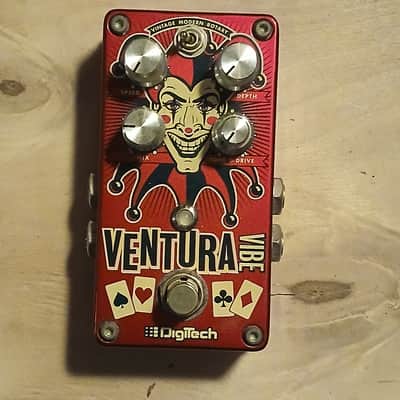

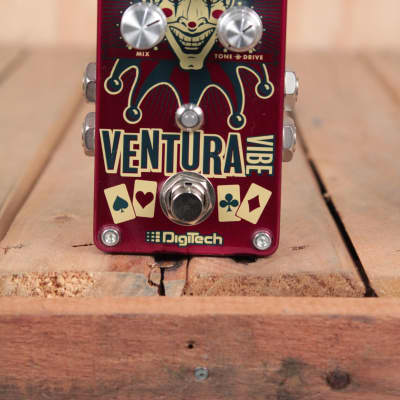

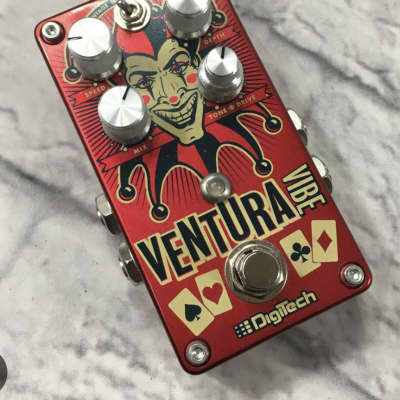

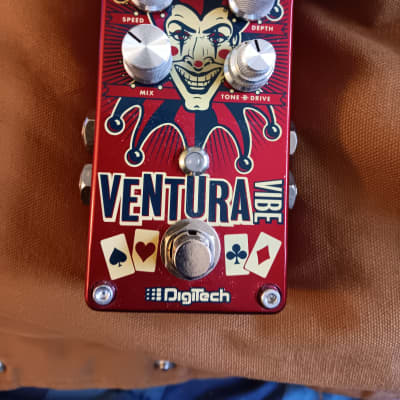

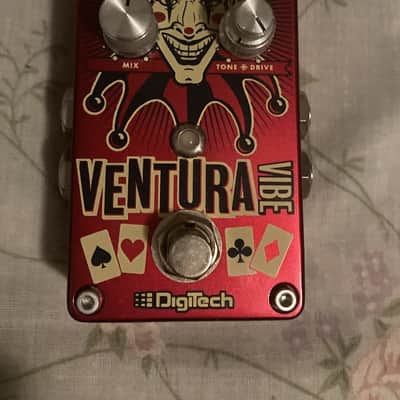

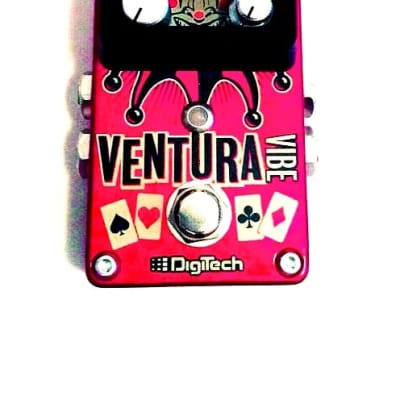

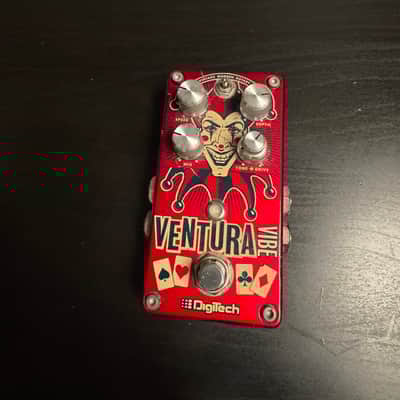

The DigiTech Ventura Vibe is a rotary/vibrato pedal that offers three unique effect types: vintage, modern, and rotary. It provides true stereo processing and features a compact size with a soft click, vacuum-style footswitch. The pedal also includes true bypass circuitry, constant high voltage operation, and a bicolor status LED indicator.

Specifications:
- Input: Separate Left and Right ¼" Unbalanced (Tip-Sleeve)
- Input Impedance: Effect on: >1 MO (stereo), >500 kO (mono); Effect off: True hardwire bypass
- Output: Separate Left and Right ¼" Unbalanced (Tip-Sleeve)
- Output Impedance: Effect on: 1 kO; Effect off: True hardwire bypass
- Controls: Speed, Rotary/Vibrato Type, Depth, Mix, Tone, Drive, Effect On/Off
- Switches: Soft Click, Vacuum Style Footswitch; Effect Type Toggle Switch
- Power Requirements: 9 VDC external power supply (required)
- Power Consumption: 675 mW (< 75 mA @ 9 VDC)
- Current Draw: 75 mA (typical at 9 VDC)
- Power Supply Model: PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
- Power Supply Output: 9 VDC 1.3 A
- Dimensions: 4.40” (L) x 2.65” (W) x 2.0” (H); 11.18cm (L) x 6.73cm (W) x 5.08cm (H)
- Weight: 1 lb; 0.453 kg

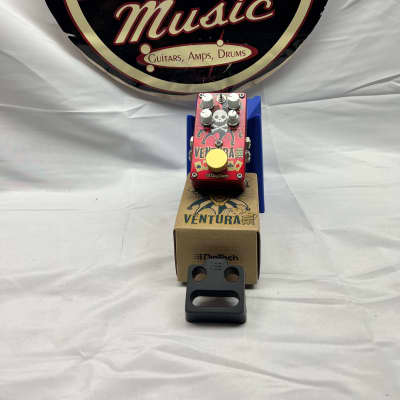

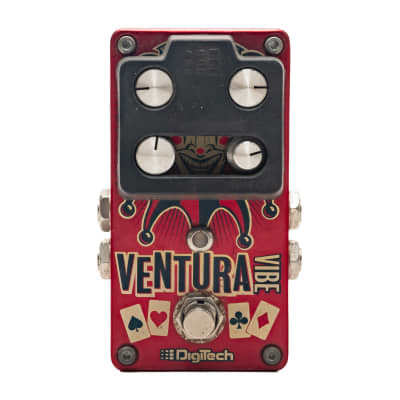

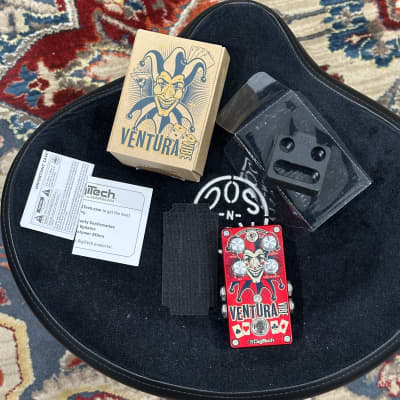

The Ventura Vibe also comes with stage accessories, including StompLock™ knob guard and a custom-cut Hook and Loop Pedalboard Pad for pedalboard mounting.
