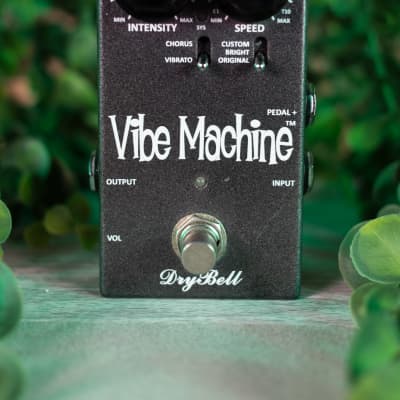

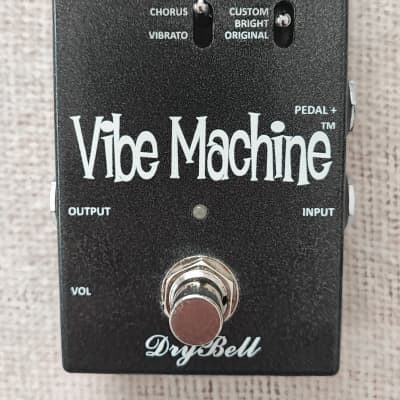

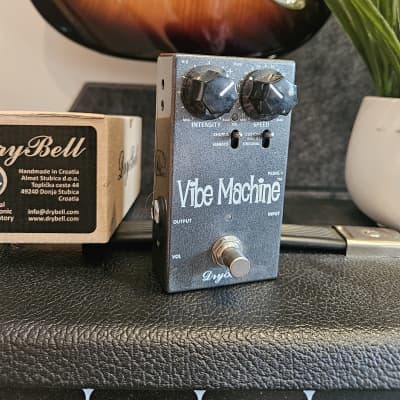

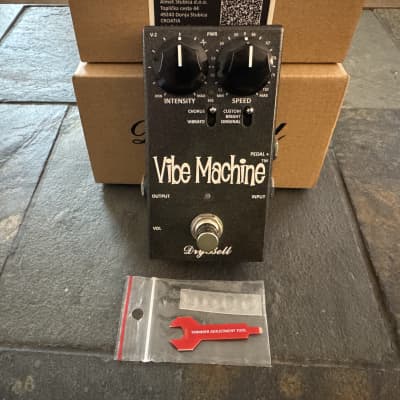

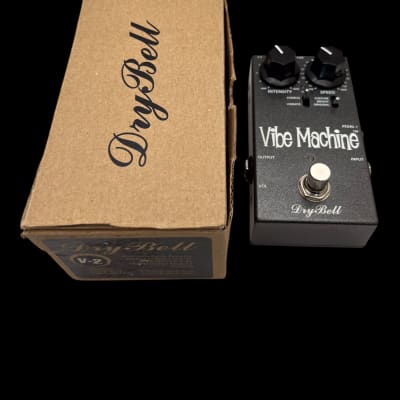

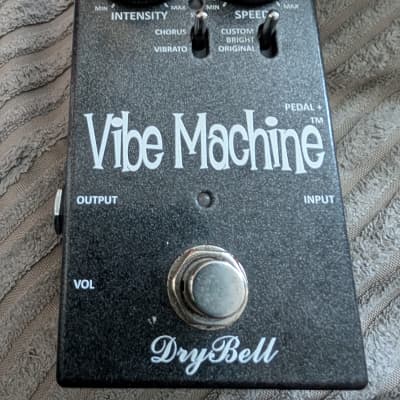

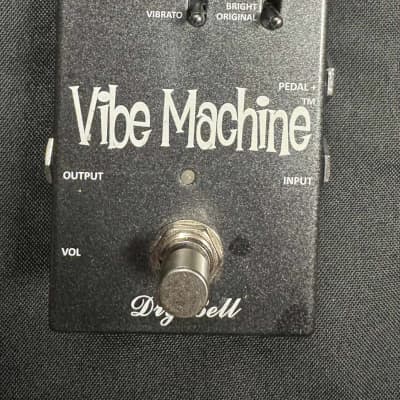

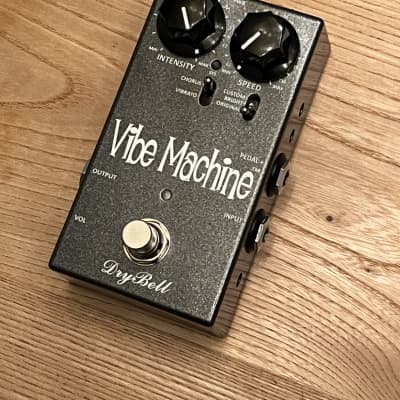

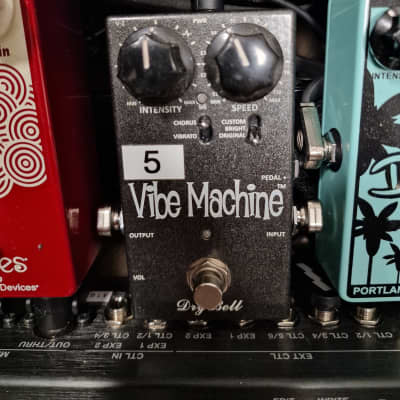

Vibe Machine V-2

The Vibe Machine V-2 by DryBell is a top-quality Uni-Vibe® type pedal developed with an analog signal path designed with discrete transistors, similar to the classic Uni-Vibe®, but made with small electronic SMD technology. Here are the technical specifications:

- Model: V-2
- Manufacturer Part Number: DB2418
- Input impedance ORIGINAL: 69kΩ/1kHz
- Input impedance BRIGHT: 1MΩ/1kHz
- Input impedance CUSTOM: Adjustable 69kΩ - 320kΩ/1kHz (side CUSTOM trimmer)
- Output impedance: Variable 1kΩ - 90kΩ/1kHz (depending on GRIT trimmer)
- External power supply: Adapter 9V DC, (8.91V min > 16V max! )
- Power supply connector type: Barrel, Plug 5.5mm/2.1mm, Center Negative
- Max current (pulse): 165mA (min 170mA power supply recommended, not included)
- Length: 112 mm / 4.42 inch
- Width (W/O jacks): 60 mm / 2.37 inch
- Height (W/O potentiometers): 31 mm / 1.22 inch
- Weight: (W/O package): 0.28 kg / 0.62 lb
- Weight: (with package): 0.36 kg / 0.79 lb
- Standard color/finish: Graphite metallic / Powder coating

The pedal features a range of controls including INTENSITY, SPEED, VIBRATO/CHORUS toggle switch, ORIGINAL/BRIGHT/CUSTOM toggle switch, VOLUME, CUSTOM, CHORUS, GRIT, and more. It also includes a TRUE BYPASS footswitch, MULTICOLOR SYSTEM LED, RANGE & SYMMETRY factory-set side trimmers, and a PEDAL+ jack for connecting an expression pedal or external footswitch.
