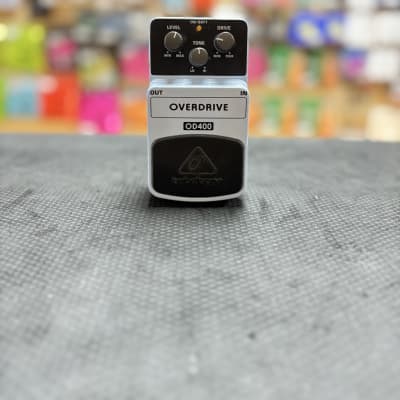

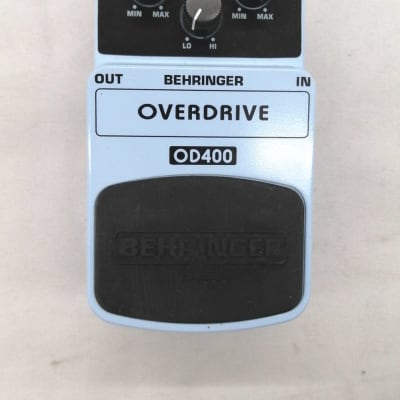

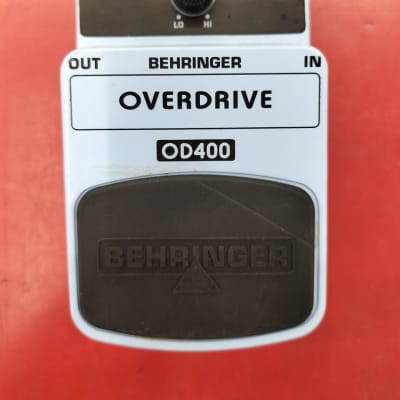

OD400 Overdrive

The Behringer OD400 Overdrive pedal is designed to provide fat and big overdrive sounds with incredible dynamic response. It features the following technical specifications:

Controls:
1. LEVEL knob: Adjusts the output level.
2. TONE knob: Shapes the overall sound.
3. DRIVE knob: Adjusts the amount of the overdrive/distortion effect.
4. ON/BATT LED: Illuminates when the effect is activated and serves as a battery level indicator.
5. Footswitch: Activates/deactivates the effect.

Connectors:
1. 1/4" TS IN: Instrument cable input.
2. 1/4" TS OUT: Sends the signal to the amp.
3. DC IN: Connection for a 9 V power supply (not included).
4. Battery compartment: For a 9 V battery (not included).

Technical Specifications:
- Input Impedance: 500 kΩ
- Output Impedance: 1 kΩ
- Power Supply: 9 VDC, 100 mA regulated
- Power Consumption: 30 mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg

The OD400 is designed to be constantly striving to maintain the highest professional standards, and modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.
