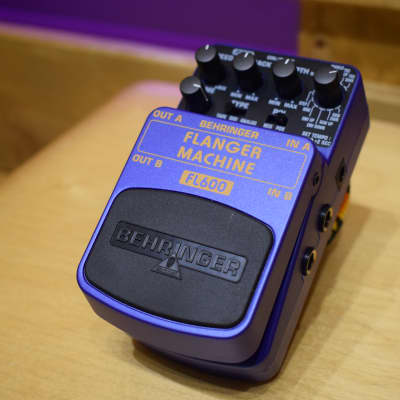

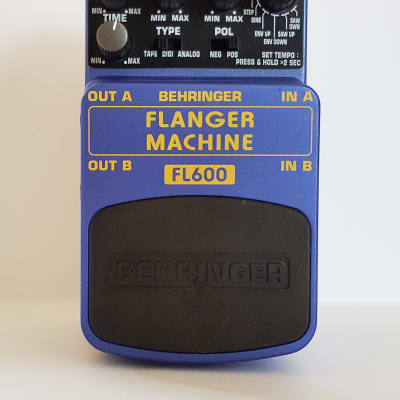

FL600 Flanger Machine

The Behringer FL600 Flanger Machine is a high-quality effects pedal that offers 11 extraordinary flanger modes with extensive parameter control for maximum creativity. Here are the technical specifications and features:

1. Controls:
- TYPE switch: Choose between high-fidelity digital flanger, vintage analog bucket-brigade delay, and classic studio flanger from the '70s (TAPE).
- TIME control: Adjust the flanger delay time.
- SPEED control: Determine the speed of the flanger effect.
- F.BACK control: Determine the amount of output signal fed back into the flanger input.
- DEPTH control: Achieve a fuller and deeper effect sound.
- Flanger effect modes: TRG DWN, TRG UP, CHORUS, VINTAGE, RANDOM, STEP, SINE, ENV UP, ENV DOWN, SAW UP, SAW DOWN.
- POL switch: Choose between negative and positive feedback flanger modes.

2. Connectors:
- IN A/B: 1/4" TS, 500kΩ (stereo input) / 250kΩ (mono input)
- OUT A/B: 1/4" TS, 1kΩ (stereo output)

3. Power:

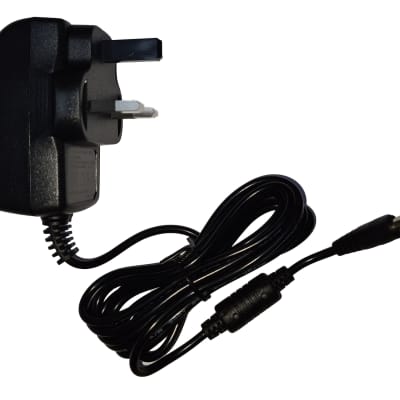

- Power supply: 9V, 100mA, regulated (BEHRINGER PSU-SB, not included)
- Power connector: 2mm DC jack, negative center
- Battery: 9V type 6LR61
- Power consumption: 60mA

4. Dimensions and Weight:
- Dimensions: Approx. 54mm (H) x 70mm (W) x 123mm (D)
- Weight: Approx. 0.33kg (0.73 lbs)

5. Additional Information:
- The FL600 has no on/off switch and is activated as soon as the plug is inserted into the IN connector.
- The pedal cover houses the battery compartment for a 9V battery.
- The serial number is located on the underside of the pedal.
