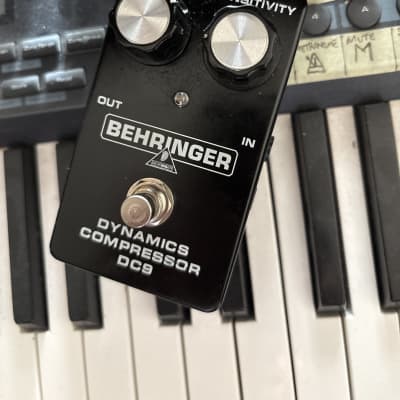

DC9 Compressor

The Behringer DC9 Dynamics Compressor is a guitar effects pedal designed to provide stable dynamics and sustain to the guitar signal without degrading the original sound. It can also boost the overall volume of the instrument for solo parts. The compressor limits the dynamic range of the signal by attenuating signal peaks exceeding a certain threshold level, resulting in a more powerful and punchy tone.

Key Features and Controls:
1. Sensitivity Control: Determines the compression ratio, intensifying compression as the sensitivity value increases.
2. Output Control: Adjusts the output level to compensate for gain reduction or boost the instrument's output level.
3. LED Indicator: Illuminates when the effect is activated and serves as a battery level indicator.
4. Footswitch: Depress to activate/deactivate the effect.
5. Input and Output Connectors: 1/4" TS connectors for instrument and amp connections.
6. Power Supply: 9V power supply or 9V battery (not included).

Technical Specifications:
- Input Impedance: 1 MΩ
- Output Impedance: 1 kΩ
- Power Supply: 9V, 100 mA regulated
- Power Consumption: 9 mA
- Dimensions: Approximately 56 x 113 x 69 mm (H x W x D)
- Weight: Approximately 0.24 kg (0.53 lbs)

Safety Instructions:
- Do not use near water or heat sources.
- Use only authorized attachments/accessories.
- Do not attempt to service the product yourself.
