Koji Comp

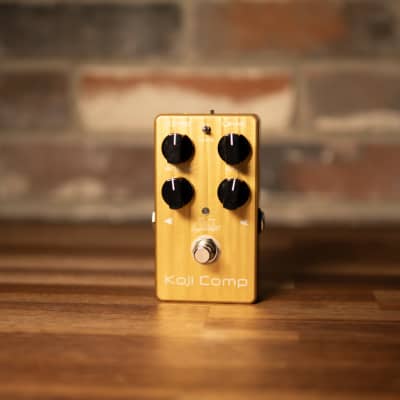

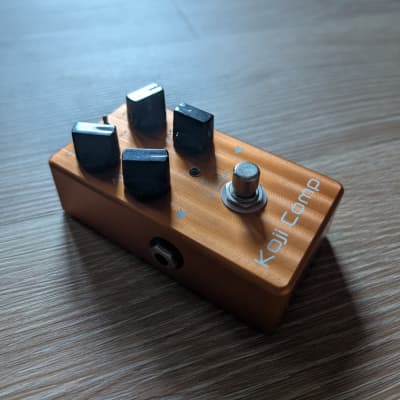

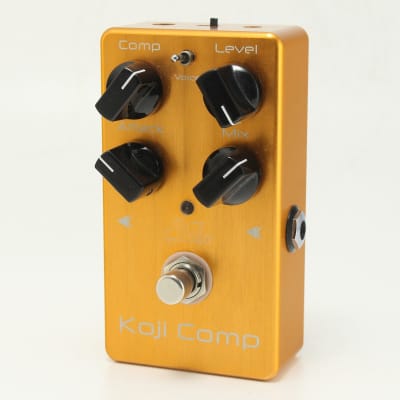

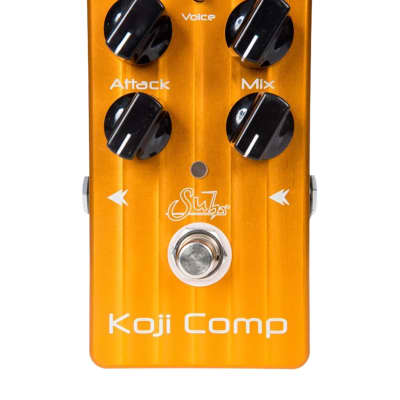

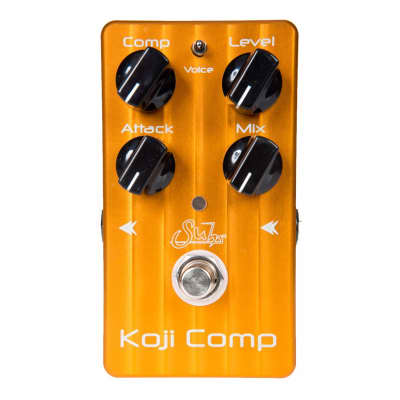

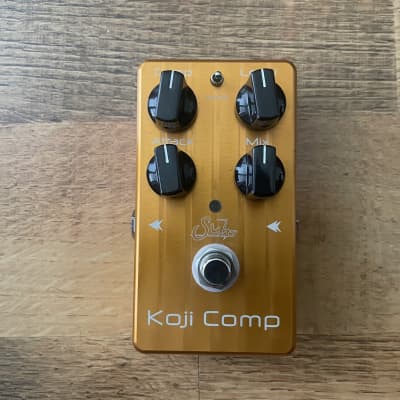

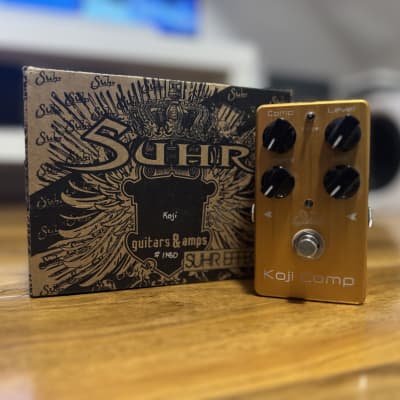

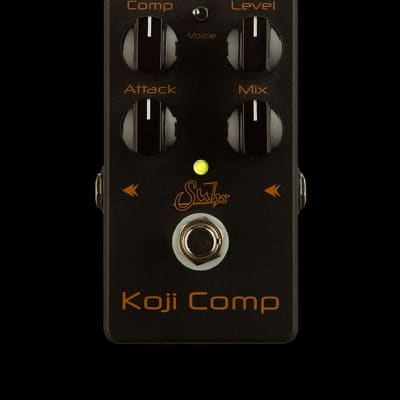

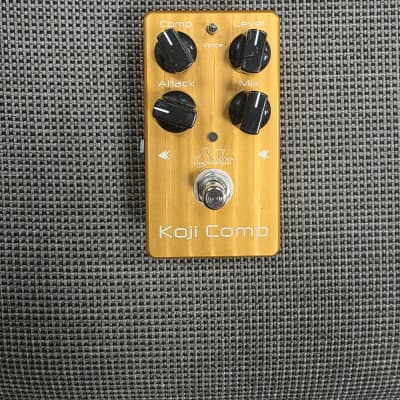

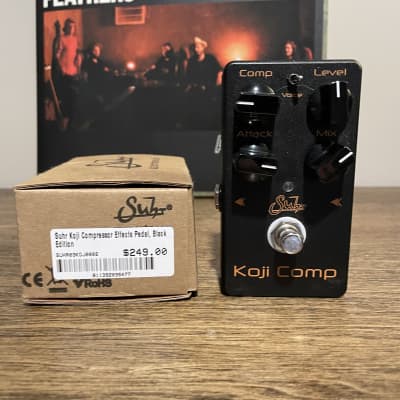

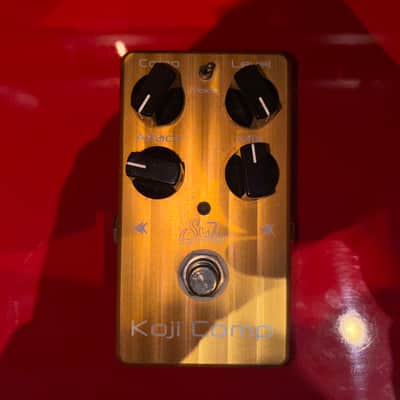

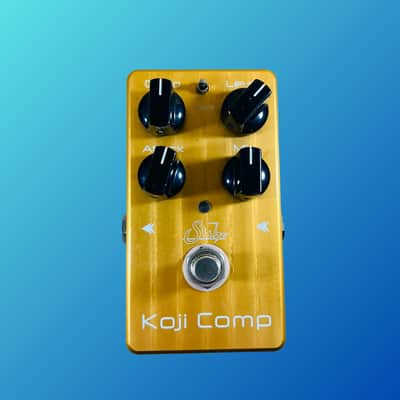

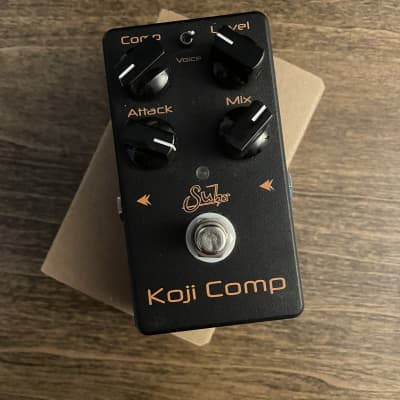

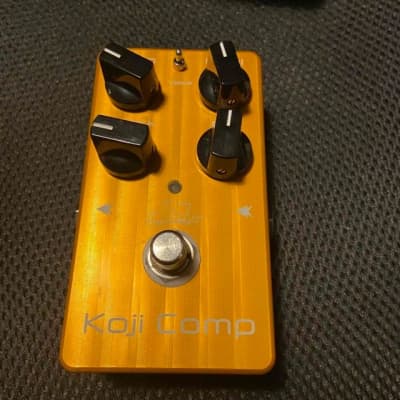

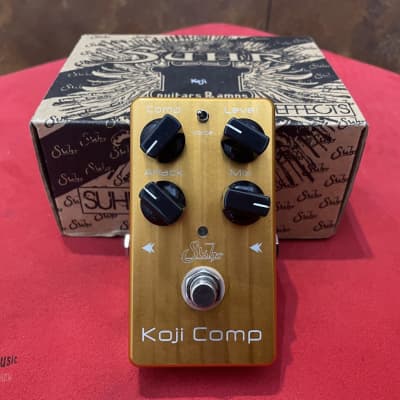

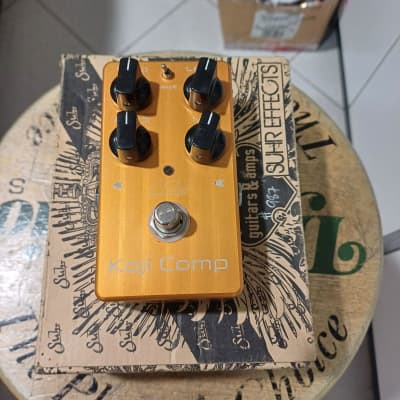

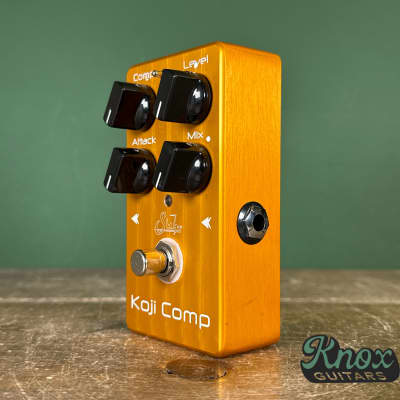

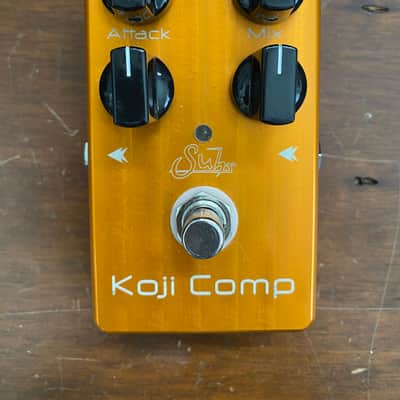

The Suhr Koji Comp is a versatile analog compressor pedal designed to provide a wide range of vintage and modern compression effects without compromising tone. It features an easy-to-tweak control layout, including Compression, Level, Attack, Mix, and a three-position Voice switch.

Key Specifications:
- Input Impedance: 1M ohm
- Output Impedance: 600 ohm
- Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
- Operating Voltage: 5V to 18V (nominal 9V)
- Maximum Voltage: 20Vdc
- Attack Time Range: 1ms-100ms
- Gain Reduction Indicator: 3 color LED
- Reverse Battery Protection: Yes
- Over Voltage Protection: Yes
- Current Consumption: ~ 20mA
- Estimated Battery Life: 40-50 hours of continuous use
- Dimensions: 2.50” Width x 4.50” Depth x 1.25” Height
- Weight: 0.75 pound
- FX Link Connector: 1/8” mono jack
- Shield to Tip: Activate On/Off
- FX Link Max Voltage: 3.3Vdc
- ROHS Compliant: Yes

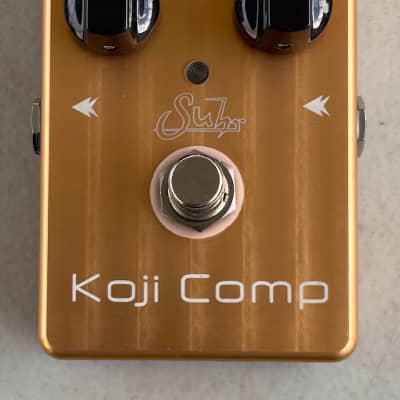

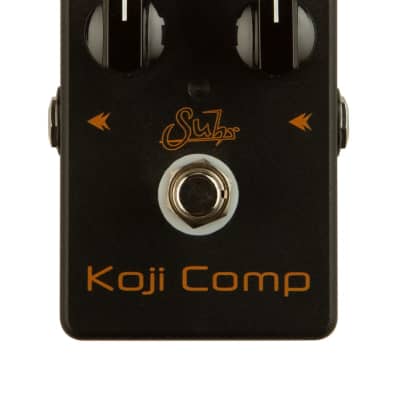

The pedal also includes advanced features such as a selectable bypass mode, FX Link for remote control, and a low battery monitor. The LED indicator provides visibility into the amount of compression being used, with different colors indicating the level of gain reduction. The Koji Comp is suitable for various use-cases, from smoothing out rhythms to creating warm and squishy tones for R&B; and Country music.
