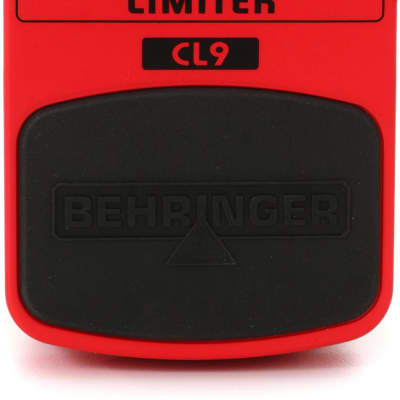

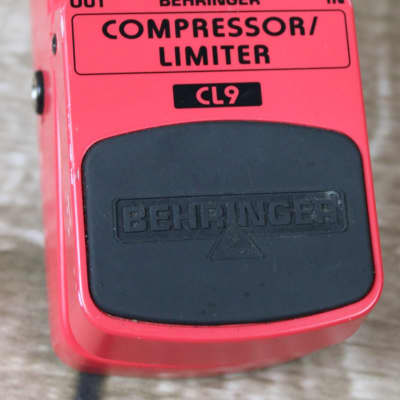

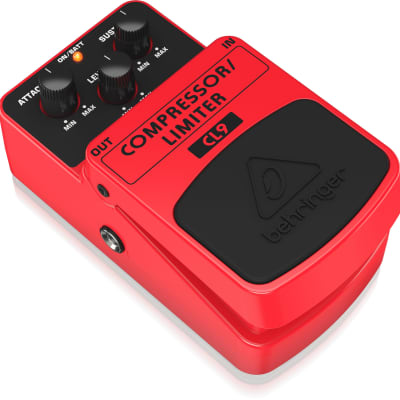

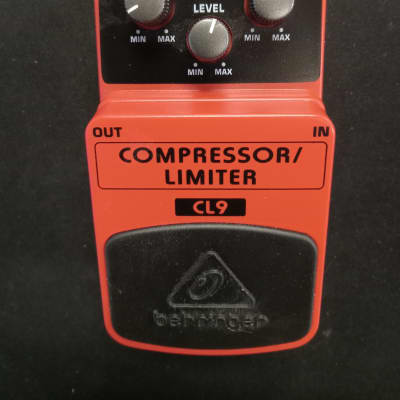

CL9 Compressor/Limiter

The Behringer CL9 Compressor/Limiter is designed to achieve super-smooth compression and extended sustain. It features the following technical specifications:

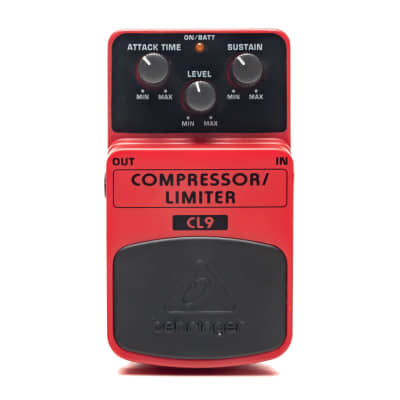

Controls:
1. ATTACK TIME control: Determines the speed at which the compressor responds to input signal peaks.
2. LEVEL control: Adjusts the output level.
3. SUSTAIN control: Determines the amount of compression.
4. ON/BATT LED: Illuminates when the effect is activated and serves as a battery level indicator.
5. Footswitch: Used to activate/deactivate the effect.
6. 1/4" TS IN connector: For instrument cable input.
7. 1/4" TS OUT connector: Sends the signal to the amplifier.
8. DC IN connection: For a 9V power supply (not included).
9. Battery compartment: Located underneath the pedal cover.

Specifications:
- Input Connector: 1/4" TS, Impedance 500 kΩ
- Output Connector: 1/4" TS, Impedance 1 kΩ
- Power Supply: 9V, 100 mA regulated
- Power Consumption: 30 mA
- Physical Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D), weight approx. 0.73 lbs / 0.33 kg

The CL9 is designed to compress loud signals and boost low signals without degrading the original sound. It does not have an on/off switch and is powered by a 9V battery or a 9V power supply. The specifications and appearance are subject to change without notice.
