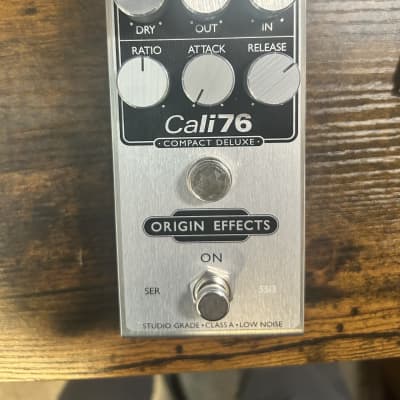

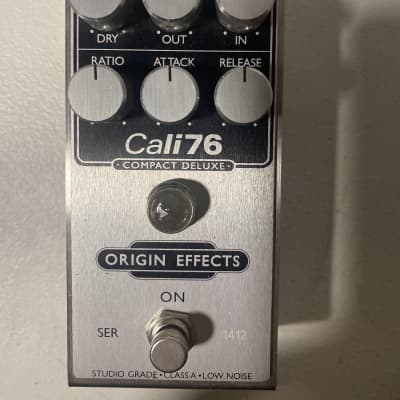

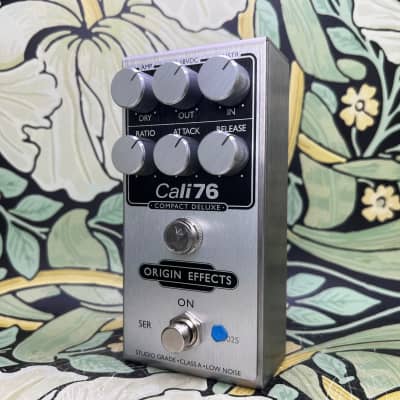

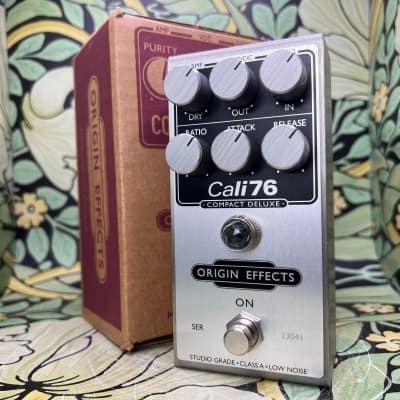

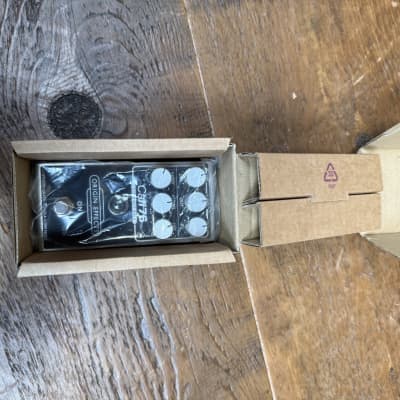

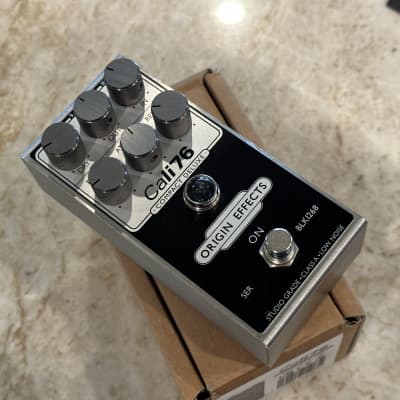

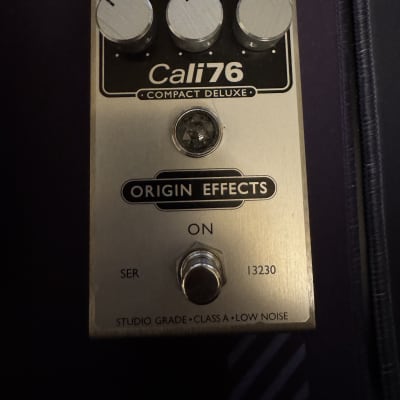

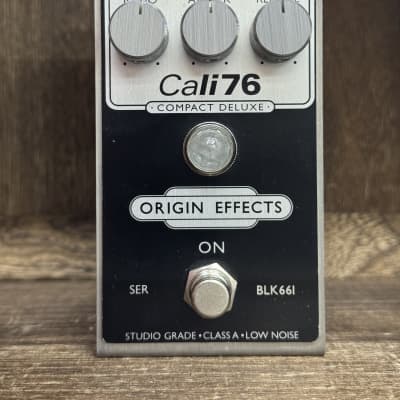

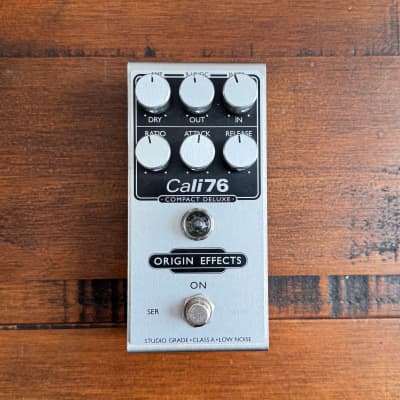

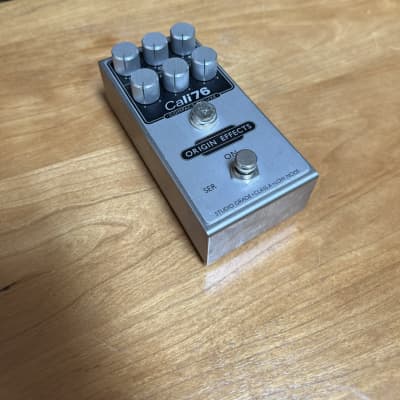

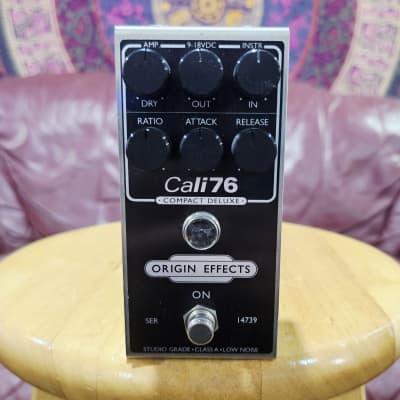

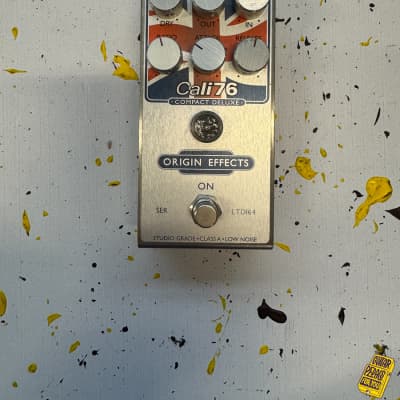

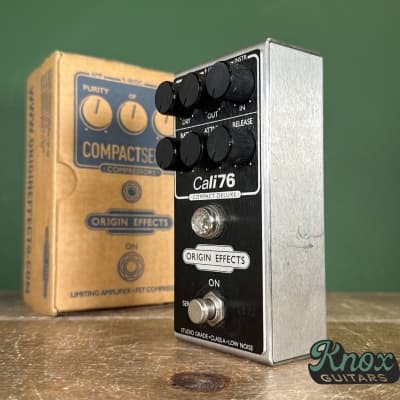

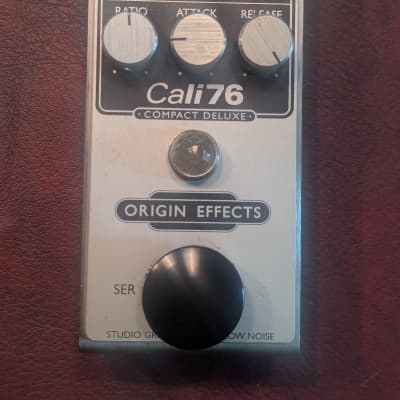

Cali76 Compact Deluxe

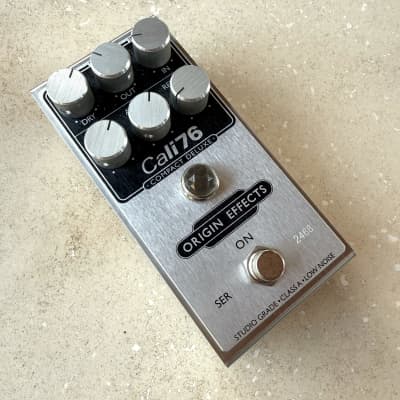

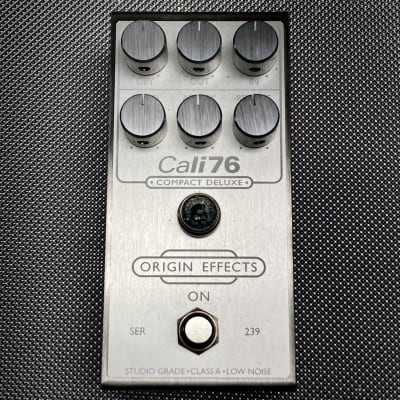

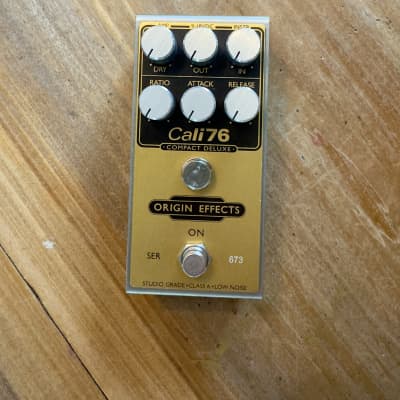

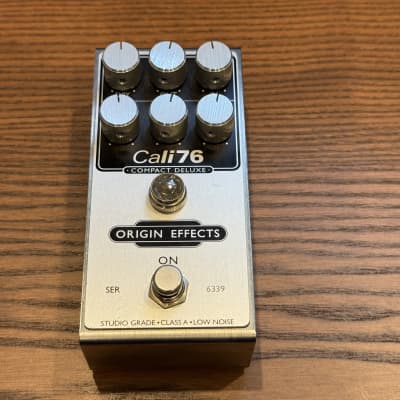

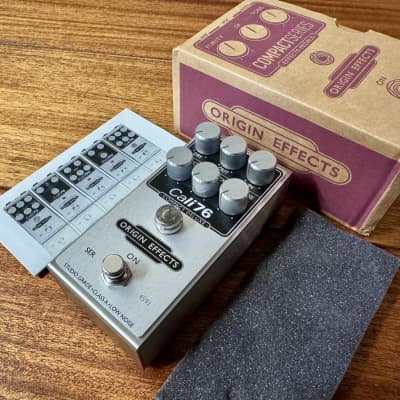

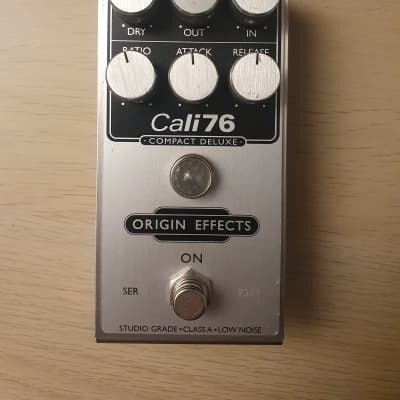

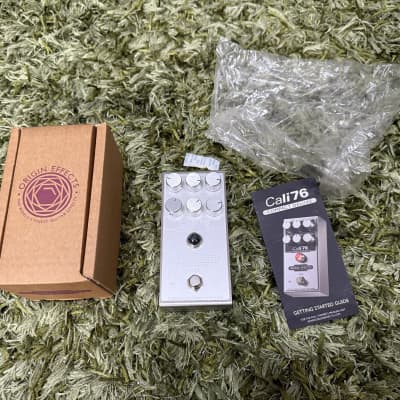

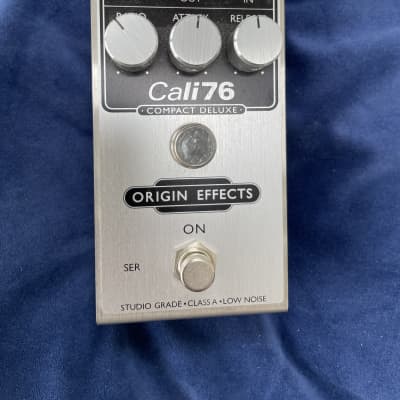

The Cali76 Compact Deluxe by Origin Effects is a studio-grade FET compressor designed for pedal format use. It features high-current, low-noise, discrete Class-A circuitry, dedicated Attack and Release controls, and a Dry level control for instant parallel compression. The pedal offers fully sweepable Ratio, Input, and Output controls for precision settings, along with a classic jewel lamp that functions as an intuitive three-color gain reduction meter.

The physical specifications include dimensions of 143 x 66 x 65 mm (5.62 x 2.6 x 2.56 in.) and a weight of 620 g (1.37 lb). The electrical specifications indicate an input impedance of 1 MΩ, output impedance of 1 kΩ, and a current draw of 100 mA. The Cali76 Compact Deluxe operates on a power supply of 9-18V DC with a 2.1 mm center-negative connector.

The pedal is housed in a hand-polished, brushed stainless steel enclosure and features aluminum controls, Neutrik jack sockets, and a heavy-duty footswitch. It is designed and built in England, offering tour-grade, all-metal construction and high-impedance buffered bypass with silent switching.

It is recommended to use a regulated power supply specifically designed for guitar pedal applications to ensure impeccable performance and avoid unwanted noise.
