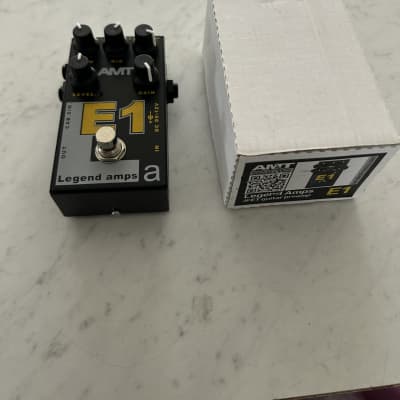

E-1

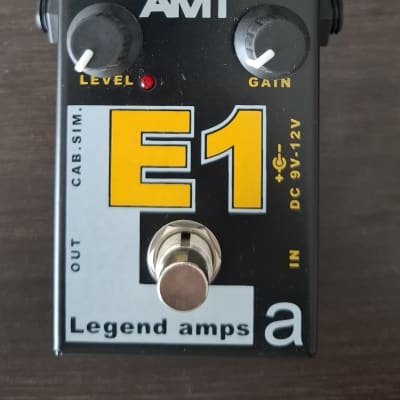

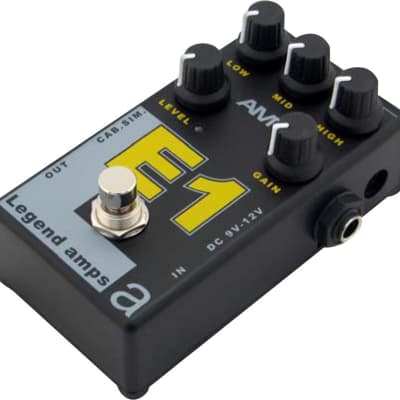

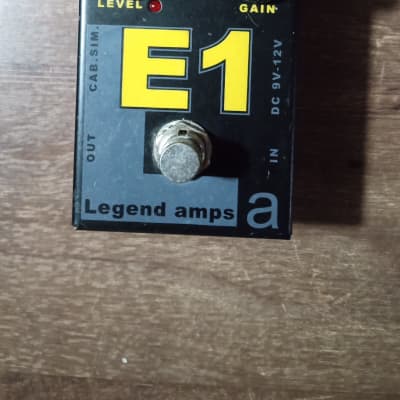

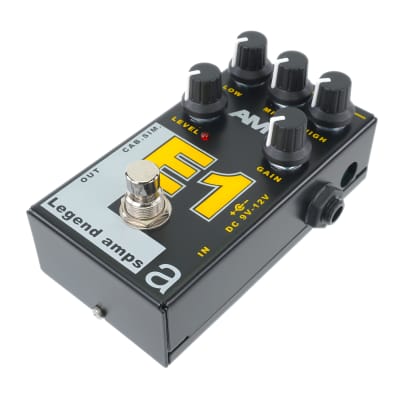

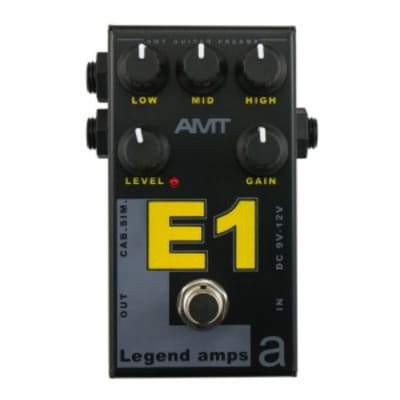

The AMT Electronics E-1 Legend Amps is a one-channel preliminary guitar amplifier designed for direct connection to a power amplifier input or RETURN connector. It is part of the AMT Legend Amp Series, offering excellent dynamics, nuances, and characteristics similar to tube-driven amplifiers. The E-1 is designed to emulate the Lead channel of the ENGL Fireball amplifier, providing a resilient, aggressive distortion with a wide range of sensitivity adjustment for classic rock sounds and higher gain settings.

Key Specifications:
- Input Impedance: 1.0 MΩ
- Nominal Sensitivity: -20dB
- Output Impedance: 10kΩ
- Output Signal Level: +10dB
- CAB.SIM. Output Signal Level: -10dB
- Power Supply: 9V battery (6F22) or optional power adapter
- Current Consumption: Approx. 6mA
- Dimensions: 111 x 58 x 73 mm
- Weight (without battery): 0.23 kg

Controls:
- LEVEL: Output volume level
- GAIN: Preamp sensitivity level
- LOW, MID, HIGH: Tone shaping controls
- FOOTSWITCH: Switches between PREAMP / BYPASS

Features:
- Two signal outputs: DIRECT AMPLIFIER OUT and CAB SIMULATION OUT
- True bypass circuitry for no loss of guitar signal
- Power saving mode for reduced current consumption
- Emulates the Lead channel of the ENGL Fireball amplifier

The E-1 Legend Amps is suitable for both studio work and live performances, offering a direct recording option with the CAB OUT feature for high-quality direct sound. It is recommended to use a 9V battery or a compatible power adapter for optimal performance.
