GFX-4

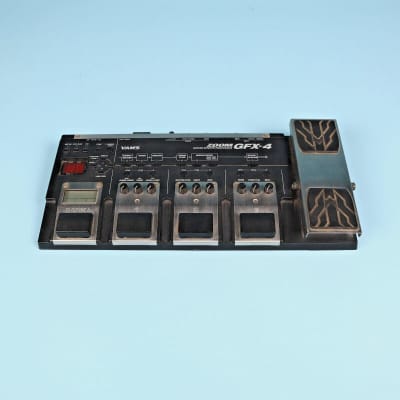

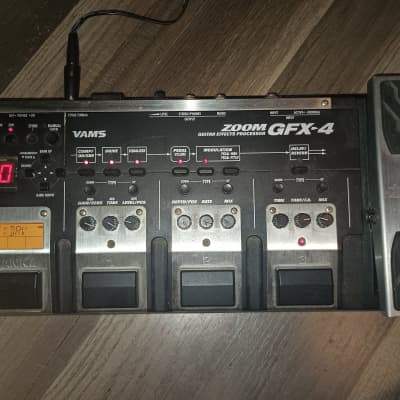

The Zoom GFX-4 is a guitar effects processor pedalboard designed to create authentic guitar sounds. It offers 44 effect programs, including 42 effects, Zoom Noise Reduction (ZNR), and an Amp Simulator. The GFX-4 features 6 effect modules, along with ZNR and Amp Simulator, providing a wide range of sound manipulation options.

Specifications:
- Effect Programs: 44 (42 effects + ZNR + Amp Simulator)
- Effect Modules: 6 + ZNR + Amp Simulator
- Patch Memory:
- USER: 3 patches x 5 banks x 4 groups = 60 (read/write/store)
- PRESET: 3 patches x 5 banks x 4 groups = 60 (read only)
- Total 120 patches
- Sampling Frequency: 40 kHz
- A/D Conversion: 20-bit 64-times oversampling converter
- D/A Conversion: 20-bit 128-times oversampling converter
- Input:
- Guitar Input: Standard phone jack (mono) x 1 (nominal input level -10 dBm)
- Pickup Select: Normal (input impedance 510kΩ) / Active (input impedance 20 kΩ)
- Outputs:
- Mono Output: Standard phone jack (mono) x 1 (nominal output level -10 dBm, output impedance 10 kΩ or higher)
- Combined Line/Headphone Output: Standard phone jack (stereo) x 1 (maximum output level +4 dBm, output load impedance 10 kΩ or higher)
- Display: Original LCD with backlight, 2-digit, 7-segment LED

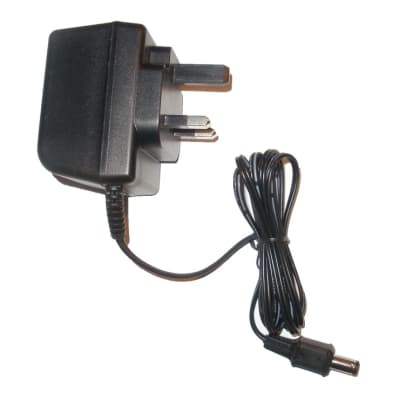

- Power Requirements: 12 V AC, 500 mA (from supplied AC adapter AD-0008)
- Dimensions: 397 mm (W) x 183 mm (D) x 60 mm (H)
- Weight: 1.4kg
- * 0 dBm = 0.775 Vrms
- * Design and specifications subject to change without notice

The GFX-4 is suitable for guitarists seeking a versatile and comprehensive effects processor to enhance their sound and performance.
