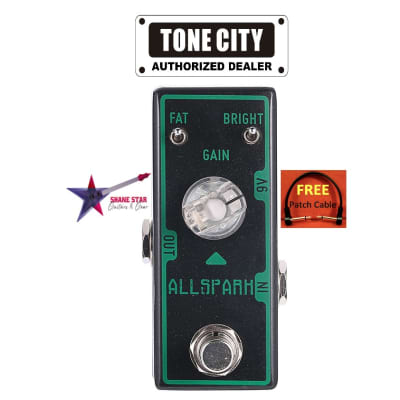

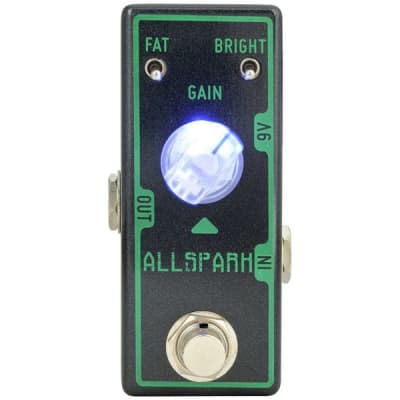

All Spark

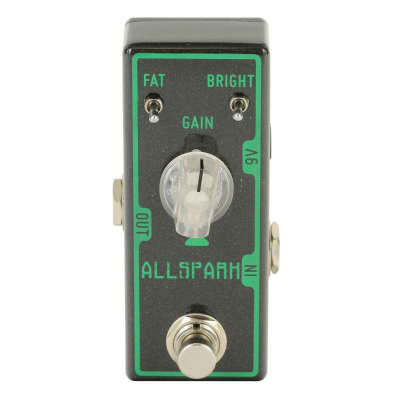

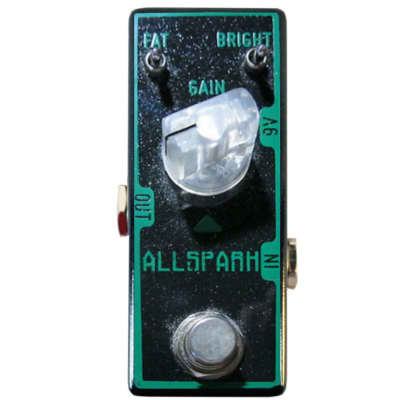

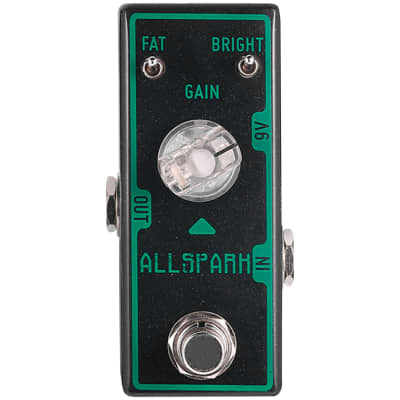

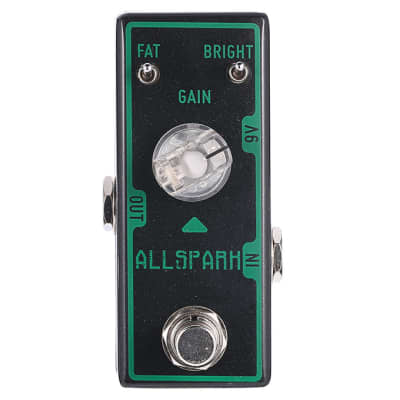

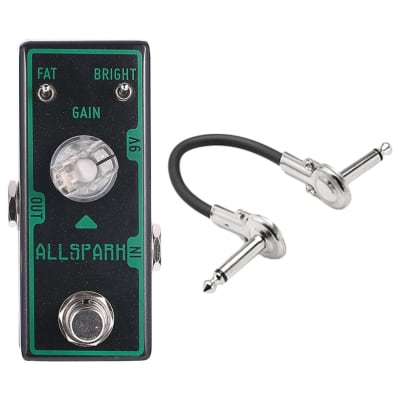

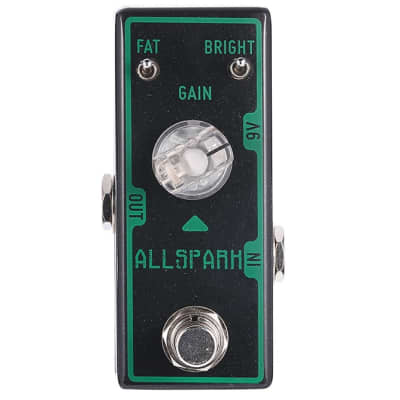

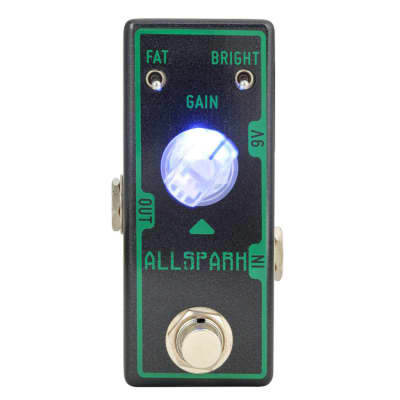

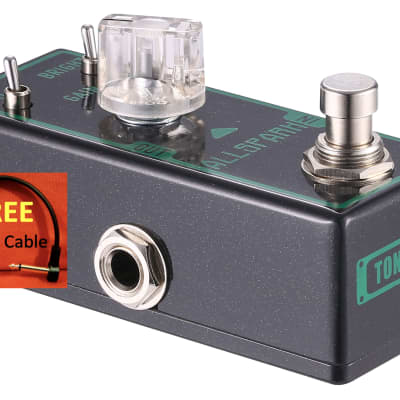

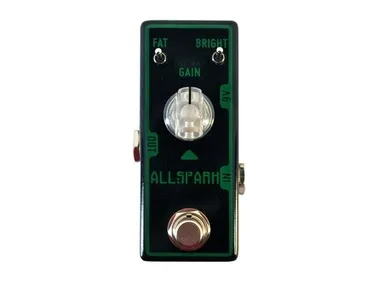

The Tone City All Spark Boost pedal features the following technical specifications:

- Input Impedance: 1MΩ
- Output Impedance: 10KΩ
- Normal Input Level: -10dB
- Engine A Turn On Only: 11dB
- Engine B Turn On Only: 10dB
- Bypass: True Bypass
- Current Draw: Both engines turn on 25mA
- Power Supply: DC 9V regulated
- Dimensions: 12(L) x 10(W) x 5.2(H) cm
- Net Weight: 0.35 kg
- Class A JFET design
- Up to 17dB pure volume boost
- Additional BASS and TREBLE control for flexibility in achieving tone
- Preserves the characteristics of the original tone
- Suitable for adding thickness, changing brightness, adjusting low frequency, and adding overtones
- Ideal for use at the end of the effects signal chain to avoid sound loss from long signal cables

The pedal is designed to provide a clean boost with a class A JFET design, offering up to +17 dB of pure, clean volume boost. The additional BASS and TREBLE control options provide flexibility in achieving the desired tone without altering the original characteristics. The pedal is suitable for adding thickness, adjusting brightness, modifying low frequency, and adding overtones. It is recommended for use at the end of the effects signal chain to prevent sound loss caused by excessively long signal cables.
