VoiceTone E1

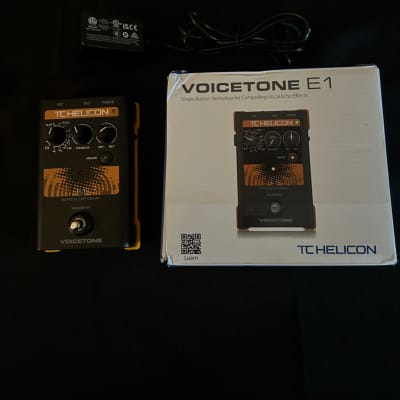

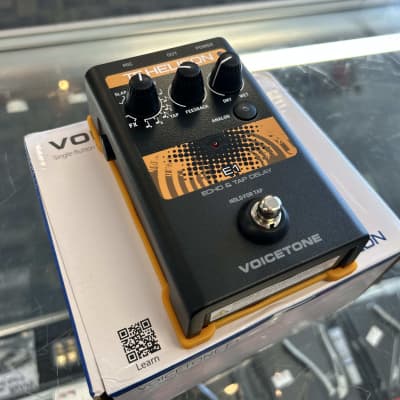

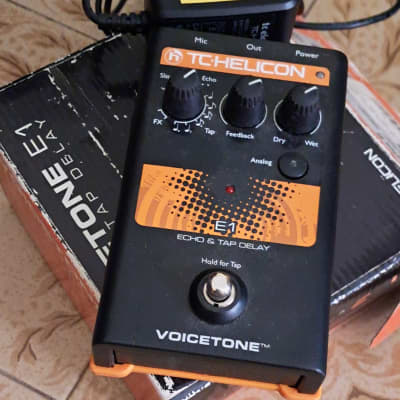

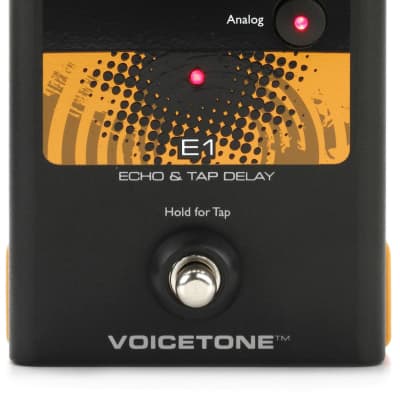

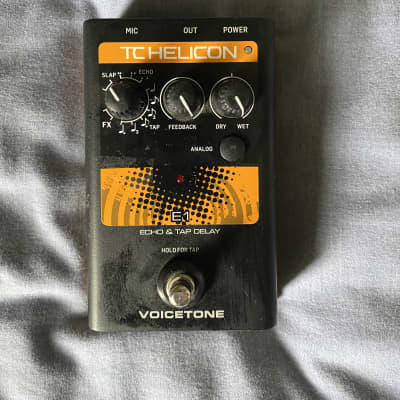

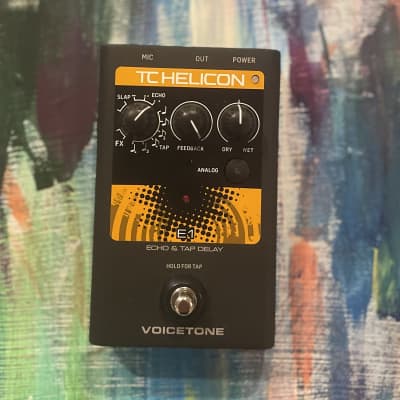

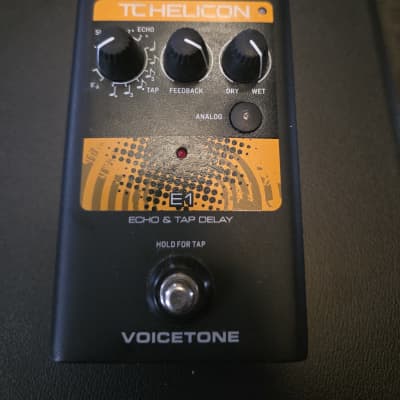

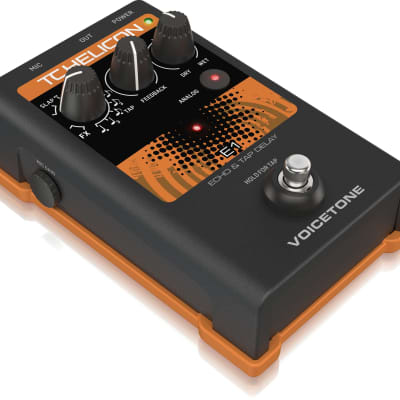

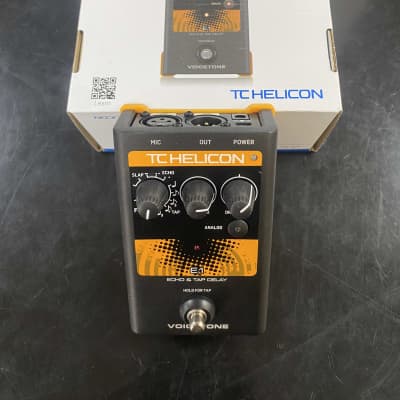

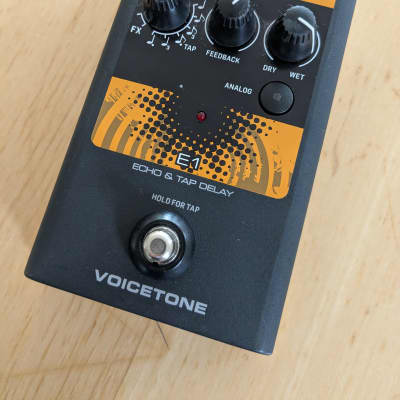

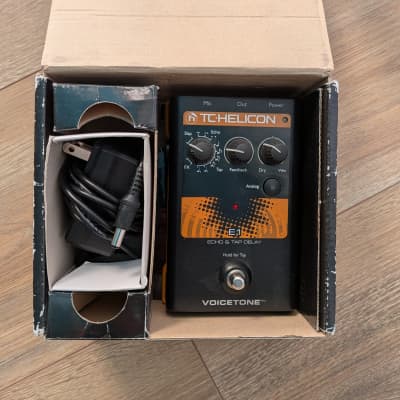

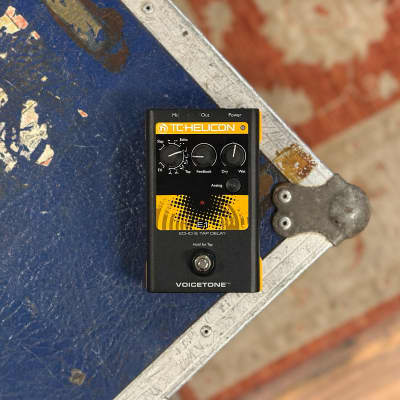

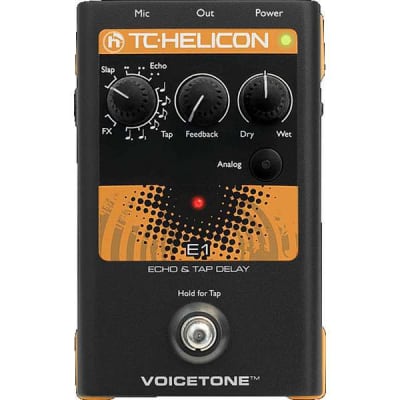

The TC-Helicon VoiceTone E1 is a vocal echo and delay pedal designed to provide compelling vocal effects. It offers 13 preset echo styles, ranging from classic slapback to modern effects. The pedal features a single-button stompbox design, making it easy to use and control during live performances or studio recording sessions.

Technical Specifications:
- Construction: Two-part die-cast metal with a rubberized base
- Analog Inputs: Balanced XLR
- Mic Input Level @ 0 dBFS: -42dBu to +1dBu
- EIN @ Max Mic Gain Rg = 150 Ohm: -126 dBu
- Mic Input SNR: >104 dB
- Analog Outputs: Output Impedance, Balanced/Unbalanced: 200/100 Ohm
- Output Full Scale: +1 dBu
- Dynamic Range: >104 dB, 20 Hz to 20 kHz
- Frequency Response: +0/-0.3 dB, 20 Hz to 20 kHz
- Control: USB for firmware and control, Mic Control using TC-Helicon MP-75
- Power Supply: 12V, 0.4A
- Power Consumption: 5.6W
- Safety: EMC – Complies with EN 55103-1 and EN 55103-2, FCC part 15, Class B, CISPR 22, Class B. Safety – certified to IEC 65, EN 60065, UL6500, and CSA IEC 65, EN 60065, UL6500, and CSA
- Operating Requirements: Operating Temperature: 32°F to 122°F (0°C to 50°C), Storage Temperature: -22°F to 167°F (-30°C to 70°C), Humidity: Max. 90% non- condensing
- Dimensions (WxHxD): 3.5 x 5.4 x 2.3″ (90 x 140 x 60mm)
- Weight: 0.92 lb. (0.42 kg)

The VoiceTone E1 pedal is roadworthy and built to withstand the rigors of live performances. It can be chained to additional VoiceTone Singles and offers remote on/off functionality via the optional TC-Helicon MP-75 microphone. Additionally, the pedal provides phantom power and can be controlled and updated via USB.

The VoiceTone E1 is suitable for vocalists looking to add echo and delay effects to their performances, whether they aim to recreate classic vocal sounds or create their own unique effects.
