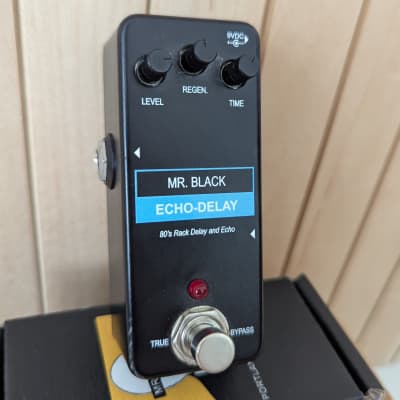

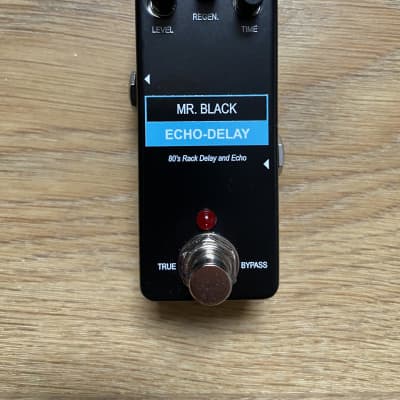

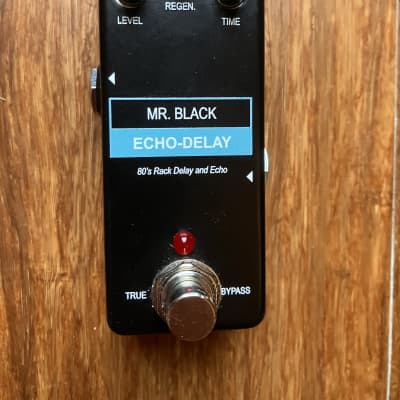

Mini Echo-Delay

The Mini Echo-Delay by Mr. Black is a compact and versatile pedal designed to replicate the lush, clear echo tone produced by digital rack delay units of the 1980s. It includes gentle and dynamic modulation that enhances the rhythmic shimmering movement characteristic of those units. The pedal features self-cancelling oscillation on bypass and offers a delay time ranging from 80ms to 860ms.

Technical Specifications:
- True-Bypass
- Input Impedance: ~500KΩ
- Output Impedance: ~2KΩ
- Current Draw: <60mA
- 9VDC 2.1mm negative center-pin power
- Dimensions: 1.85"W x 3.7"L x 1.8"H (47mm x 94mm x 46mm)
- Weight: 12 oz (340g)

The controls on the Mini Echo-Delay include:
- Level (Echo volume level)
- Regen (Echo regeneration/repeats)
- Time (Echo time adjustment from 80ms to 860ms)

This pedal is handmade and built to last in Portland, Oregon, using premium parts for superior tone and years of dependable service. It is designed to be pedalboard-friendly and offers a compact footprint for easy integration into pedal setups.

The Mini Echo-Delay is a versatile tool for musicians seeking clear, clean repeats and rhythmic modulation effects, making it suitable for a wide range of musical styles and applications.
