Broken

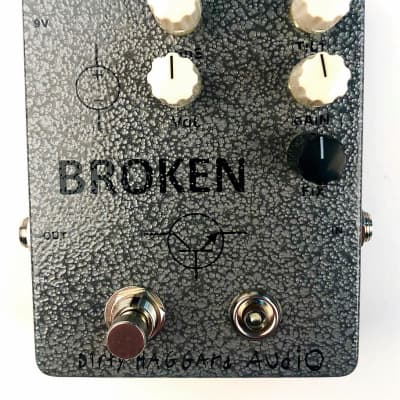

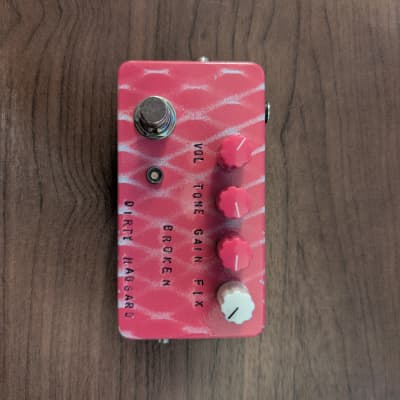

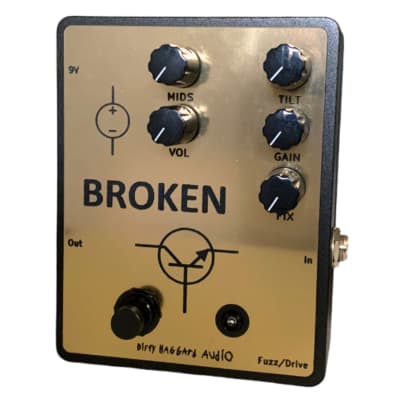

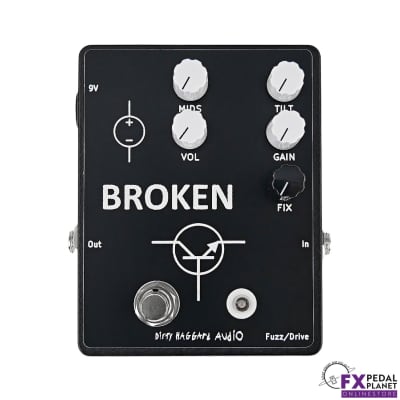

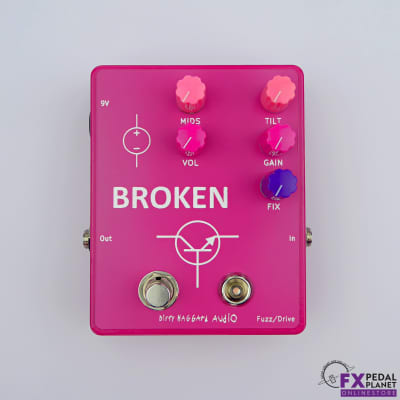

The Dirty Haggard Audio Broken is a fuzz pedal designed to create new sonic textures. It features versatile controls, including volume, gain, fix, tilt, and mid, providing guitarists and bass players with the power to shape their tone precisely to their liking. The tilt control discriminates against either bass or treble frequencies, while the mid control offers options for sculpting the sound with choices for scooped, flattened, or boosted midrange frequencies. The fix control acts like a noise gate or bias control, offering a spectrum of sound from minimum to ten o'clock, and turning it up beyond ten o'clock allows users to witness the Dirty Haggard Audio Broken signal 'break up'.

The pedal features a DC ripple filter and two-stage RF filtering at the signal input, providing gating functionality and clever noise suppression for an overall clean and powerful performance. It has a 1 Meg input impedance, 10k output impedance, and is powered by a 9Volt DC supply (no battery compartment inside).

The technical specifications include:
- Crafted using premium components for durability and peak performance
- 1 Meg input impedance, 10k output impedance
- 9V center negative compatibility
- Battery operation is not supported
- Current Consumption: 2 mA bypass, 3 mA engaged
- Enclosure Dimensions: Length 118 mm / 4.6 in, Width 92 mm / 3.6 in, Height 34 mm / 1.3 in
- Weight: 297 g / 0.685 lbs

The Broken fuzz pedal is known for its heavy and unique fuzz tones, mellow overdrive to heavy fuzz transition, and versatile controls for precise sound shaping.
