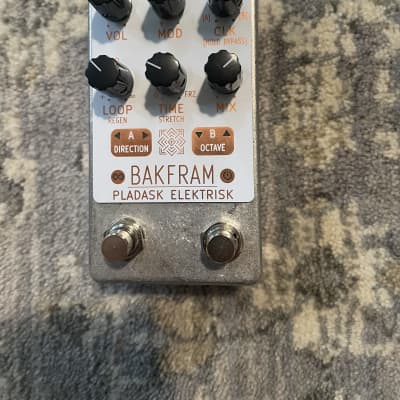

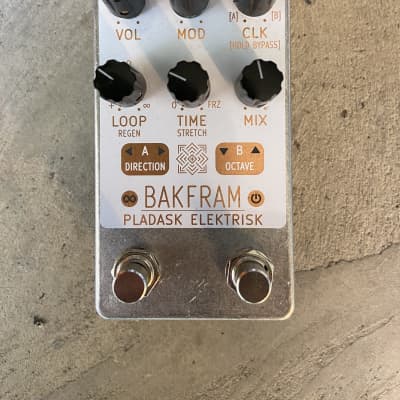

BAKFRAM

The BAKFRAM is a granular synthesizer masquerading as a forward and reverse delay. It offers the following technical specifications:

- Voltage: 9VDC center negative. No battery operation.
- Current: 150mA
- Input Impedance: 1MΩ
- Output Impedance: < 1kΩ
- Size: 125 x 66 x 60 mm

The BAKFRAM features various controls and parameters, including VOL (Master volume), MIX (Analog dry/wet mixer), MOD (Random frequency modulation depth), TIME (Delay time and timestretch parameter), CLK (Digital signal processor system clock frequency), LOOP (Decay parameter), and more. These controls allow for dynamic manipulation of the audio signal, including granular delay, time-stretching, pitch-shifting, LoFi filtering, and reverse delay/looping effects.

The pedal also includes footswitches and toggle switches for additional control over parameters such as looping feedback, direction of the effect (reverse, shuffling, forward), and octave pitch shifting.

The BAKFRAM is designed to provide a wide range of granular synthesis and delay effects, making it suitable for experimental sound manipulation, ambient music creation, and unique sonic exploration.
