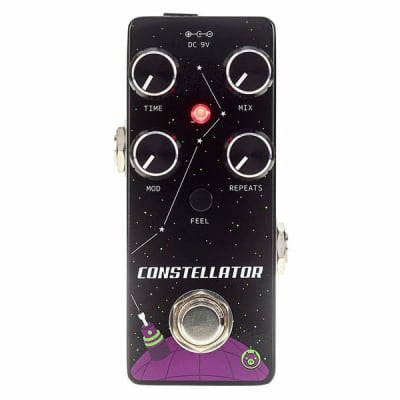

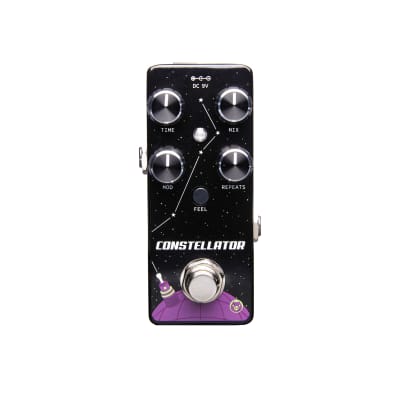

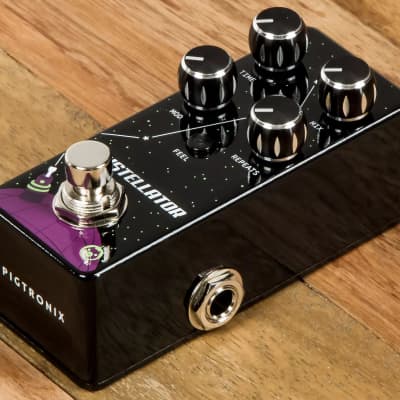

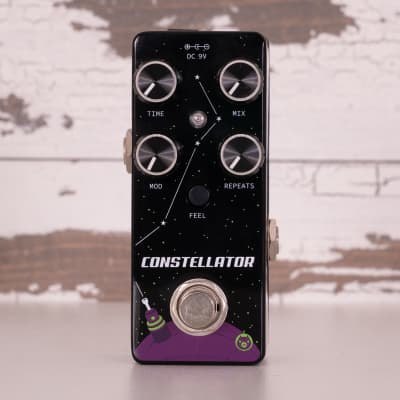

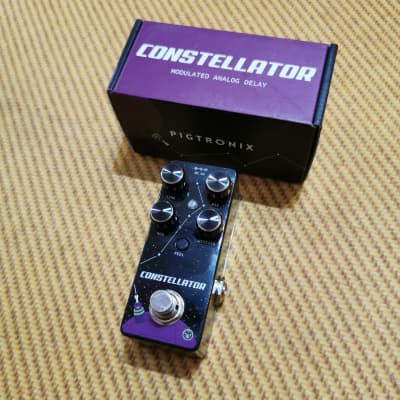

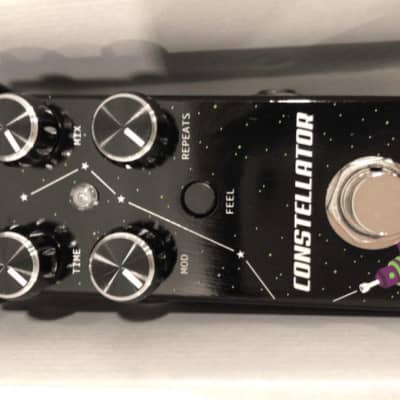

The Pigtronix Constellator is an all-analog delay pedal designed to produce up to 600ms of lush echo with adjustable modulation and a comprehensive sound palette. It features MN3005 bucket brigade chips, providing superior overall headroom and tape-like saturation when pushed to the limit.
Technical Specifications:
- Pedal Type: Analog Delay
- Max Delay Time: 600ms
- Inputs: 1 x 1/4"
- Outputs: 1 x 1/4"
- Bypass Switching: Buffered
- Voltage: 9VDC
- Current Draw: 100mA
- Input Impedance: 10M
- Output Impedance: 150ohms
- Length: 1.5"
- Width: 3.75"
- Height: 1.75"
- Weight: 0.5 lbs
Controls:
- Time: Sets the delay time
- Mix: Controls the dry/wet balance
- Mod: Adjusts the modulation depth, adding color and warp
- Repeats: Sets the amount of feedback in the delay line
- Feel: Selects between two distinct modulation types (chorus or vibrato)
The Constellator's pair of analog delay chips are new production replicas of the Panasonic MN3005 Bucket Brigade Devices (BBD), offering the longest possible delay time and most available headroom in an analog delay.
Use-Cases:
The Constellator can be used to create percussive slapback, doubler sounds,
chorused-out long delays with endless repeats, and shimmering delay lines with
crystalline overtones. It is suitable for guitarists and musicians seeking
versatile analog delay effects with high-quality sound and modulation options.
The pedal's adjustable modulation, self-oscillation capability, and versatile sound palette make it a valuable addition to any musician's effects arsenal, providing a wide range of creative possibilities for live performances and studio recordings.
Watch the latest video demos and reviews for the Constellator from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

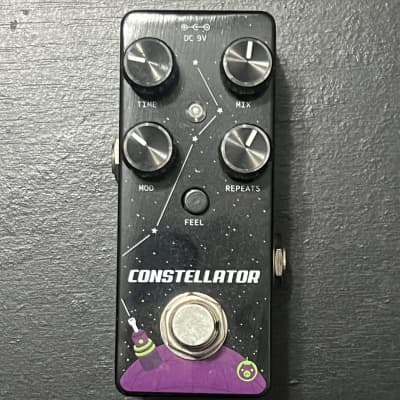

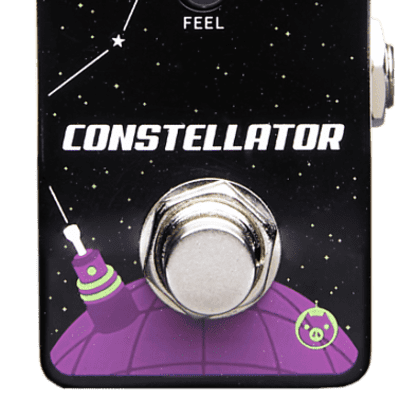

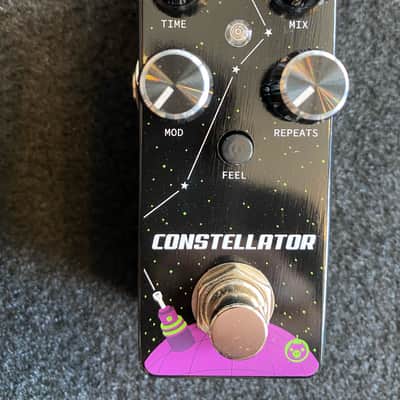

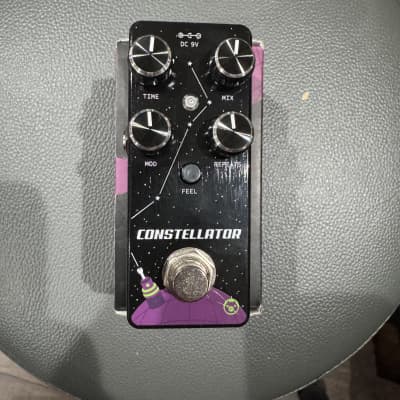

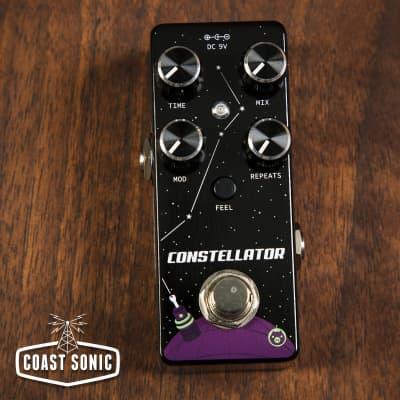

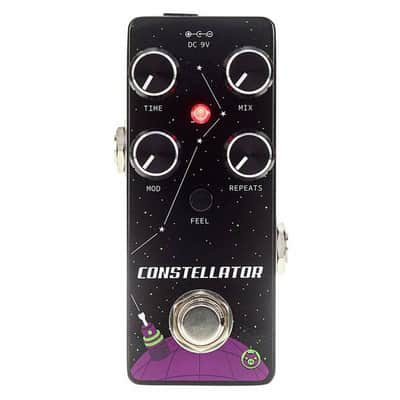

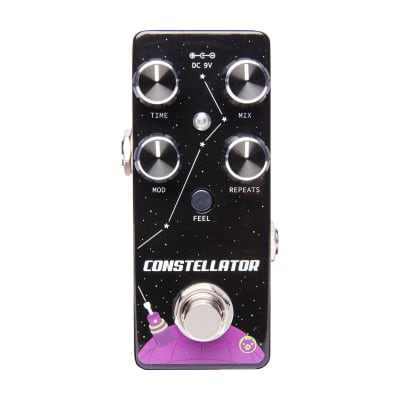

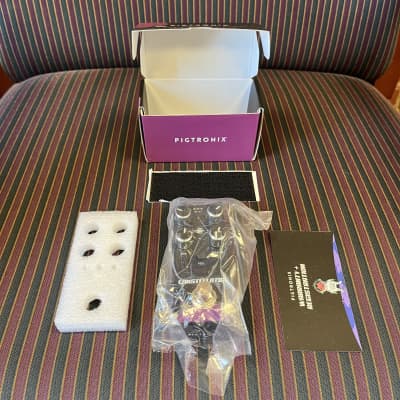

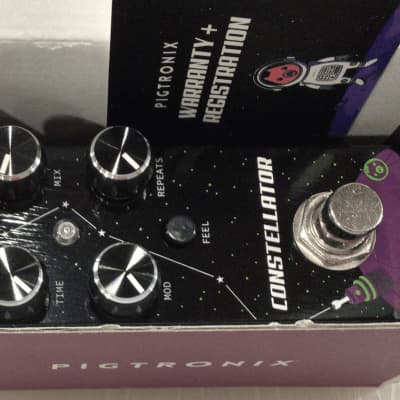

Below are live Reverb listings for the Pigtronix Constellator from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.
Brand New
$230.55
Brand New
$117
Brand New
$179.97
Brand New
$174.06

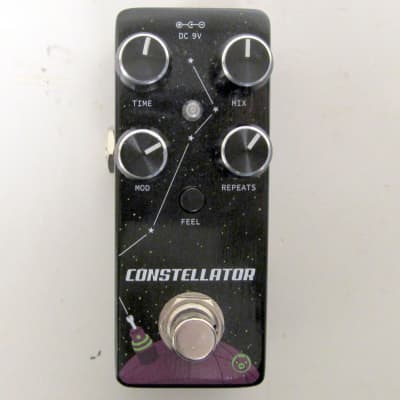

Excellent
$75
Brand New
$171.33
Brand New
$156.99

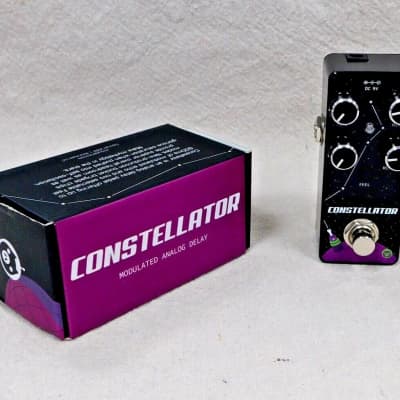

Browse through eBay listings for the Constellator compiled in real-time. From vintage finds to brand-new units, see a variety of purchasing options. This automated collection helps you explore deals and find the right pedal at the right price.
