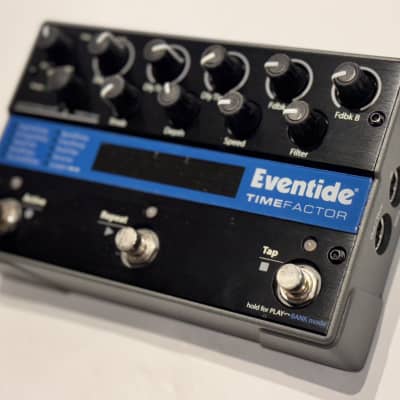

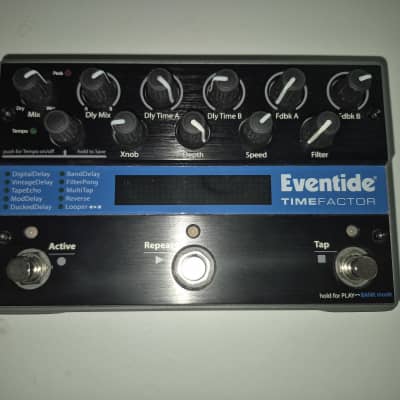

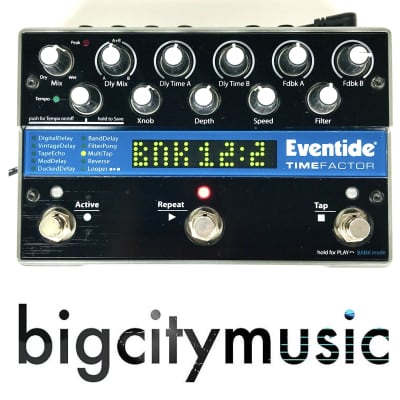

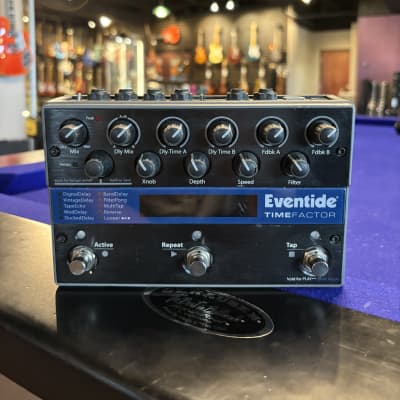

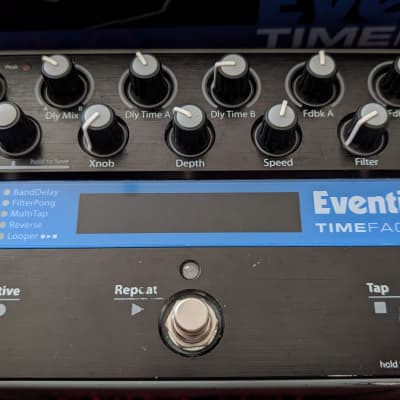

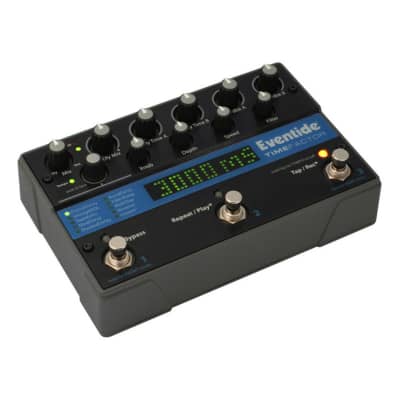

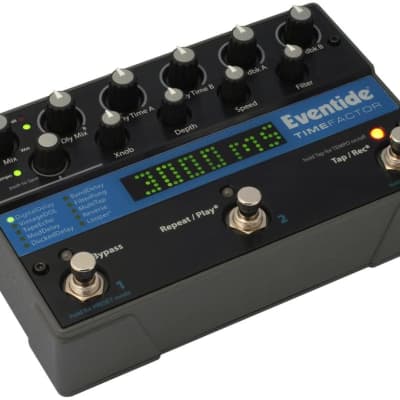

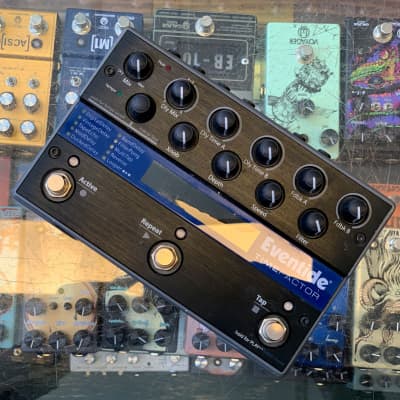

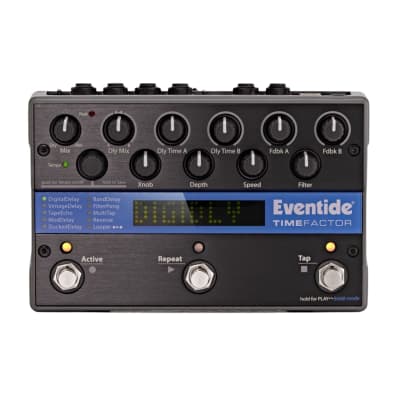

TimeFactor

The Eventide TimeFactor is a comprehensive dual delay pedal featuring 9 delay types with dedicated mix, time, and feedback controls for the two independent A and B lines. The delay types include Digital, Vintage, MultiTap, Reverse, Mod, Tape, Ducked, Filter Pong, and Band Delay. It also includes a Looper with variable speed and loop head/tail editing.

Key Features:
- 100 factory presets
- Selectable bypass (true or buffered)
- Selectable mute and reverb tails
- Flexible routing (pre/post, wet/dry, stereo/mono)
- 5-pin MIDI in and out/thru
- USB for MIDI control, software updates, and new features
- Dedicated tap tempo with MIDI clock support
- Expression pedal/CV control input
- Auxiliary switch support with momentary or toggle function
- Dedicated performance switch for extra control
- Instrument or line-level input; line or amp-level output
- H9 Control editor/librarian/control software capability

Specifications:
- Connectors: Analog I/O
- Input 1 (mono): ¼ inch mono phone jack
- Input 2: ¼ inch mono phone jack
- Output 1 (mono): ¼ inch mono phone jack
- Output 2: ¼ inch mono phone jack
- Expression Pedal: ¼ inch mono phone jack
- Aux Switch: ¼ inch mono phone jack
- USB: Type B Socket. Use 2.0 cables only
- MIDI In: Five pin DIN (Female)
- MIDI Out/Thru: Five pin DIN (Female)
- AC Adapter Jack: US Power Supply included
- Input Impedance: 500K ohms
- Output Impedance: 470 ohms
- Recommended Load Impedance: 10K ohms or greater
- Power: 9V DC 500mA, Center positive (+), 5.5mm/2.5mm jack
- Dimensions: 4.8″ (H) x 7.5″ (W) x 2.12″ (D) / 122 (H) x 190 (W) x 54 (D) mm
- Warranty: One year warranty for all Eventide hardware products

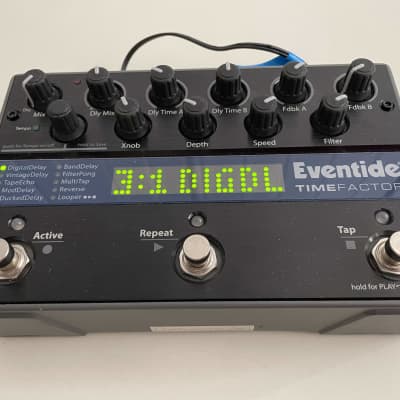

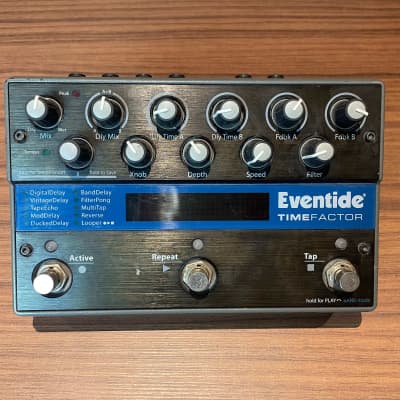

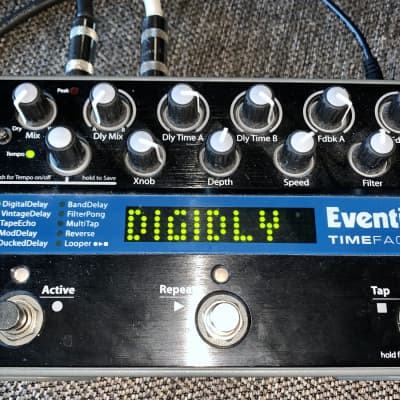

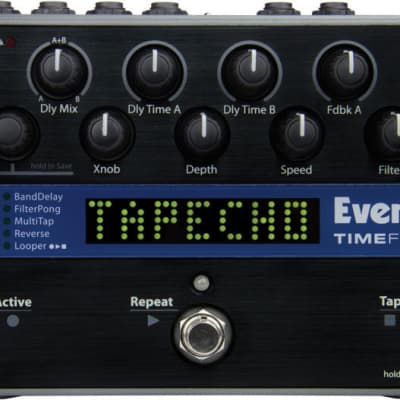

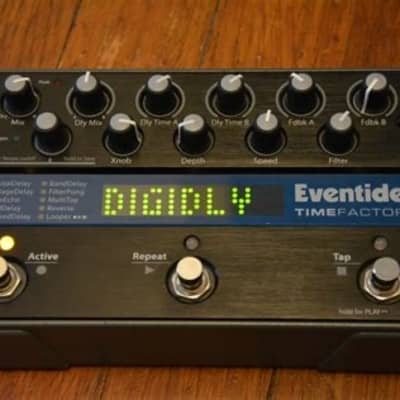

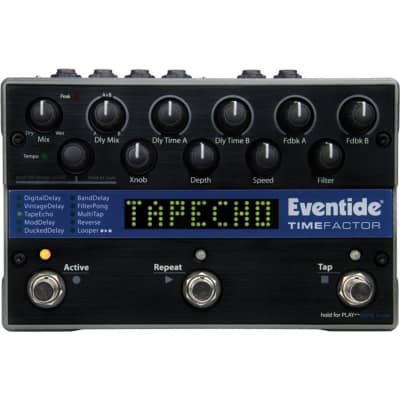

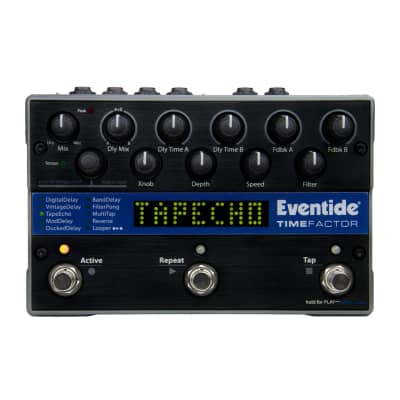

The TimeFactor pedal is designed with a rugged cast metal construction and metal footswitches for instant preset access. It can operate in mono or stereo and is suitable for guitar or line-level inputs and outputs.
