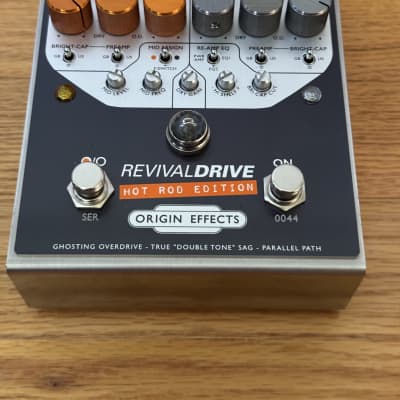

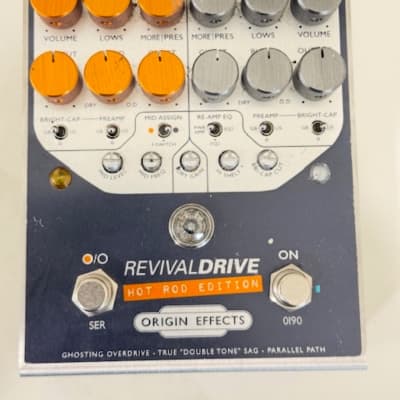

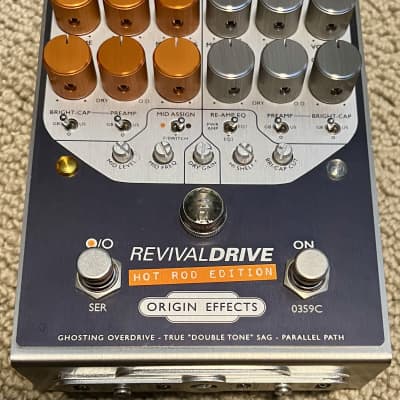

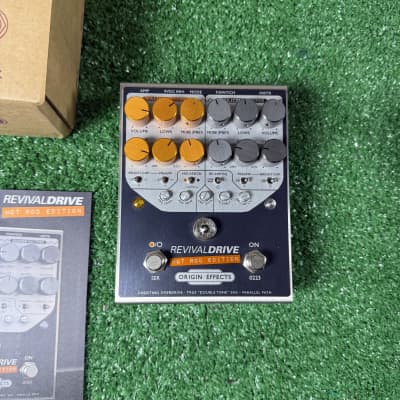

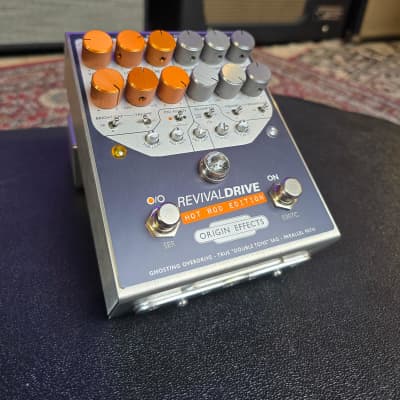

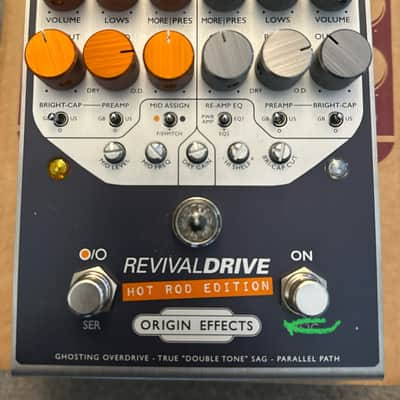

RevivalDRIVE Hot Rod

The RevivalDRIVE Hot Rod by Origin Effects is a high-gain overdrive pedal designed to deliver aggressive tones suitable for lead, chords, and palm-muted riffs. It features two channels, each with a selectable valve or silicon rectifier, and a range of controls to modify the overdriven tone. The pedal is designed to replicate the signal path of a vintage valve amp, including the preamp, phase inverter, power amp, and rectifier stages, as well as a synthesized mains power signal for an authentic amp-like response.

Key Features:
- Two channels of aggressive high-gain tone
- Selectable valve or silicon rectifier for each channel
- Intuitive controls for adjusting overdriven tone and response
- Mid boost control for modifying overdriven tone or providing a solo boost
- Blend control for adjusting the mix between the dry input signal and the overdriven signal
- Ghost control for introducing "ghost tones" by varying the amount of capacitance in the pedal's virtual amp-style power supply
- Re-amp EQ controls for compatibility with a wide range of amplifiers

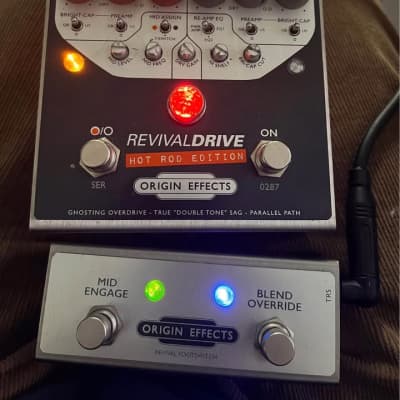

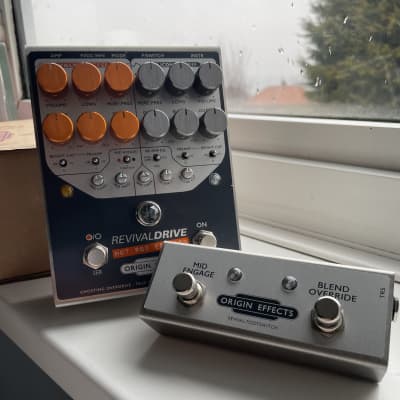

- Optional footswitch for remotely triggering the mid boost or blend override features
- DIP switches for extra bypass and channel options
- Simulated mains power supply frequency switch for altering the character of the ghost tones produced

Physical Specifications:
- Weight: 620 g (1.37 lb)
- Dimensions: 143 x 66 x 65 mm (5.62 x 2.6 x 2.56 in) L x W x H - Includes knobs and switches

Power Requirements:
- 9VDC, >120mA power supply with 2.1mm center-negative barrel connector
- Internal voltage boosting for optimized headroom
- Isolated, regulated, linear power supply recommended for minimizing power- related noise and avoiding damage from voltage surges and over-voltage conditions

The pedal also includes a comprehensive owner's manual detailing its features, controls, and suggested settings for achieving specific tones.
