NOD-1 Horseman

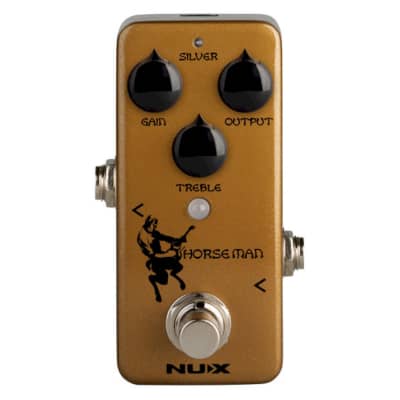

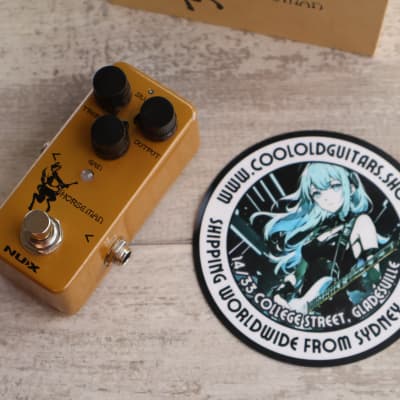

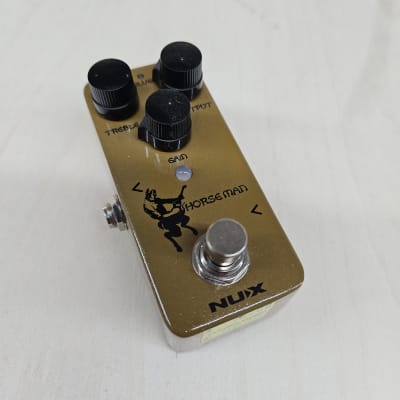

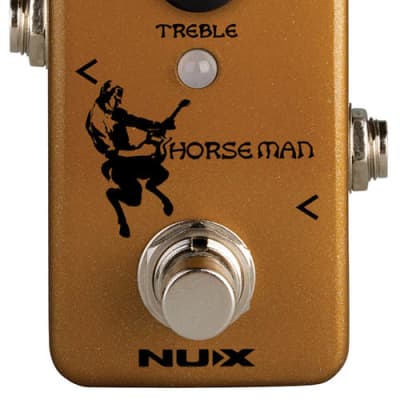

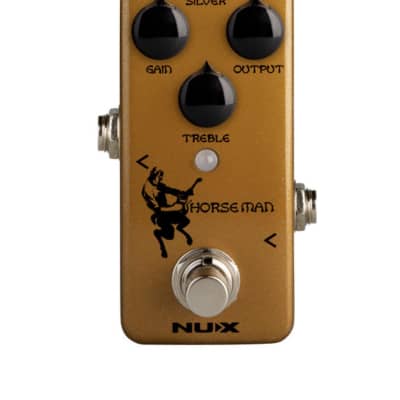

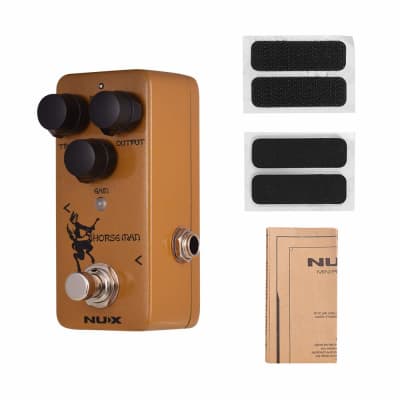

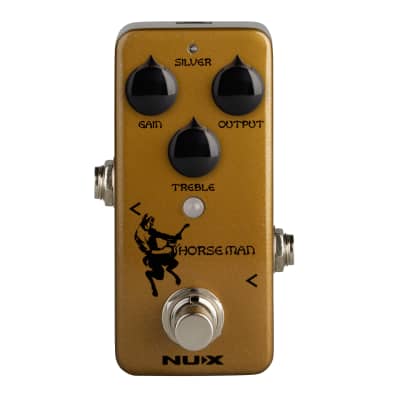

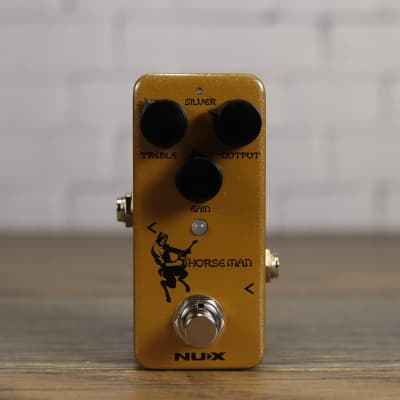

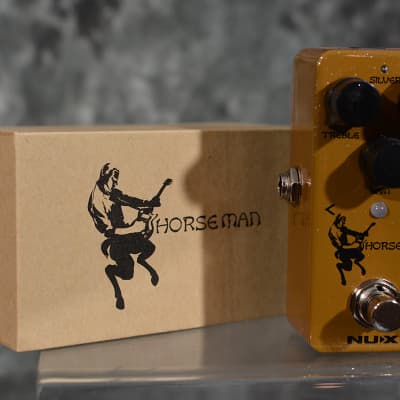

The NUX NOD-1 Horseman Overdrive pedal is a compact and versatile effects pedal designed for guitarists. It features two independent distortion sounds, Gold Mode and Silver Mode, offering transparent/clear overdrive and extended gain range, respectively. The pedal is crafted with an OP-AMP voltage converter circuit, providing access to higher harmonics and creating the signature sound. The pedal can also function as a clean boost with little to no gain dialed in.

Key Specifications:
- Input Impedance: 1MΩ
- Output Impedance: 10KΩ
- Working Current: 20mA
- Power: 9V center negative DC supply, 90mA current draw
- Dimensions: 94mm (L) x 53mm (W) x 51mm (H)
- Weight: 174g

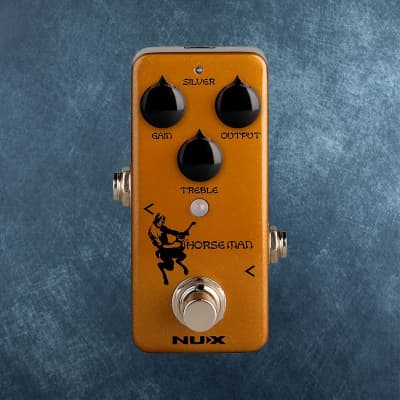

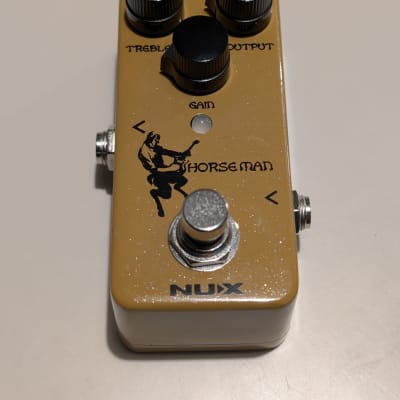

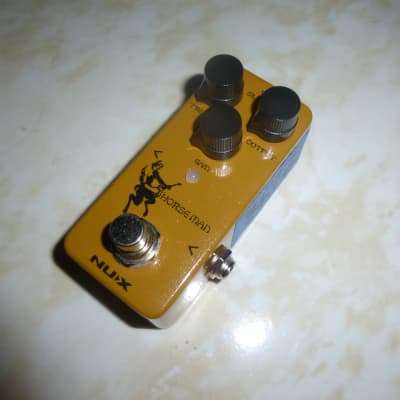

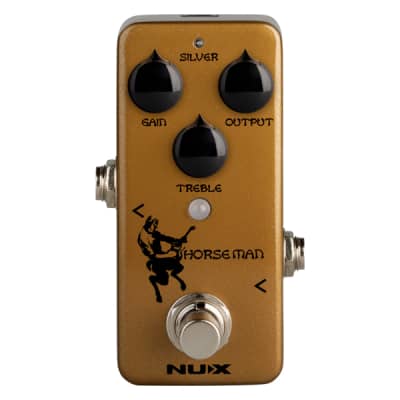

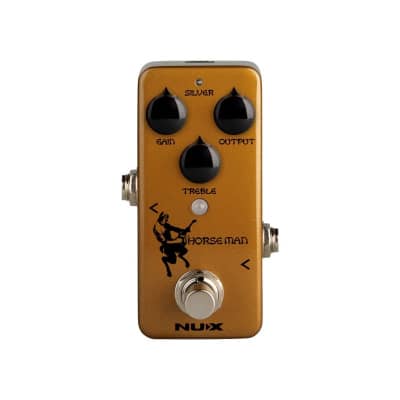

The pedal offers intuitive operation with controls for Gain, Treble, and Output, allowing users to adjust the intensity of the effect, tailor the brightness of the tone, and control the overall master volume. Additionally, it can run in either true bypass or buffered bypass mode, providing flexibility in signal routing.
