micro Vent 122

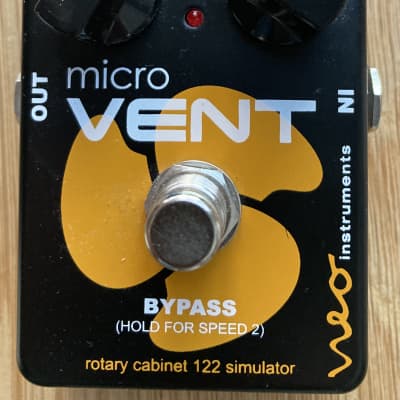

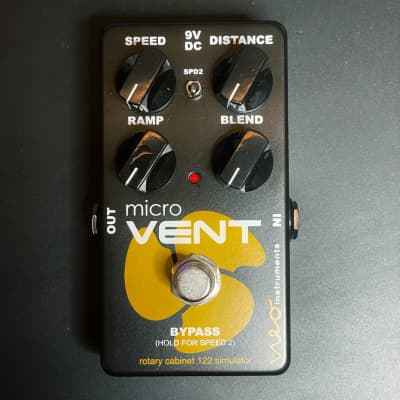

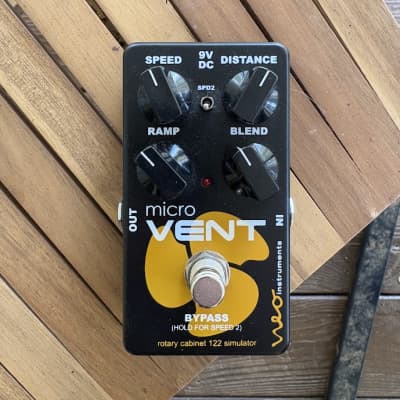

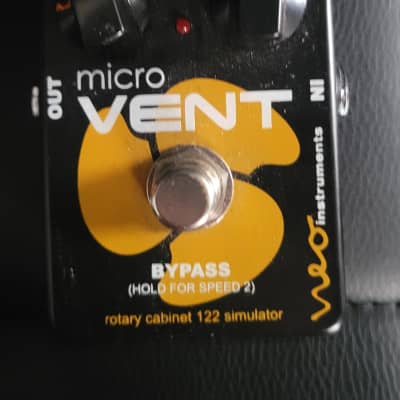

The Neo Instruments micro Vent 122 is a rotary speaker simulator pedal designed for guitar, bass, and keys. It features Leslie 122 emulation and is housed in a standard size stompbox enclosure. The pedal offers two selectable speeds, with Speed 1 being continuously adjustable from slow to fast, and Speed 2 featuring slow, stop, and fast settings. The micro Vent 122 also includes controls for Speed, Distance, Ramp, and Blend, allowing for versatile sound manipulation.

Key Technical Specifications:
- Signal Processing: 32 Bit SHARC DSP
- Analog Digital Conversion: 48kHz, 24 Bit
- Digital Analog Conversion: 48kHz, 24 Bit
- Noise Level: -90 dBA
- Max Input Level: +5 dBV
- Input Impedance: 0.5MOhm
- Output Impedance: 400 Ohms
- Recommended Load Impedance: 10 KOhms or more
- Dimensions: 11.3 x 6.5 x 4.7 cm (including knobs)
- Weight: 235g
- Current Draw: 180mA
- Power Supply: 9V DC, negative center, 180 mA (power supply sold separately)

The pedal also features a silent footswitch with 5 operating modes for bypass and speed select, and offers selectable buffered or true bypass. Additionally, it includes a variable microphone to rotors distance control and an analog blend circuit for mixing in the dry signal.

The micro Vent 122 is designed to provide a rich and complex rotary speaker sound, making it suitable for musicians seeking to achieve classic Leslie 122 rotary speaker effects in a compact and versatile pedal format.
