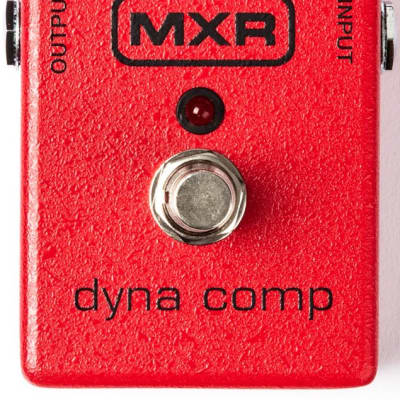

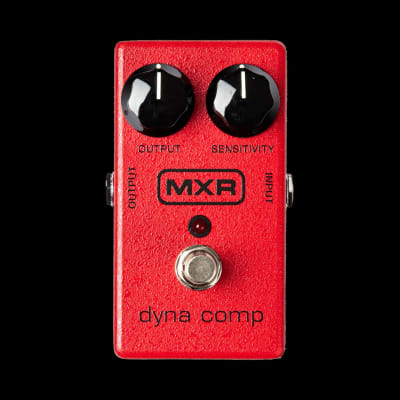

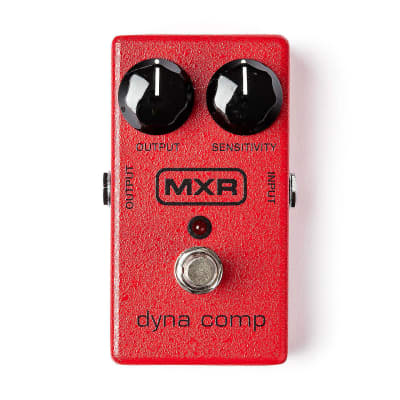

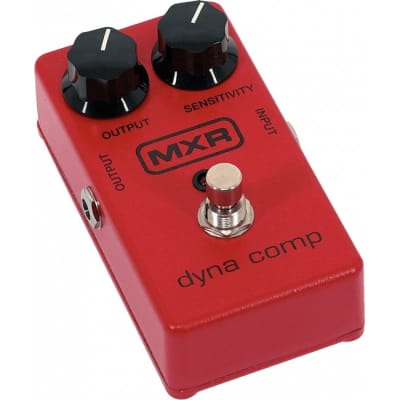

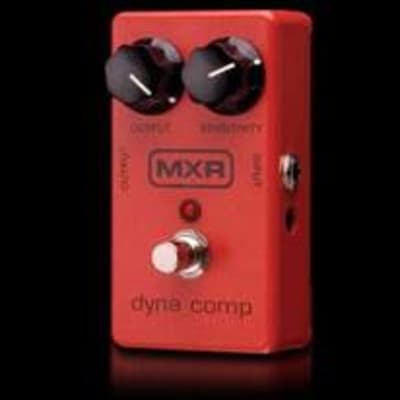

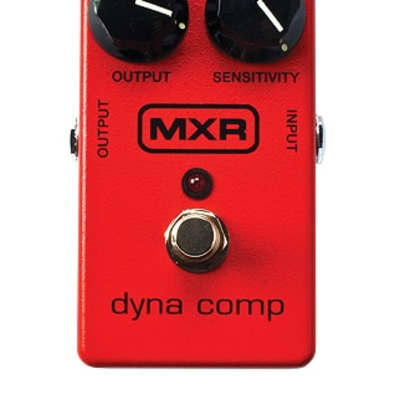

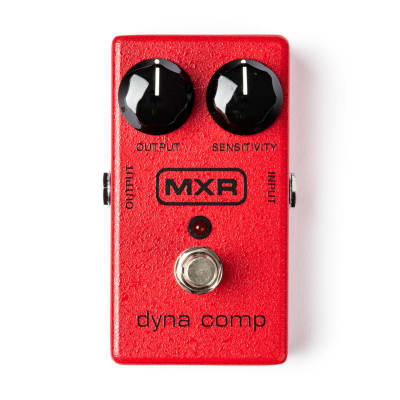

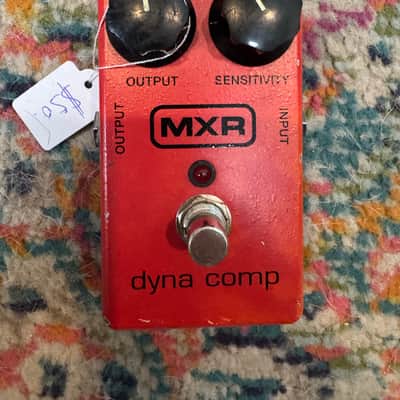

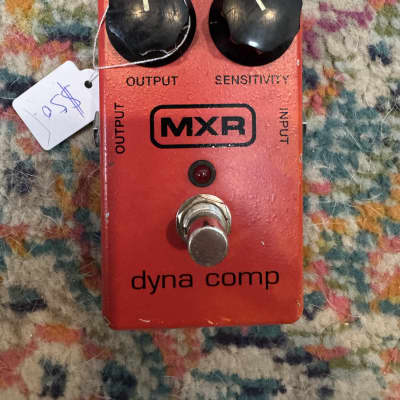

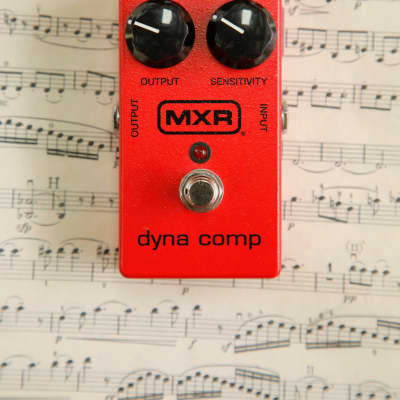

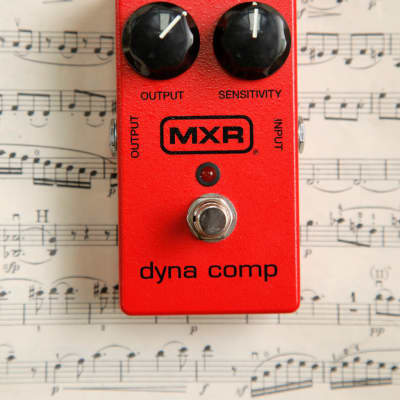

M102 Dyna Comp

The MXR M102 Dyna Comp compressor pedal is a highly regarded piece of equipment with a rich heritage dating back to the early 70s. It is known for its ability to tighten up signals, add rich sustain, and create percussive and clicky sounds that have been heard on numerous hit records. The pedal's straightforward and easy-to-use design has made it a secret weapon on countless pedalboards for decades.

Significant Features:
- In-line compressor that "evens out" the signal
- Especially useful for increased sustain with stable dynamics
- Nashville studio standard
- Heavy-duty housing with durable jacks and switches for long-term use

Technical Specifications:
- Model: M102
- Input Impedance: 1 MΩ
- Output Impedance: 10 kΩ
- Nominal Input Level: -5 dBV
- Nominal Output Level: -12 dBV
- Noise Floor: 95 dBV
- T.H.D: 0.2% Typ. at -20 dBV, 1 kHz
- Max Compression: 36 dB
- Attack Time: 5 ms
- Release Time: 1 s
- Bypass: True Hardwire
- Current Draw: 3.3 mA
- Power Supply: 9 volts DC

The pedal can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies (not included).
