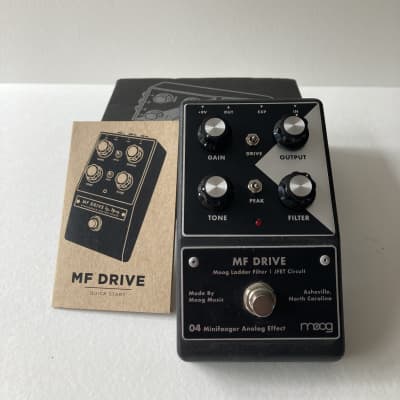

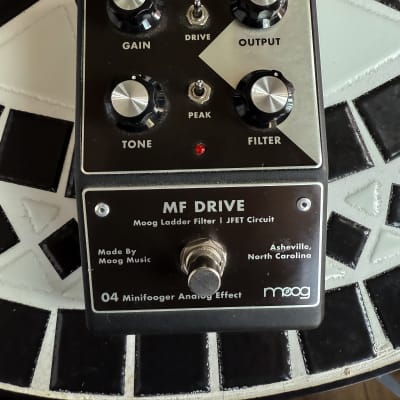

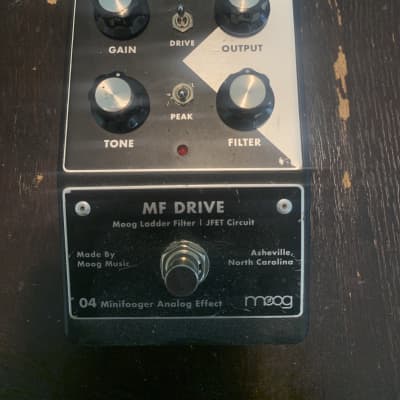

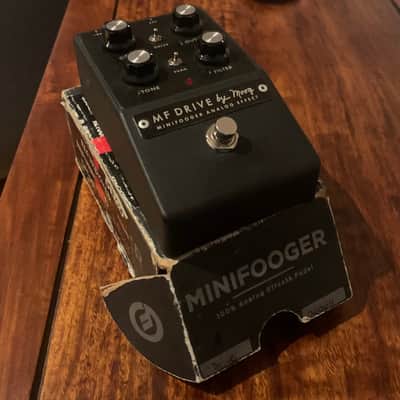

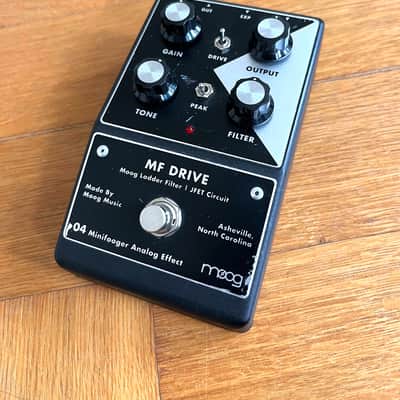

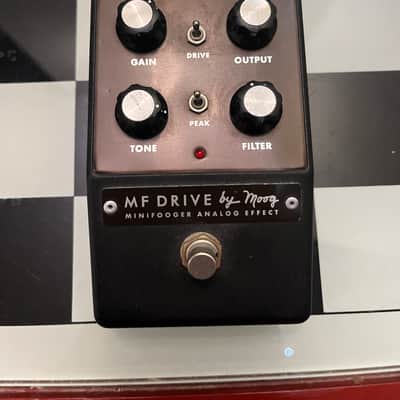

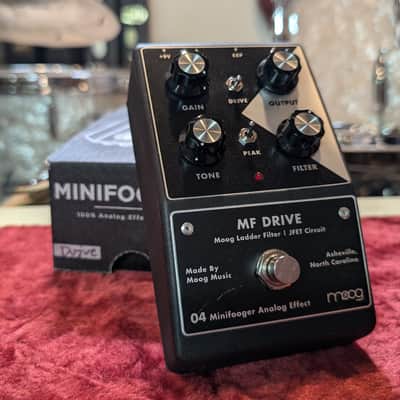

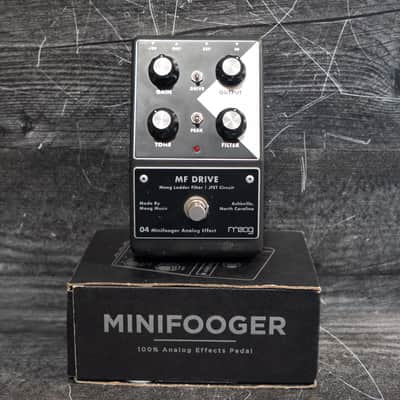

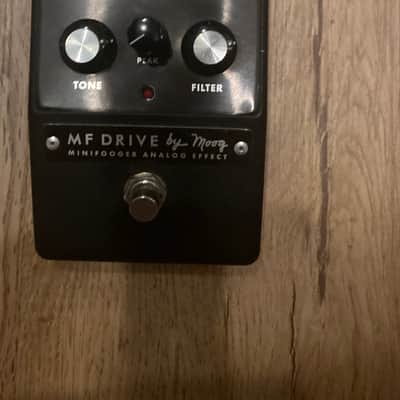

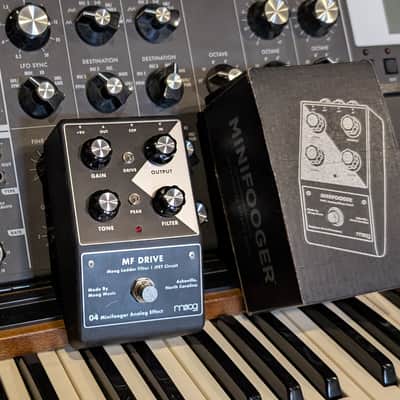

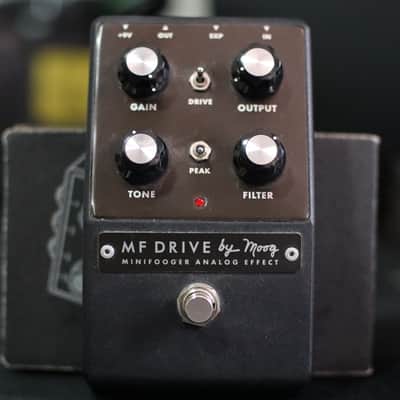

Minifooger Drive

The Minifooger Drive by Moog is a filter-based overdrive pedal designed to provide a range of tones from creamy British overdrive to cranked American- style tube amp sounds and fuzz tones. It features a 100% analog signal path and true bypass. The pedal operates on 9 VDC power and has a current draw of 10 mA.

Key Specifications:
- Drive: Down: +6.8 to +48 dB gain, Up: +16 to +57 dB gain
- Peak Level: +15 dB resonance peak at the filter cutoff frequency
- Tone Control: Low-pass -6 dB at 1 kHz (center), -6 dB scoop at 800 Hz (maximum); High-pass -6 dB at 1 kHz (-18 dB shelf)
- Filter: Ladder Filter - 2-pole 12 dB/octave 100 Hz to 17.5 kHz
- Expression Pedal: Controls Filter (maximum input level +5 VDC)
- Input Impedance: >1 MOhm
- Output Impedance: <500 ohms
- Enclosure: Cast aluminum
- Dimensions: 5.75 x 3.25 x 2.25" (14.4 x 8.3 x 5.8 cm)
- Weight: 18 oz (0.5 kg)

The Minifooger Drive is suitable for use with both guitars and bass guitars, offering a versatile and responsive overdrive effect with precise tone control.
