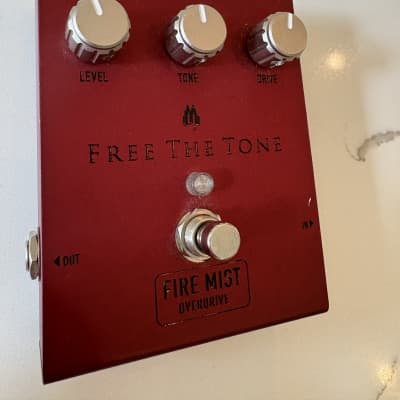

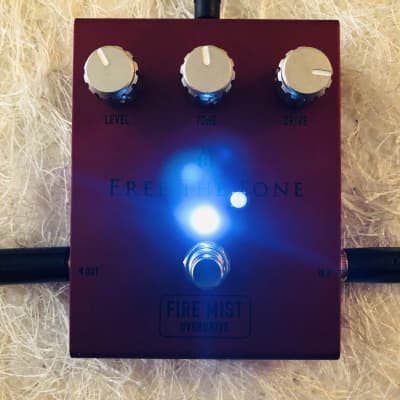

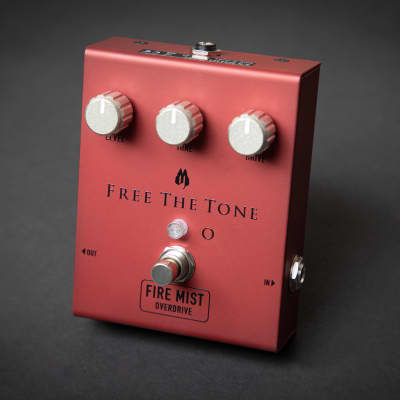

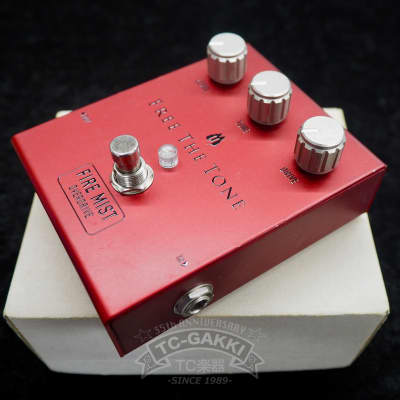

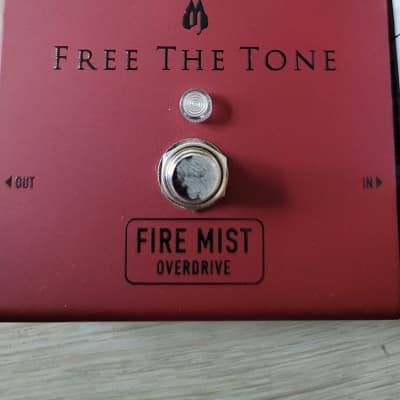

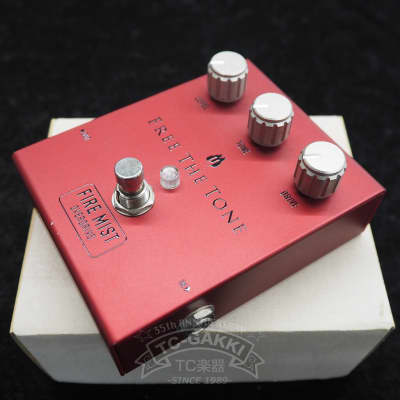

Fire Mist Overdrive

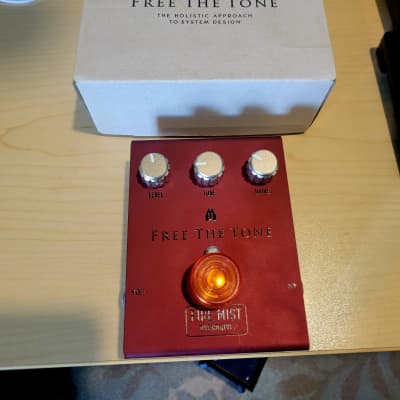

The Free the Tone Fire Mist Overdrive FM-1V is designed to deliver the best in British overdrive tones based on the fabled Plexi's, offering clean boost, subtle harmonic clip, and tight aggressive overdrive. The pedal is known for its realistic amp feel, extended dynamic range, brilliant overtones, long sustain, and quick but fat tone. Here are the technical specifications and features:

Specifications:
- Input impedance: min. 1MΩ
- Output load impedance: min. 10kΩ

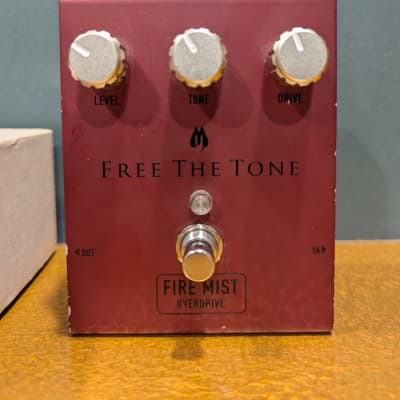

- Controls: LEVEL, TONE, DRIVE
- Terminals: 2× 1/4" phone jacks (for input and output), 1× DC9V input jack (for AC adapter)
- Power supply: 9-volt battery (PP3/006P), AC adapter
- Current consumption: approx. 10 mA
- Dimensions: 98W × 120D × 51H mm (incl. protuberances such as footswitches, jacks, etc. )
- Weight: approx. 640 g (excl. battery)

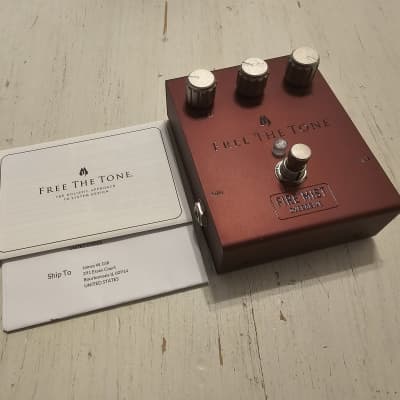

- Accessories: warranty card, manual, battery (PP3/006P), 4x rubber feet

Features:
- New HTS (Holistic Tonal Solution) Circuit: Brings out individual sound characteristics of your guitar and amplifier while providing impedance conversion and establishing both the ideal sound and low noise.
- FREE THE TONE Custom Knobs: Custom turned brass knobs reduce vibrations in the shaft and wiper of the semi-fixed resistor used for each control and suppress harmonic components that might adversely affect sound.
- Casing Design: The case dimensions and plate thickness are optimized to deliver the best sound.
- FREE THE TONE’s Unique IC Tone Plate: Metal plate for damping and shielding covers the top of an IC chip to make the most of the characteristics of the IC and to prevent noise contamination to the utmost.
- Passive Tone Circuit: Minimizes the phase shift in guitar signals.

The Fire Mist Overdrive FM-1V is known for its edgy, traditional British Rock sound with outstanding response, and it is designed to be highly harmonic and touch-sensitive.
