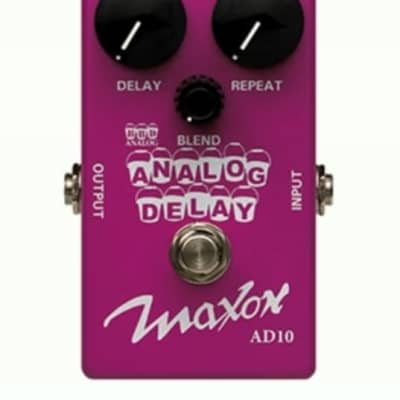

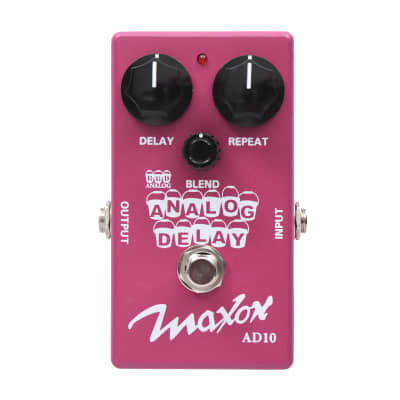

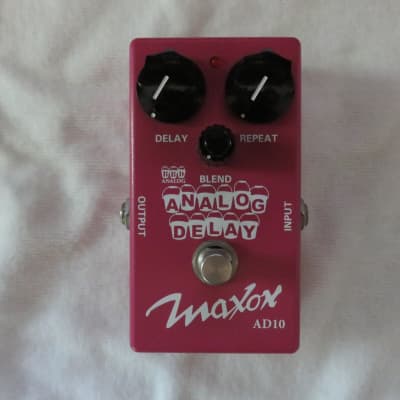

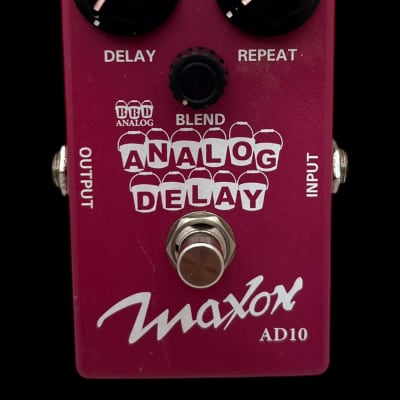

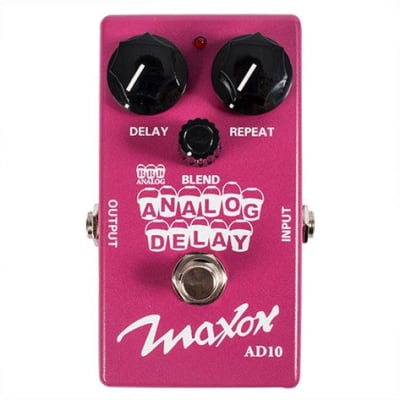

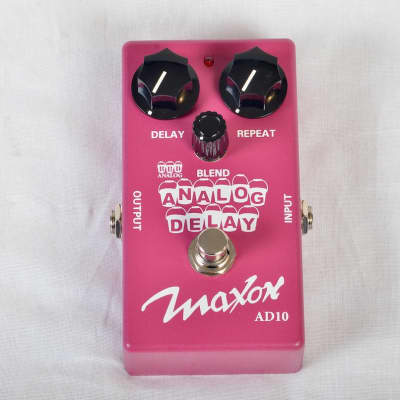

AD10

The Maxon AD10 Analog Delay is a 100% analog delay pedal with a delay time of up to 600 milliseconds. It features a warm, organic delay tone with special filtering on repeats to reduce distortion. The pedal is capable of self- oscillation effects and can work in the FX loop or front-end of an amp. The minimalist control interface makes it easy to dial in a variety of usable delay effects, including double-tracking, faux reverb, tight rhythm slapbacks, and longer delays for solos. The AD10 retains its distinctive sound even when stacked with overdrives and distortions.

Technical Specifications:
- Input Impedance: 500K Ohms
- Output Impedance: 10K Ohms

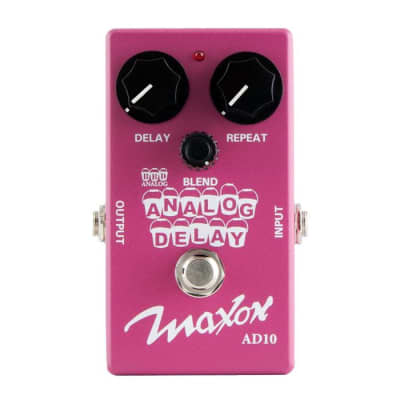

- Controls: DELAY, REPEAT, BLEND
- Switch: Bypass/Effect
- Indicator: Bypass/Effect LED
- Equivalent Input Noise: -95dBu or less (Input shorted, IHF-A weighted)
- Delay Time: 35mSec to 600mSec
- Power Supply: 6F22/6LF22 9V battery x 1 or Maxon AC adaptor
- Power Consumption: 30mA max. / 9VDC
- Battery Life:
- 9VDC manganese battery: 16.5 hours at 25°C (FUJITSU 6F22)
- 9VDC alkaline battery: 33.5 hours at 25°C (TOSHIBA 6LF22)
- Dimensions (whole): 70(W) x 113(D) x 56(H)mm (with protrusion)
- Weight: Approx. 330g (including battery)
- Accessory: 6F22 9V battery x 1, operating manual
