Flux-Five

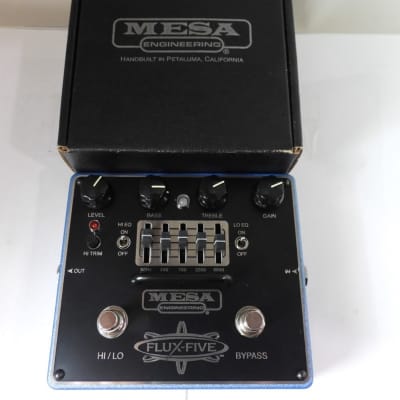

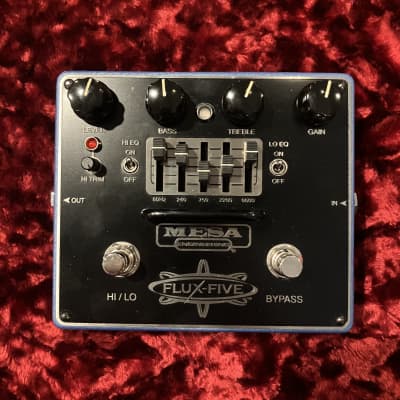

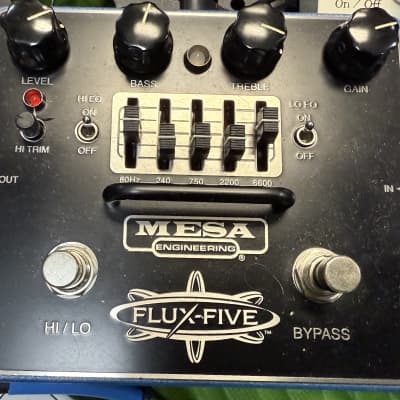

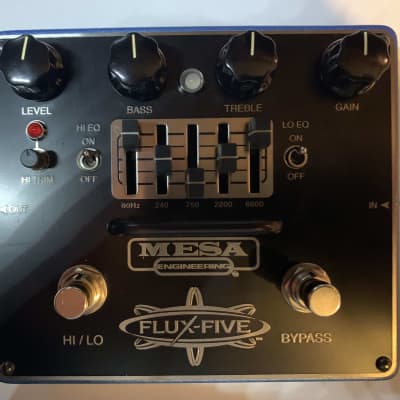

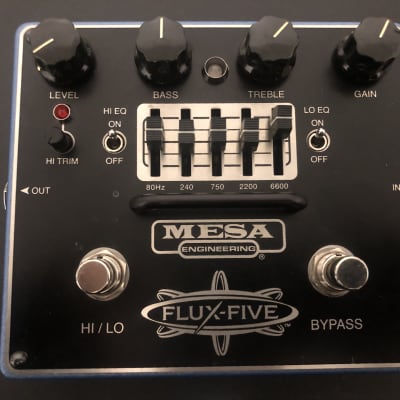

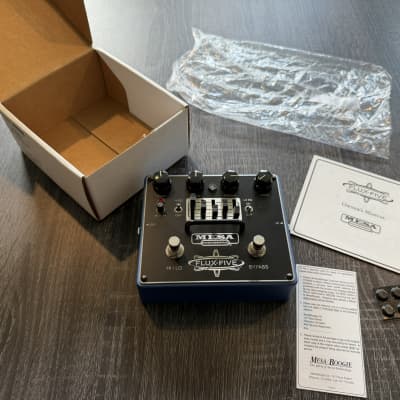

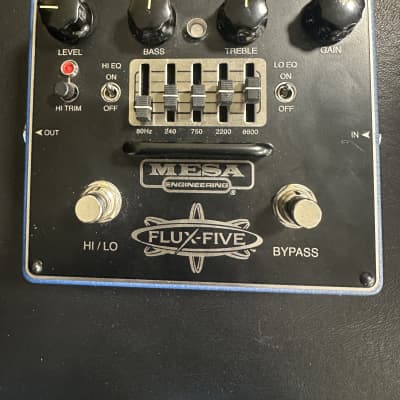

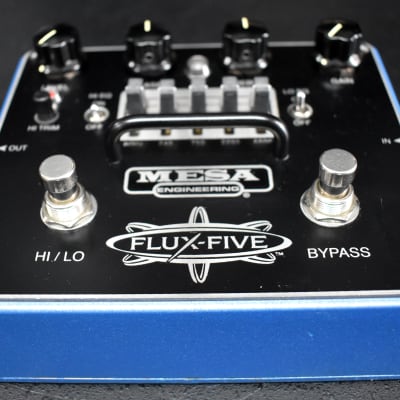

The Mesa Boogie Flux-Five is a dual-mode overdrive pedal featuring a classic 5-band graphic EQ. It is designed and handcrafted in Petaluma, California, USA. The pedal offers a True Bypass On/Off Footswitch to bypass all circuitry when off, ensuring no tonal loss. The HI/LO Footswitch provides instant access between HI and LO (Gain) Modes for greater musical versatility.

Key features and specifications include:
- Gain Control: Allows users to dial in the perfect amount of vocal- overdrive, from dynamic to sustaining.
- Bass & Treble Controls: Provide +/- 12dB of EQ boost or cut for exceptional overall tone shaping.
- 5-Band Graphic EQ: Provides auto-assignability to either Mode (HI or LO) via independent On/Off switches, offering +/- 12dB of boost or cut at 80Hz, 240Hz, 750Hz, 2.2Khz, and 6.6Khz.
- HI Trim Level Control: Provides an independent level boost when HI Mode is activated, with an LED indicator.
- Master Level Control: Offers an overall variable range of signal boost up to +20dB.
- On/Off Status LED: Features dual-color LEDs to indicate the active Mode (LO = Yellow / HI = Red).
- Power Options: Can be powered by a 9V battery or externally powered via an external power supply input jack.
- Dimensions: 5.78" x 4.76" x 2.30" (146.8mm x 121mm x 58.4mm)
- Weight: 1.7 lbs. (771g) with battery, 1.6 lbs. (725.7g) without battery
- True Bypass Switching
- Battery Type: 9VDC (one)
- Power Consumption (Current Draw): 9VDC/25mA
- Input Impedance: 1M Ohm (500k Ohm minimum)
- Output Impedance: 10k Ohm
