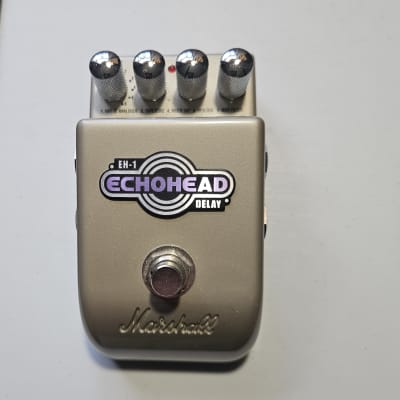

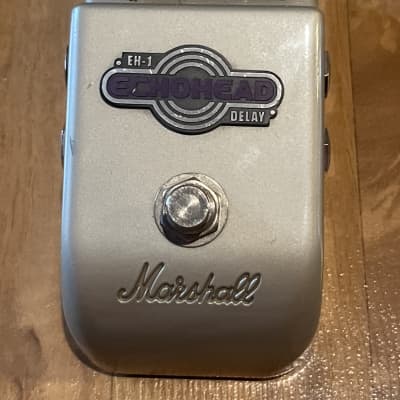

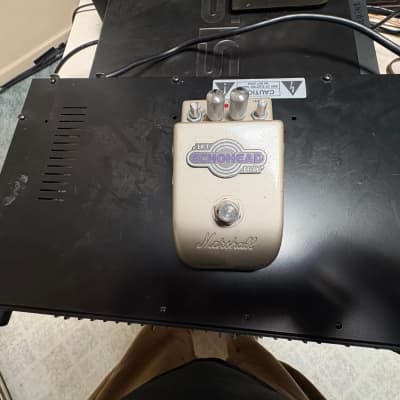

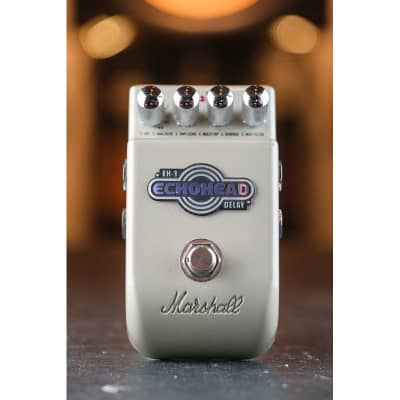

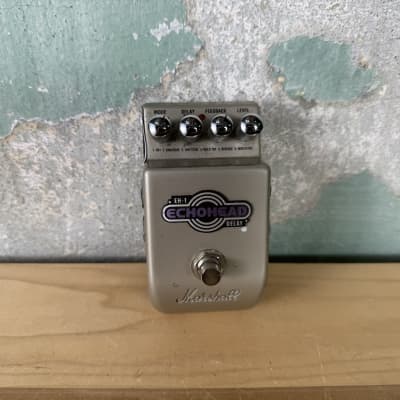

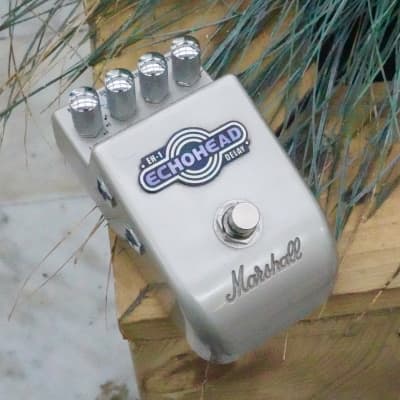

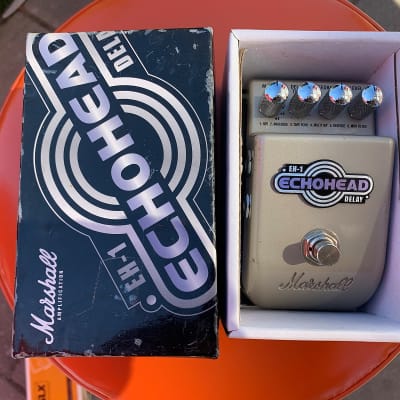

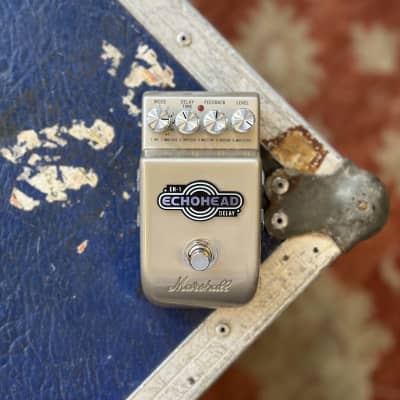

Echohead EH-1

The Marshall Echohead EH-1 is a stereo delay pedal offering a maximum delay time of 2000ms. It features six different delay modes, including Hi-Fi, Analogue, Tape Echo, Multi Tap, Reverse, and Mod Filter. The pedal provides full control over the delay time, feedback, and level for each mode.

Technical Specifications:
- Power: 9V DC Centre Negative Regulated
- Minimum Current Draw: 80mA
- Controls: Mode, Delay Time, Feedback, Level
- Switches: On/Off Switch
- Indicators: On/Off LED
- Jacks: 2 Input, 2 Output 'Jack sockets'
- Input Impedance: 1MΩ
- Output Load Impedance: < 1kΩ
- Dimensions: 120mm x 65mm x 55mm
- Weight: 510 grams

The Echohead EH-1 also features dual outputs, offering the choice of using a passive bypass for the main signal path to ensure complete tonal integrity or allowing the pedal to spill-over, allowing echoes to naturally decay. The dual outputs create a stereo ping-pong effect, providing a wide dynamic field.

The pedal includes a footswitch for turning the Echohead on and off, as well as a tap tempo socket for connecting a momentary footswitch to control the delay time. Additionally, it has a DC input for a 9V DC centre negative regulated adaptor, should you not wish to use batteries.

The Echohead EH-1 is designed to add depth and dimension to guitar sounds, from crystal clear echoes to hypnotic reverse delays, and is suitable for a wide range of musical styles and applications.
