Echelon Echo

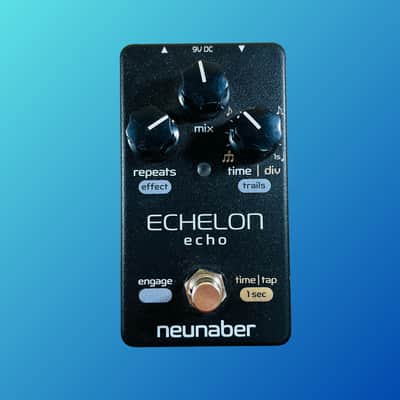

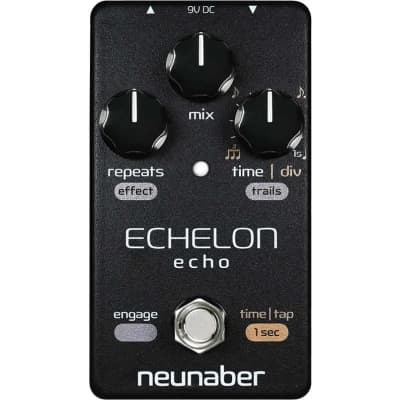

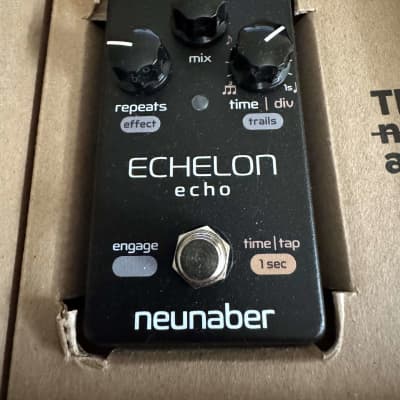

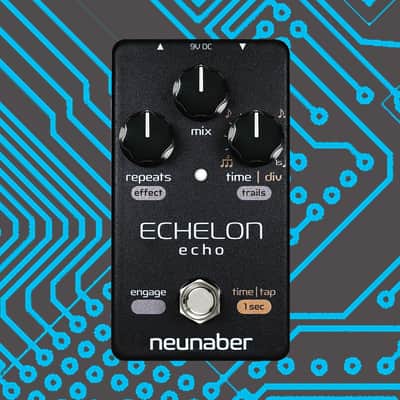

The Neunaber Audio Echelon Echo v2 is a versatile delay pedal designed to deliver warm, studio-quality echo effects with intuitive controls and a compact footprint. Here are the technical specifications and features:

- Dimensions: 115 mm L, 64 mm W, 46 mm H / 4.6" L, 2.6" W, 1.9" H
- Weight: 190 g / 6.7 oz
- Electrical Specifications:
- Nominal input level: -10 dBV, instrument level
- Input impedance: 1 MΩ
- Frequency response, dry / bypassed: 20 Hz — 30 kHz, +/-1 dB
- Total harmonic distortion, dry / bypassed: 0.01%
- Power:
- Input: 9-12 V DC, 100 mA
- Connector: center-negative, 5.5 mm OD x 2.1 mm ID
- Effects:
- Two effects in 1 pedal:
- Hi-Fi Tape Echo: Simulates the high-frequency saturation of a magnetic tape and is gently modulated for added richness and color.
- Lo-Fi Delay: Simulates the reduced bit depth of a vintage digital delay, allowing for the creation of unique, degraded echoes.

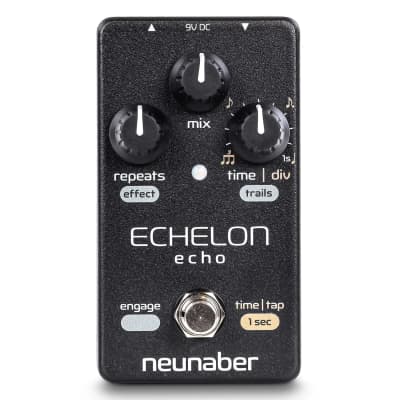

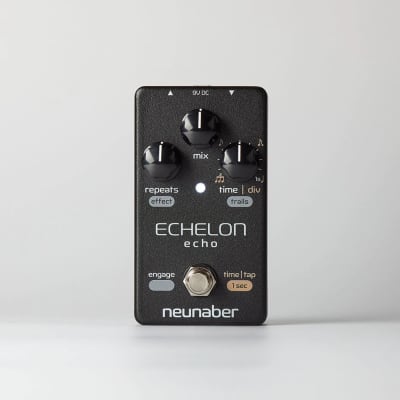

- Controls:
- Simple 3-knob layout for easy sound adjustments
- Primary Controls:
- Full Mix: Adjusts wet/dry mix from 0% to 100%
- Repeats: Controls the number of echoes from a single slapback to endless repeats
- Time: Adjusts delay time from 50 ms to 1 second
- Tap Divide: Controls rhythmic subdivisions in Tap Mode

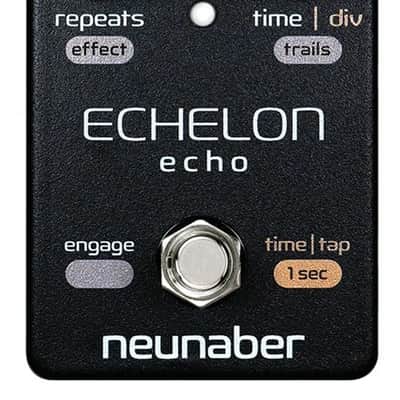

- Alternate Controls:
- Effect: Switch between Hi-Fi Tape Echo and Lo-Fi Delay
- Selectable trails: Choose whether the effect naturally trails or cuts off abruptly after bypass
- Footswitch:
- Short press: Engage/bypass effect
- Long press (1 sec): Enter/exit Tap Mode
- Tap tempo: Set the echo time by tapping to the beat in Tap Mode

The Echelon Echo v2 also features cross-fading time change for seamless time/tempo adjustments, analog dry signal for low noise and zero latency, and a mono input & output for quick and simple setup. It is powered from a standard 9V pedal power supply, drawing less than 100 mA.

Manufactured locally in Orange County, California, the Echelon Echo v2 is designed to meet the needs of musicians seeking high-quality echo effects in a pedalboard-friendly package.
