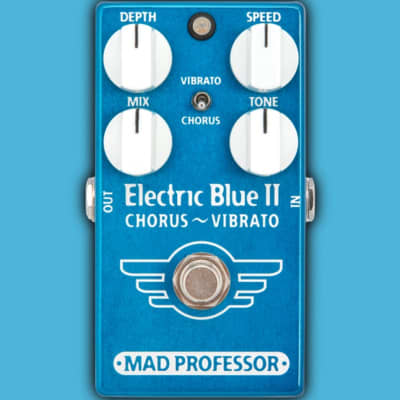

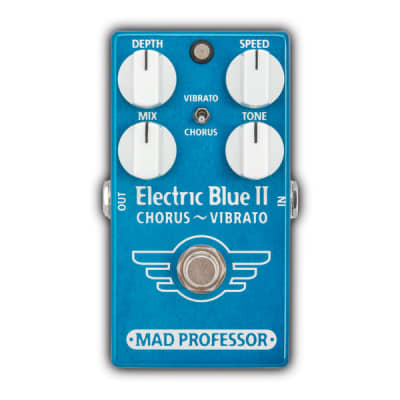

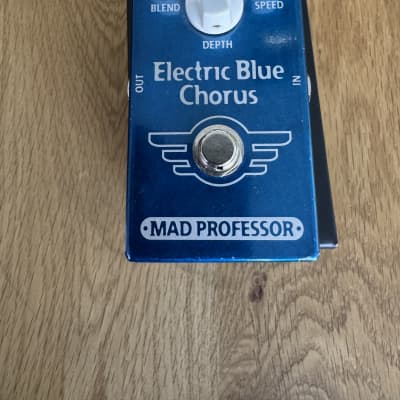

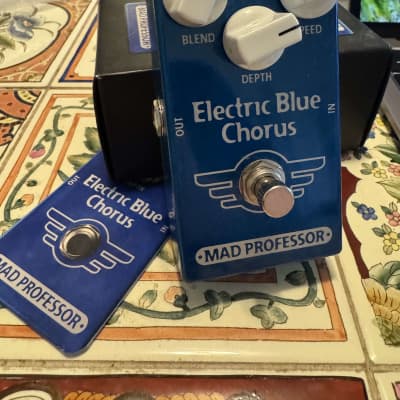

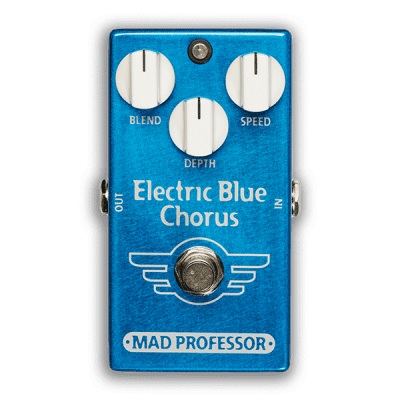

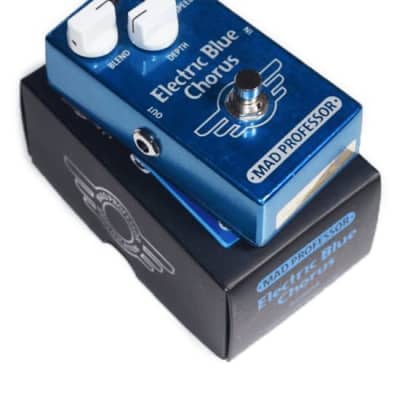

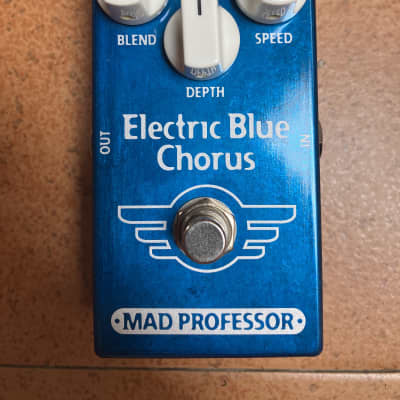

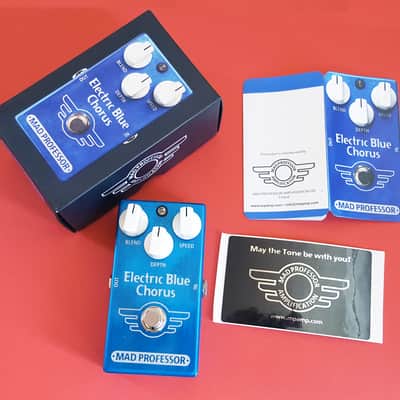

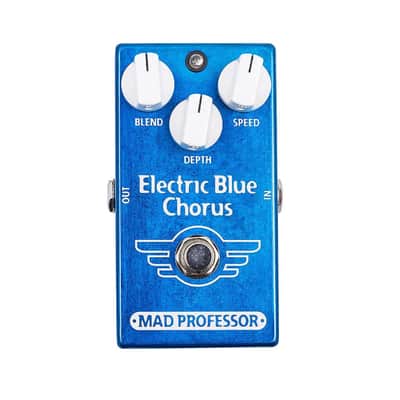

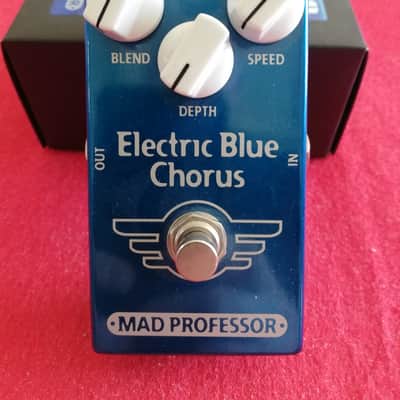

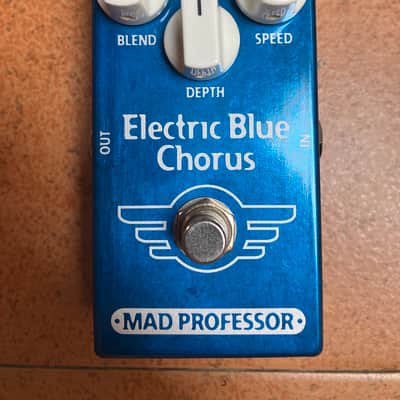

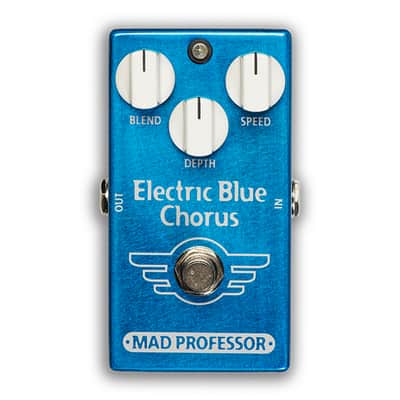

Electric Blue Chorus

The Electric Blue Chorus by Mad Professor is a versatile and high-quality modulation pedal designed for guitarists seeking a wide range of chorus and vibrato effects. Here are the technical specifications and features:

- Controls:
- Depth: Allows adjustment of the depth of the effect.
- Speed: Enables control over the speed of the modulation, offering traditional chorus effects and faster faux-leslie type effects.
- Mix: Allows the user to blend the wet signal into the dry signal, providing a range of subtle to extreme effects. When in Vibrato mode, the Mix control operates as a level control.
- Tone: Unique to modulation pedals, it allows the user to dial in warm and lush analog tones or modern and sparkling tones.

- Technical Specifications:
- Input Impedance: Approximately 400K Ohms
- Output Impedance: Approximately 2K Ohms
- Current Consumption: 40mA at 9V DC
- DC Supply Voltage Range: 9-12 VDC
- Complete Bypass (True Bypass)
- 9VDC power supply input, 2.1mm plug center negative and positive sleeve
- Voltage Range: 8.5V-12V

- Additional Information:
- The Electric Blue Chorus uses a sine wave generator for a more pleasing and gentle "liquid wave" sound, setting it apart from most other chorus pedals.
- It offers a very musical modulation with even stronger chorus settings and tones that lean toward vibrato.
- The pedal is designed to be very quiet and transparent with minimal filtering, suitable for use with both clean and distorted tones, either in front of or after a distortion pedal.
