RIDGE

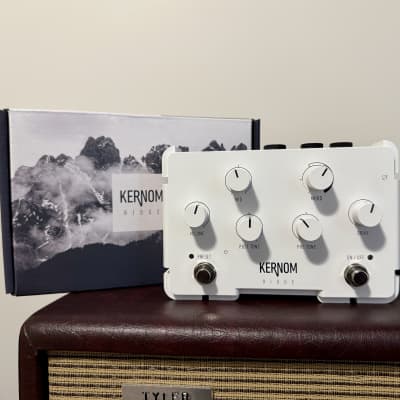

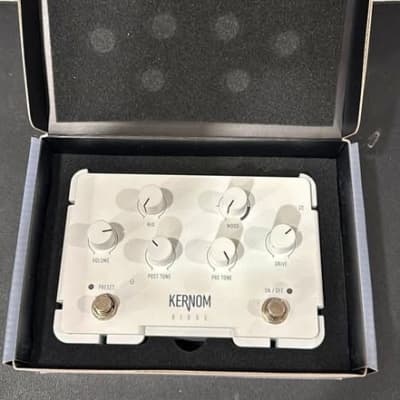

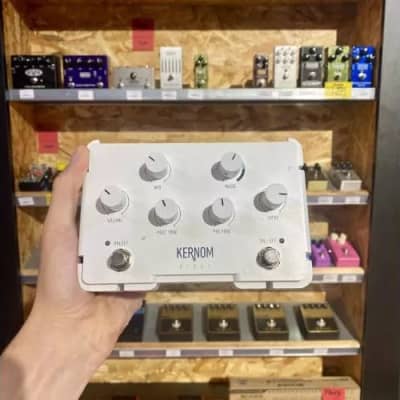

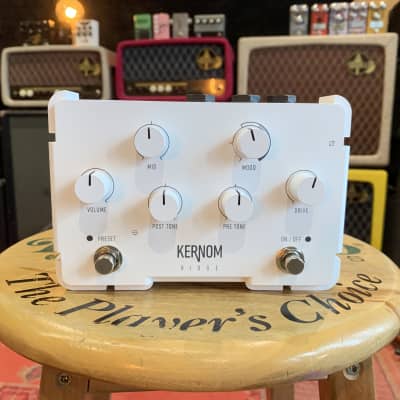

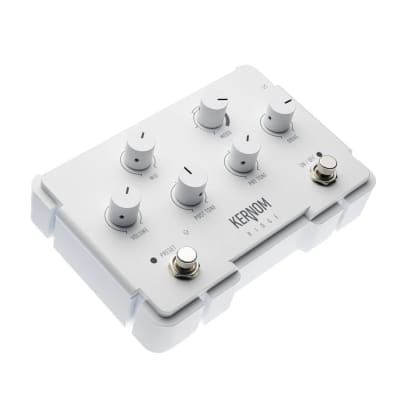

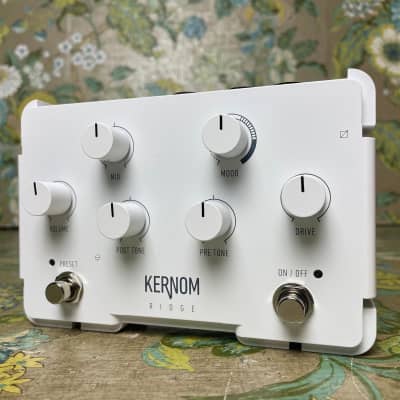

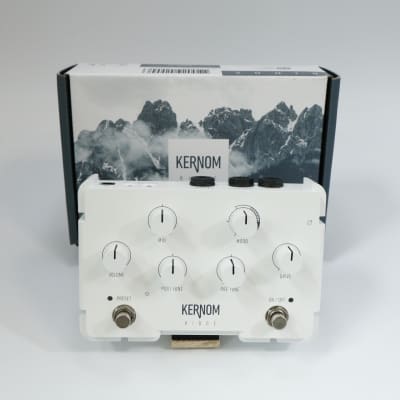

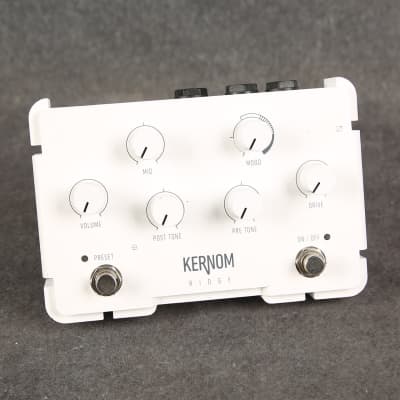

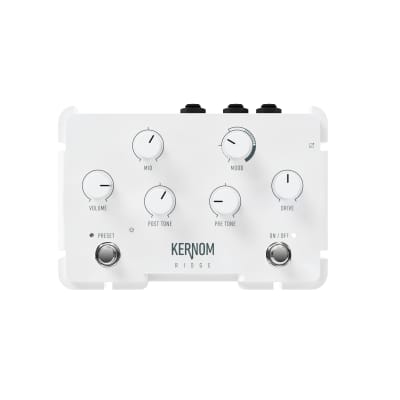

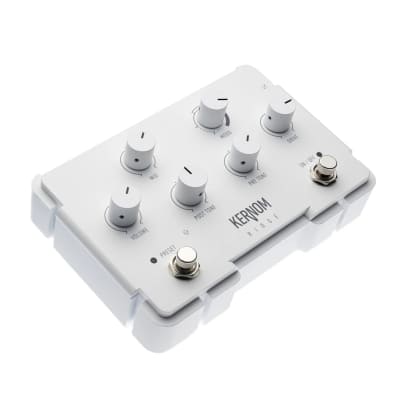

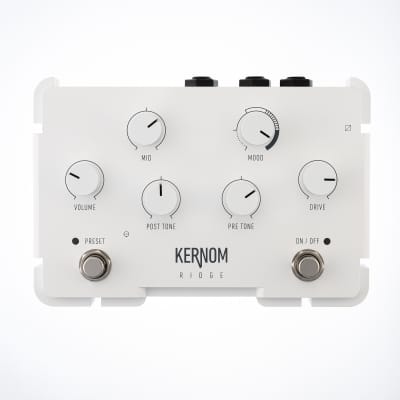

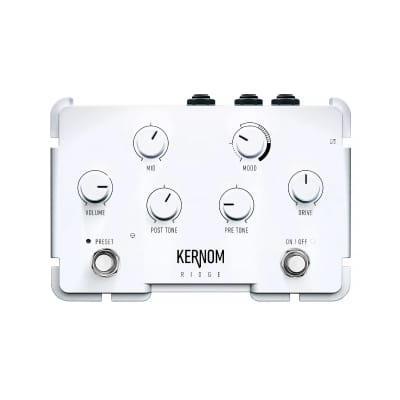

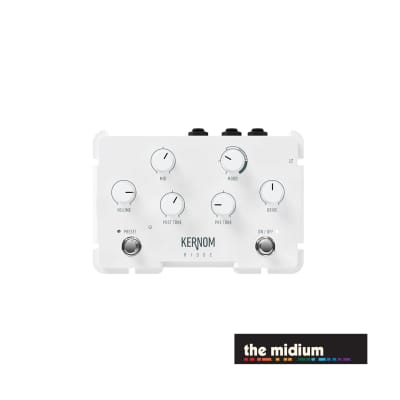

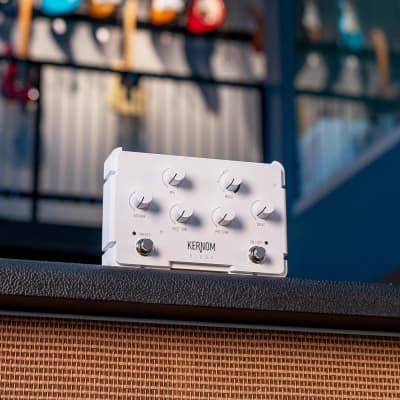

The RIDGE by Kernom is an advanced overdrive pedal featuring the unique patented "Analog Morphing Core" technology. It controls the nonlinear elements of the clipping stage by changing their threshold in real time, resulting in a new kind of diode behavior. The pedal offers the following specifications and features:

Specifications:
- Input Impedance: 1Meg Ohm (Guitar mode) / 32k Ohm (Line mode)
- Output Impedance: 100 Ohm
- Bypass Switching: True Bypass (electromechanical relay switching)
- Dimensions: 11.2 cm deep x 16.4 cm wide x 5.2 cm tall (4.4 inches deep x 6.5 inches wide x 2 inches tall)
- Weight: 850 g (1.8 lbs)
- MIDI Cable Requirements: Use a type A mini jack TRS MIDI cable
- Power Adaptor Requirements: Use an adaptor (not included) with the following rating: 9VDC center negative. (250mA minimum, 300mA or more recommended)

Features:

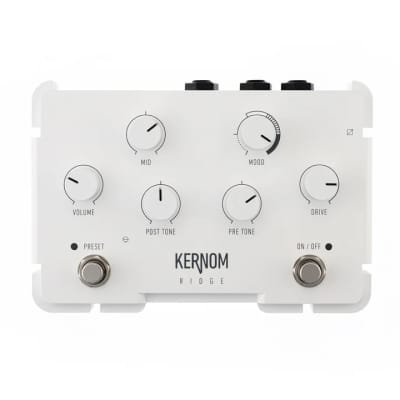

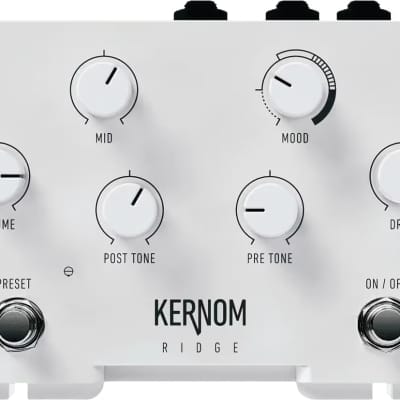

- MOOD knob for selecting the personality of the pedal, offering a wide range of clipping variations from clean boost to compressed overdriven sound
- Chameleon EQ trio with PRE, POST, and MID knobs for modifying the pedal's interaction with the guitar, amp, and mix
- Internal preset accessible via dedicated footswitch for accessing two sounds at any given time
- Full MIDI compatibility for saving and recalling up to 128 different presets
- Expression pedal connectivity for controlling any combination of knobs
- Designed for both guitar, bass, synth, and studio use
- True Bypass with relay, expression pedal input, and MIDI in and out with full control over all parameters

The RIDGE by Kernom offers a versatile and innovative approach to overdrive pedals, providing musicians with a wide range of tonal possibilities and precise control over their sound.
