T7E Baby Guitar Pedal By Foxgear

T7E Baby

Pedal Manufacturer

Foxgear

Description

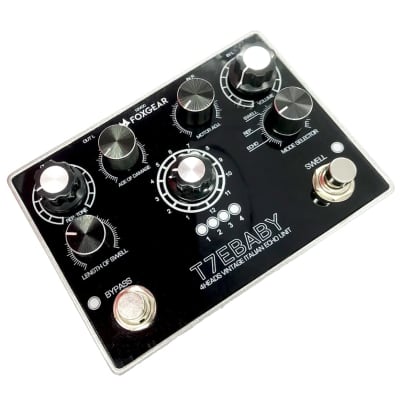

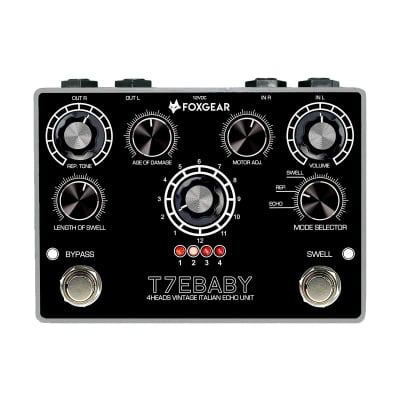

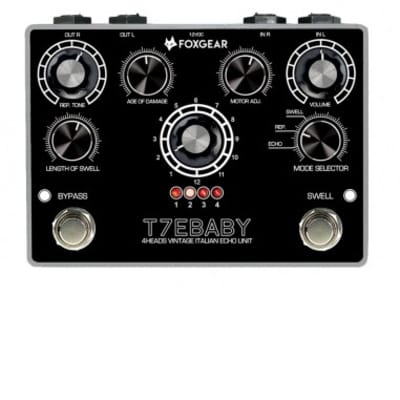

The T7E Baby by Foxgear is a stereo vintage echo pedal that expands the features of the "Binson-inspired" circuit, offering a complete palette of options similar to the old Binson Echorec T7E. Its technical specifications and features include:

- Size: The enclosure is compact, measuring only 3.5” x 5” (9 x 13cm), making it pedalboard-friendly.
- Connections: Equipped with full stereo input and output, the T7E Baby features an internal stereo engine that produces an outstanding and lush ambient tone with a 3D effect.
- Switching: It has two footswitches for true bypass assisted by relay and to immediately recall the swell mode (reverb) for different presets for ambient/echo tone.
- Motor Speed Adjust: Allows for an increase in the overall delay time, providing over 880ms of long, lush delay while keeping the 4 heads in sync.
- Working Mode Selector: Offers three operating modes - Echo, Rep, and Swell

  • allowing for different delay and feedback settings.
    - Heads Combinations: The main selector allows users to choose the head/combination of heads, with 4 red LEDs indicating the head/combination in use.
    - Stereo Engine: Provides a beautiful 3D effect when engaged, creating a stereo signal with remarkable spatial depth.

Technical Specifications:
- Power In: 12VDC (negative TIP)
- Consumption at 9V: 140mA
- Delay Time: H1: 86ms, H2: 172ms, H3: 258ms, H4: 344ms
- Input Impedance: ≤1M Ohm
- Output Impedance: ≤10K Ohm
- Dimensions: 90mm x 127mm x 30mm
- Weight: 0.5Kg (1.1lbs)

The T7E Baby is designed in Italy and handmade in the manufacturer's factory in PRC. It comes with a 5-year product warranty and offers a range of unique features that cater to musicians seeking vintage echo tones.

Watch something on YouTube

Watch T7E Baby Videos, Demos, and Reviews

Watch the latest video demos and reviews for the T7E Baby from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

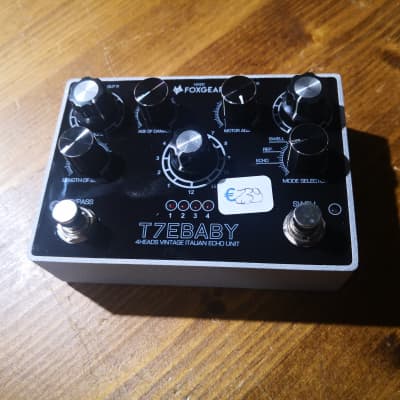

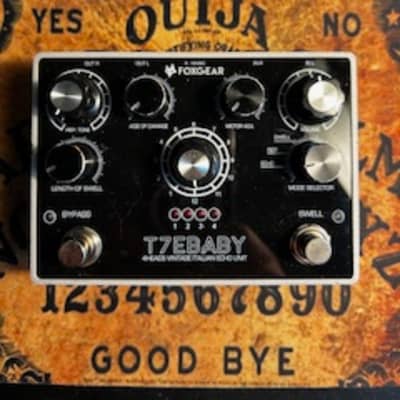

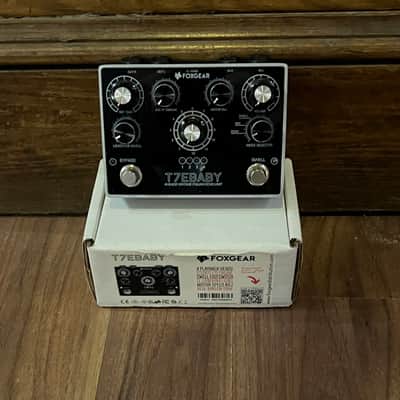

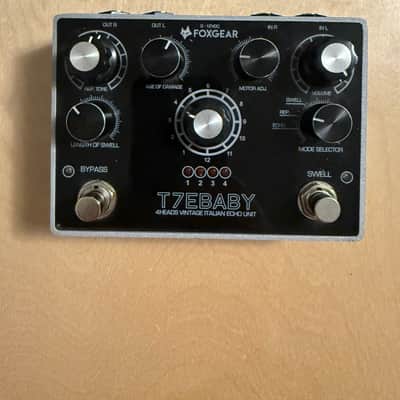

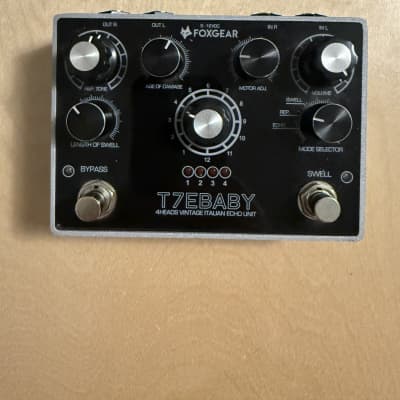

Find Foxgear T7E Baby Listings on Reverb
