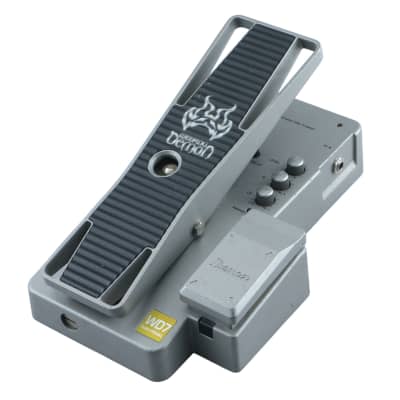

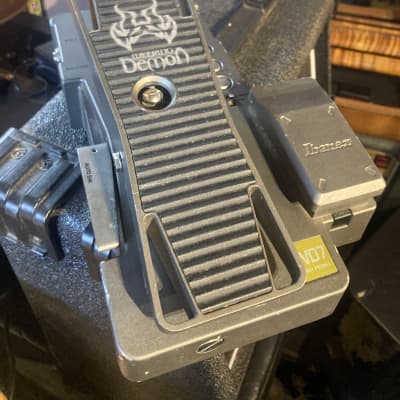

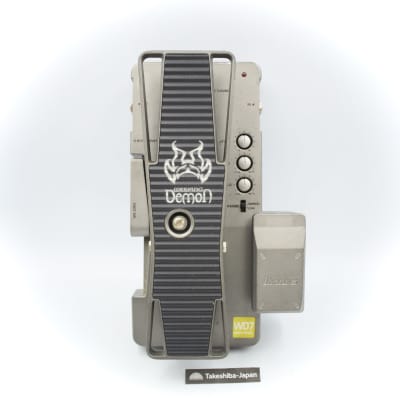

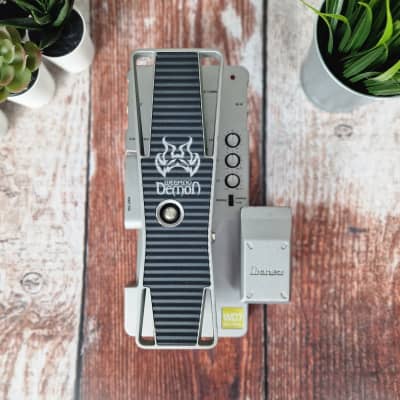

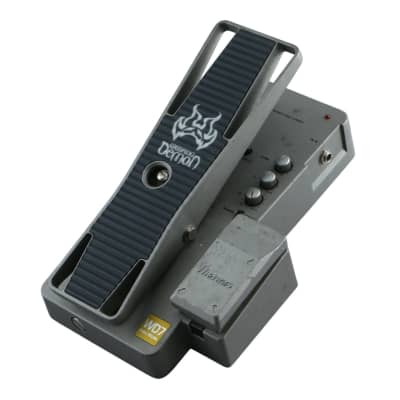

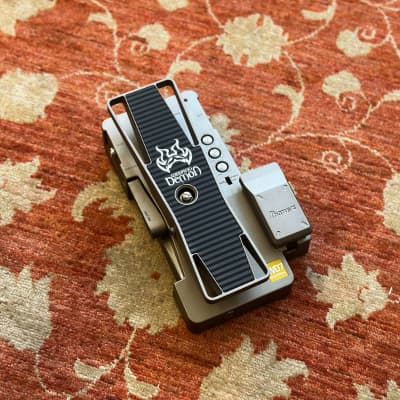

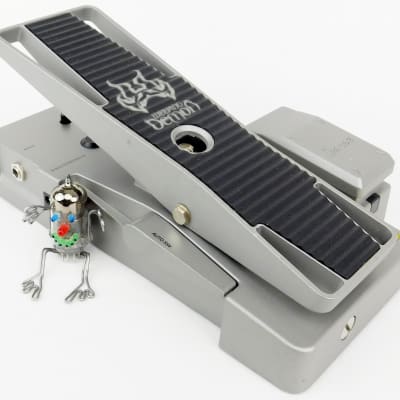

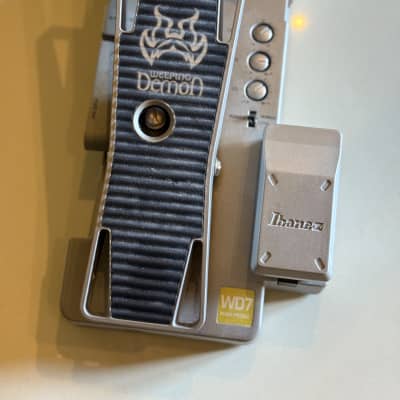

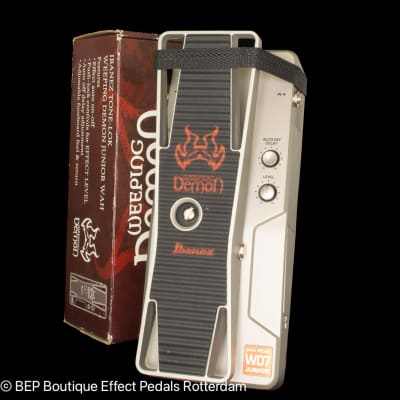

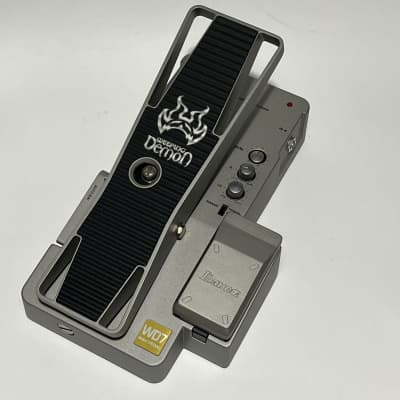

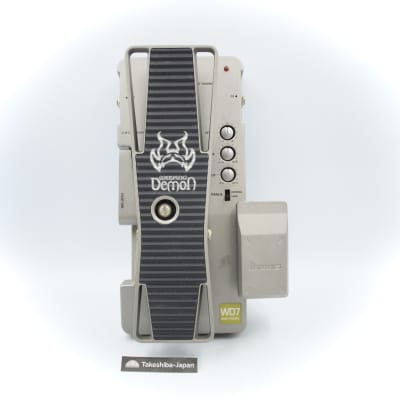

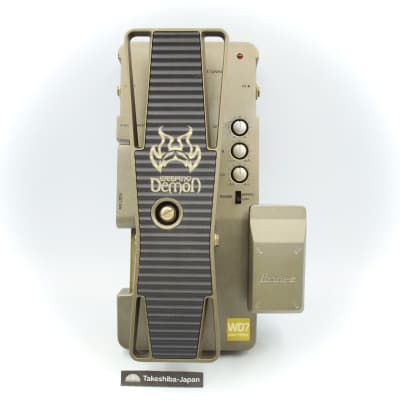

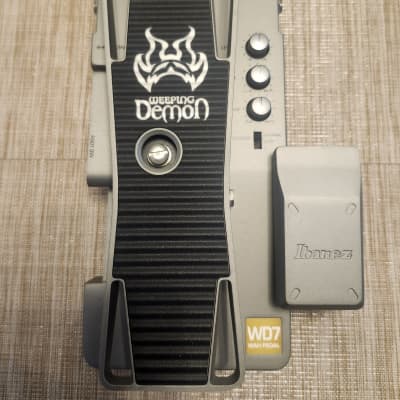

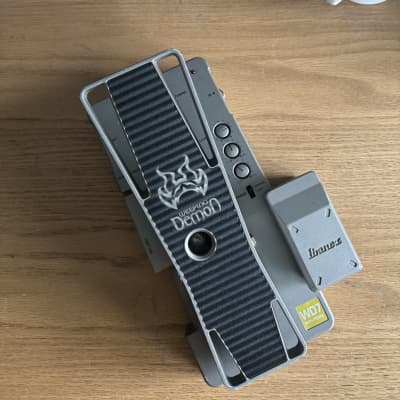

WD7 Weeping Demon Wah

The Ibanez WD7 Weeping Demon Wah pedal is a member of the Tone-Lok Series and is designed to produce wailing wah effects. It features the ability to switch between spring and normal footboard action, offering a tweakable wah range and other fine-tuning controls to achieve a specific sound. The "set and forget" Push-Lok rotary pots allow users to press the knob down without losing their settings.

Technical Specifications:
- Power Supply: 9V battery (S-006P) or AC109, AC309, AC509
- Current Consumption: 35mA maximum
- Dimensions: 259 (D) x 154 (W) x 117 (H) mm
- Weight: 1600g (with battery)

Controls:
- Level: Controls the overall volume when the effect is on
- Auto Off Delay: Adjusts the time delay from when the pedal is returned until the effect switches off in AUTO SW. mode
- Q: Adjusts the character of the wah
- Lo: Adjusts the low-frequency range
- Range: Switches the frequency range which the wah sweeps, changing the tonal character

The pedal offers two modes of operation:
1. FOOT SW. mode: The foot switch turns the effect on/off, and a moderate amount of friction keeps the pedal angle as it was left.
2. AUTO SW. mode: The effect automatically turns on when the wah pedal is depressed slightly, and turns off after a slight delay when the pedal is returned or foot is taken off.

The Ibanez WD7 Weeping Demon Wah pedal is suitable for creating a variety of wah effects and is designed to be highly rugged and affordable.
