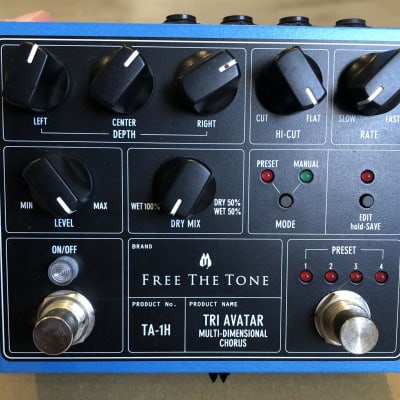

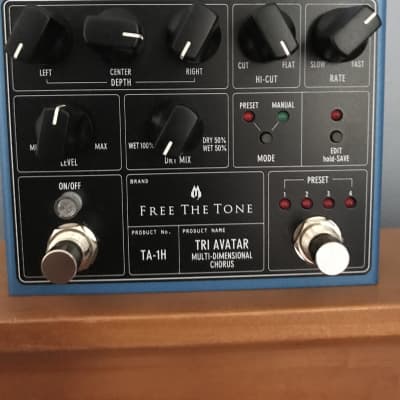

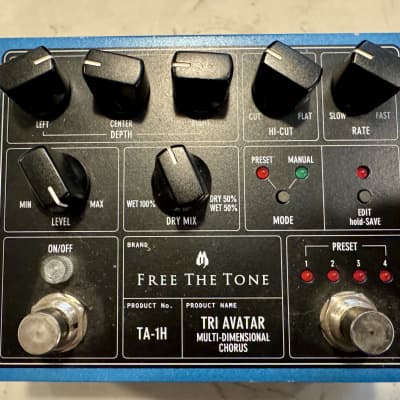

TA-1H TRI AVATAR

The Free The Tone TA-1H TRI AVATAR is a next-generation chorus pedal with four signal paths for three chorus sounds and one dry signal. Here are its technical specifications and features:

- Number of presets: 128
- Input impedance: minimum 500k Ohm
- Output load impedance: minimum 10k Ohm
- Maximum Input Level: +7dBu
- Controls: RATE, TONE, DEPTH L/C/R, DRY MIX, LEVEL
- Terminals: 4 x Standard 1/4" phone jack (IN, OUT/L (mono), OUT/R, EXT), DIN 5-P IN connector (MIDI IN), DC9V input jack (for connecting AC adapter)
- Power supply: 9V DC center negative polarity
- Current consumption: 150 mA
- Dimensions (W x D x H, incl. protuberances such as footswitches, jacks): 120 x 102.3 x 58.5 mm
- Weight (excl. accessories): approx. 380 g (0.84 lbs)

Features:
- Three independent pitch-modulation signal paths and one dry signal path for mixing in the analog domain
- A widening effect characteristic of three-phase choruses is attained by 120˚ shifting of the phase in each signal modulation path
- Supports both stereo and monaural operation
- Next-generation chorus sound with minimum noise has been attained by adopting 24-bit AD/DA converters and with Free The Tone's original signal processing and algorithms
- RATE or TONE parameters can be controlled in real-time from an expression pedal plugged into the EXP terminal
