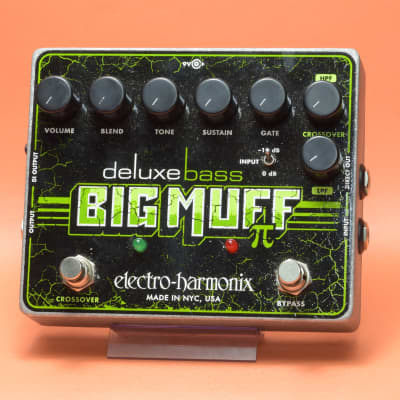

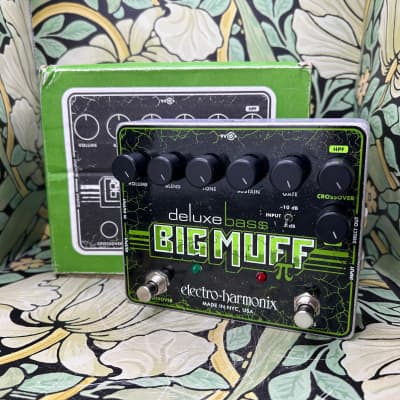

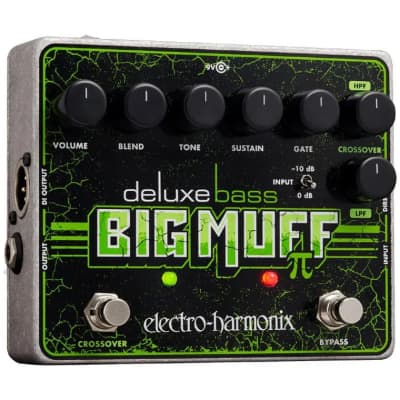

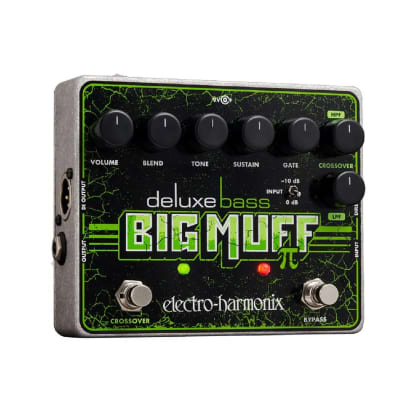

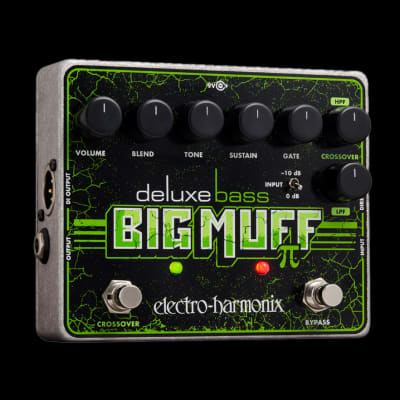

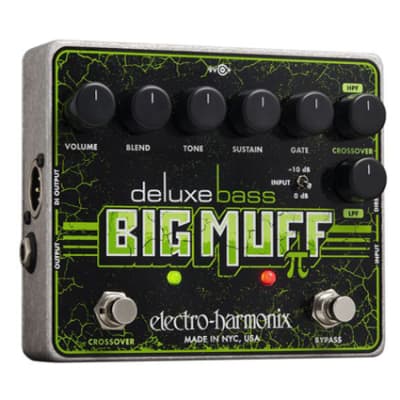

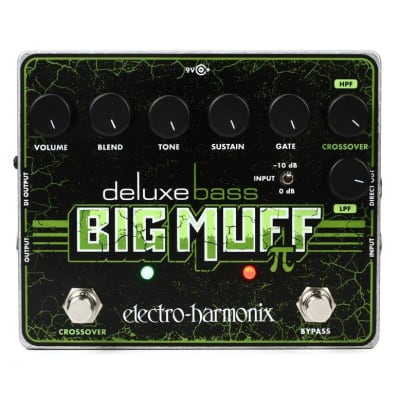

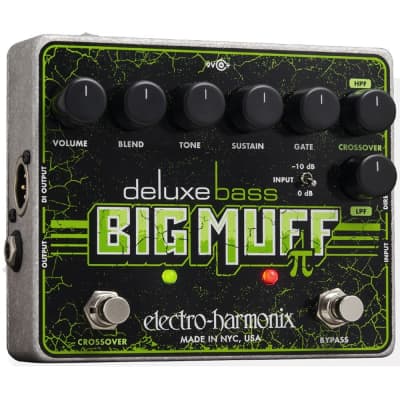

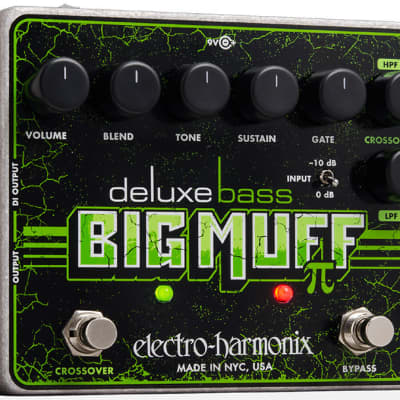

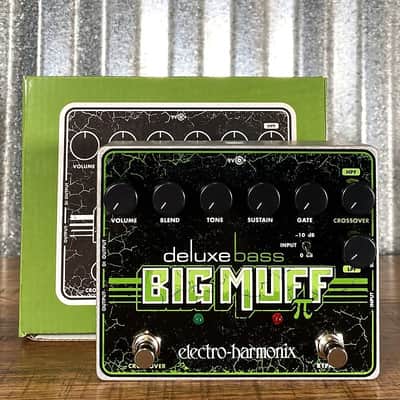

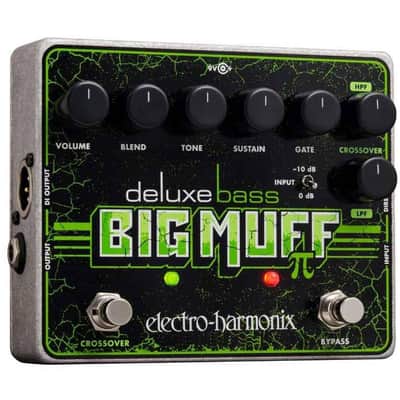

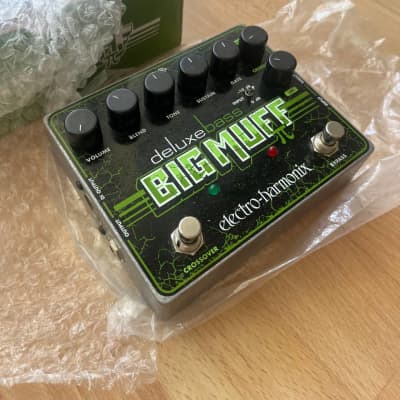

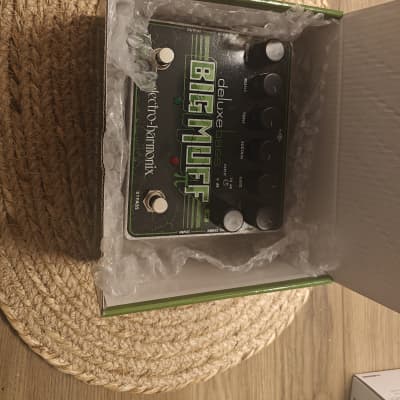

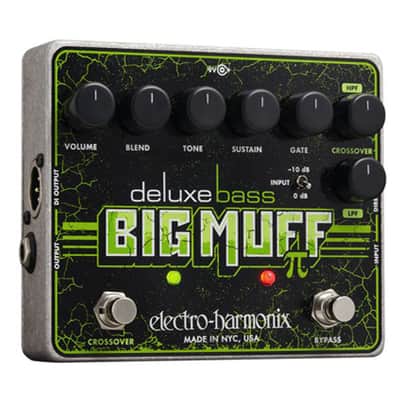

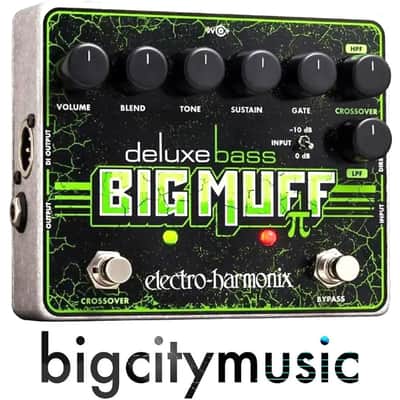

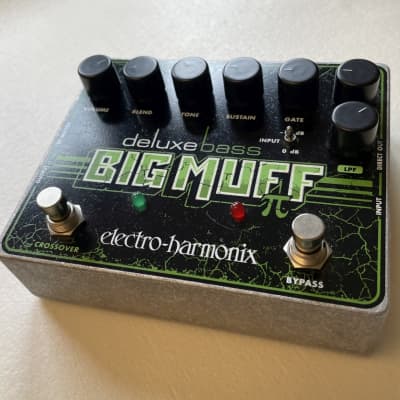

Deluxe Bass Big Muff Pi

The Deluxe Bass Big Muff Pi by Electro-Harmonix is a versatile pedal tailored for modern bass players. Here are its technical specifications and features:

- Pad on the input switchable between 0dB and -10dB for use with both passive and active pickups
- Blend control to mix direct and distorted signals
- Three outputs: 1/4" effect out, 1/4" buffered dry out, and XLR DI out for complete control of the output signal
- Foot-switchable crossover section with variable low pass filter on the dry signal and variable high pass filter on the distorted signal for sound sculpting
- Built-in noise gate with adjustable threshold to eliminate unwanted noise
- Tough and compact die-cast chassis
- 9-Volt battery included, optional 9.6DC-2000BI power supply available
- Controls: Volume, Tone, Sustain, Blend, Gate, Crossover HPF, Crossover LPF, Miniature switch (input 0 / -10 dB), Crossover switch, Bypass footswitch, Crossover footswitch
- Inputs: 1 x 1/4"
- Outputs: 1 x 1/4" (effect out), 1 x 1/4" (buffered dry out), 1 x XLR (DI out)
- Pedal Type: Bass Fuzz
- Weight: 1.6 lbs
- Dimensions: 7.25" x 6.2" x 3.25"
- USA MSRP: $200.30
- USA MAP: $150.60

The pedal draws from the legendary Sovtek battle-tank green Big Muff Pi and the original Electro-Harmonix Big Muff Pi, offering enhanced tone shaping options specifically designed for bass. It features a range of controls for volume, tone, sustain, gate, and crossover filtering, as well as various input and output connections for versatile use.
