OctaBass

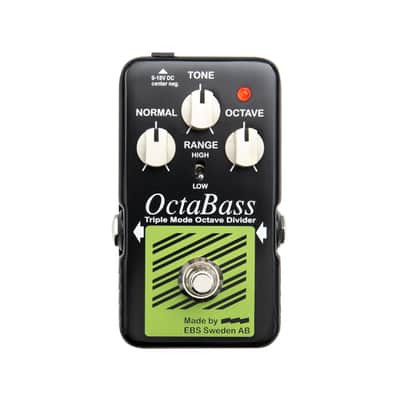

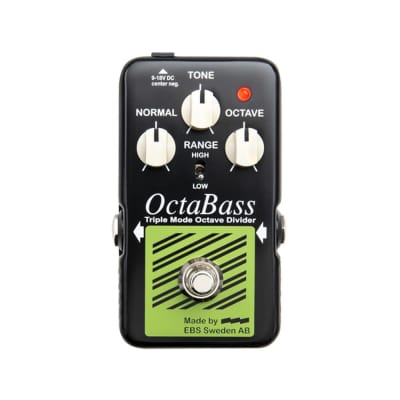

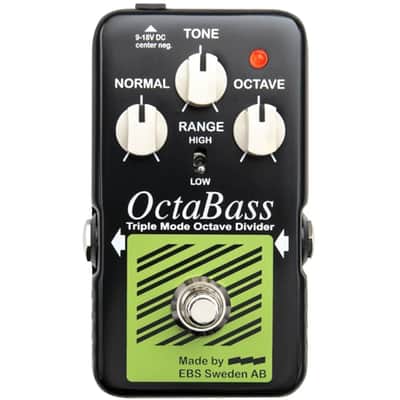

The EBS OctaBass Blue Label is an analog octave divider pedal designed for bass instruments. It features the following technical specifications and features:

- Nominal Input Level: -10 dBv
- Input Impedance: 1.8 Mohms
- Output Impedance: 100 ohms
- Dry Bandwidth +0/-2 dB: 20 - 20k Hz
- Dry Level min/max: -oo / 0 dB
- Octaver Level Gain min/max: -oo / 12 dB min
- Octaver Tone Filter: Type Low Pass Slope >18 dB/octave, Range 60 - 350 Hz
- Triggering Threshold: -70 dBv @200 Hz
- Type: Analog Effect, Relay type Switching
- Power Requirements: 9, 12, or 18 V DC, 40 mA max. Pedal shuts off below 6.0 V
- Dimensions: 2.6" (67mm) Wide, 4.5" (115mm) High, 1.9" (48mm) Deep
- Weight: 315g (0.7 lb.)

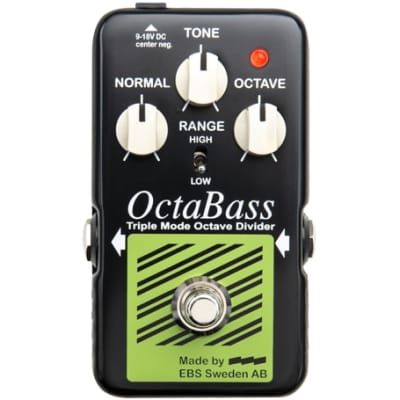

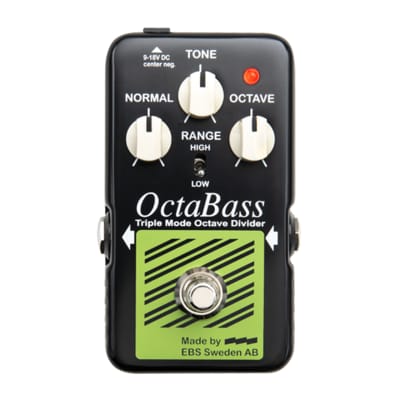

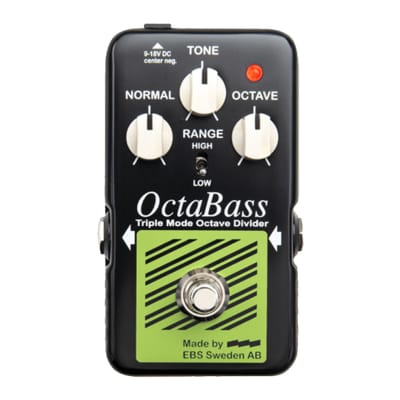

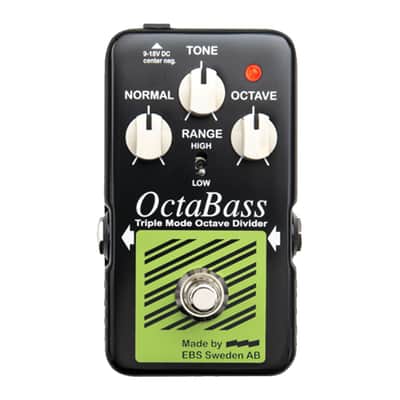

The 'Blue Label' model introduces new features that enhance the tracking range and improve control of the sound. It includes a Range-switch to optimize the focus area of the tracking, and a seamless tone control for a versatile range of sounds, from a present, focused octave to a sub-bass backdrop. The pedal can be powered with 9-18V DC power and has a reduced footprint compared to previous editions.

The EBS OctaBass Blue Label is known for its fast and accurate tracking, delivering a fat, natural sound. It is suitable for both live and studio use and offers high or low-optimized fretboard tracking-range.
