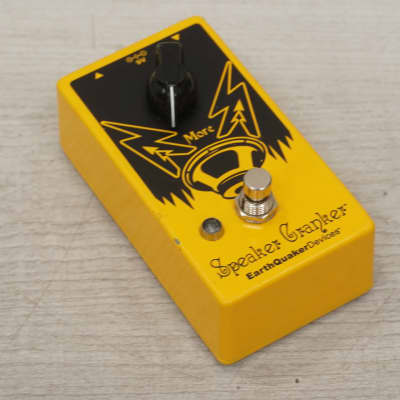

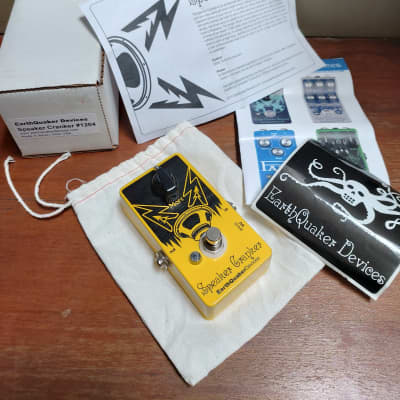

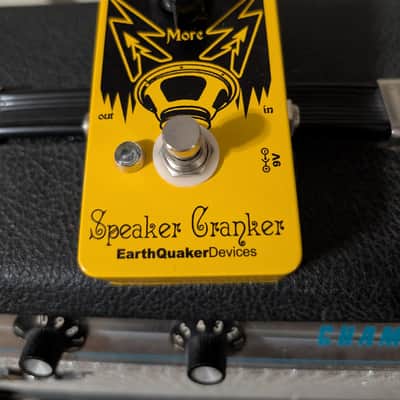

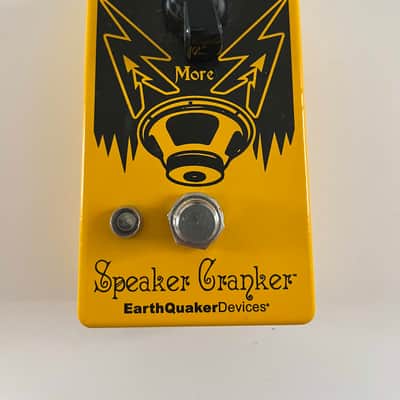

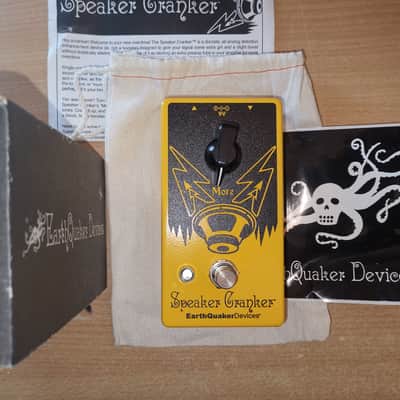

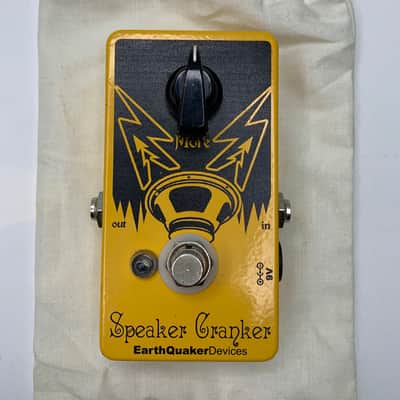

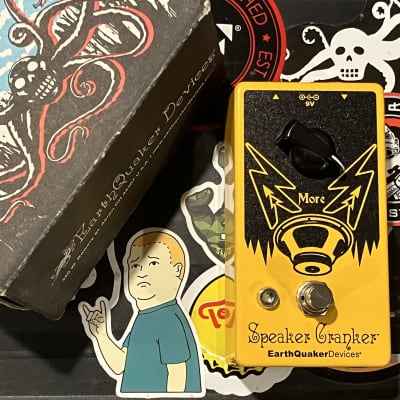

Speaker Cranker

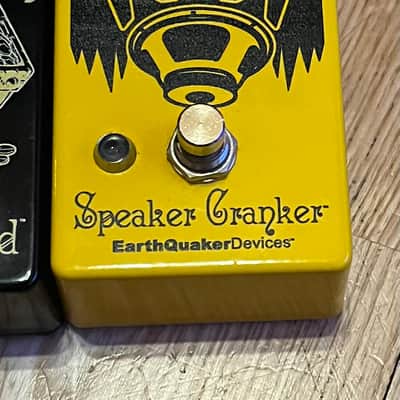

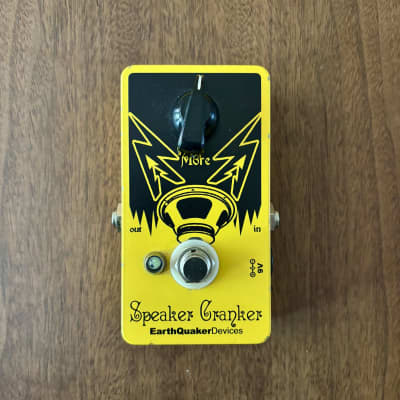

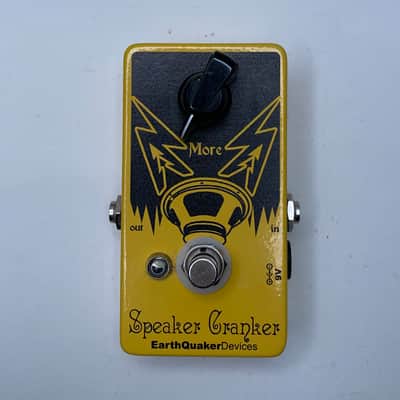

The Speaker Cranker by EarthQuaker Devices is a discrete, all-analog distortion enhancement device designed to provide extra grit and a slight boost without significantly altering the original tone. It is not a booster but rather an overdrive, intended to emulate the effect of adding an extra preamp tube to an amplifier for increased overdrive.

Key Technical Specifications:
- Dimensions: 4.75 x 2.50 x 2.25 inches (121 x 64 x 57 mm) with knobs
- Current Draw: 10 mA
- Input Impedance: 2.2 MΩ
- Output Impedance: <10 kΩ
- Power: Can be powered by a 9v battery or a standard 9-volt DC power supply with a 2.1mm negative center barrel
- Switching: True bypass with electronic relay-based switching; audio will not pass without power

Controls:
- More: Controls the amount of dirt, allowing users to adjust the level of overdrive as desired

Functionality:
- Enhances single notes with rich harmonics and responsive, tube-like sag
- Thickens power chords and adds crunchiness without muddying the low-end or altering the mid and top-end characteristics
- Preserves the integrity of the original tone while providing a subtle boost and extra grit
- Suitable for adding tube-like breakup to an amp, fattening up the sound of other pedals, or stacking overdrives for cascading gain

Warranty:
- The device comes with a limited lifetime warranty, and any issues can be addressed by contacting info@earthquakerdevices.com.
