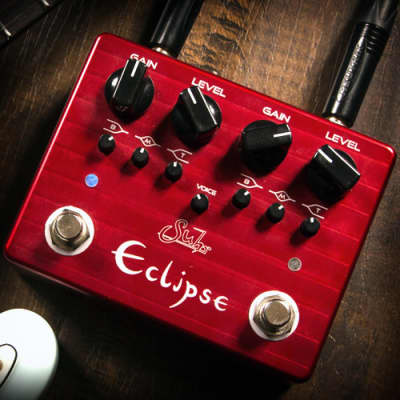

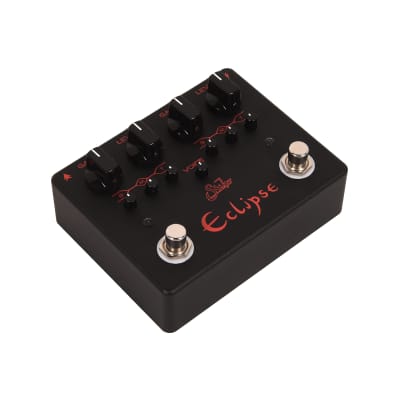

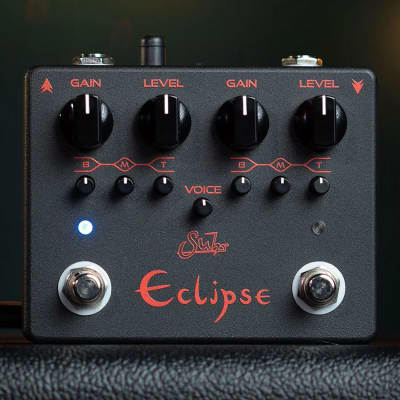

Eclipse Dual Channel Overdrive

The Suhr Eclipse Dual Channel Overdrive/Distortion pedal is a versatile and powerful tool for guitarists seeking warm, organic amp-like tones. Here are the technical specifications and features:

- Dual Channel Overdrive/Distortion pedal
- Independent Gain, Level, and 3-Band passive EQ controls for each channel
- Global voice control for fine-tuning the top-end response
- True Bypass functionality
- Billet aluminum enclosure for durability
- Operating voltage: 4V to 18V (nominal 9V), with a maximum voltage of 20Vdc
- Input Impedance: 1M Ohm
- Output Impedance: 100 Ohm
- Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
- Current Consumption: 12mA min, 15.5mA max
- Estimated Battery Life: 25 - 32 hours continuous use
- Dimensions: 4.875”(W) x 3.875”(D) x 1.375”(H)
- Weight: 1.13lb
- FX Link Connector: ⅛” TRS jack
- FX Link Max Voltage: 3.3Vdc
- Reverse Battery Protection and Over Voltage Protection
- ROHS Compliant

The Eclipse pedal's incredible versatility allows for independent voicing of each channel, accommodating various playing needs. Its passive EQ circuits are designed to deliver amp-like and natural tones, suitable for low gain overdriven tones as well as tight, high gain aggressive tones. Additionally, the pedal features a unique Voice control for adjusting the top-end response to match different amplifiers.

The pedal also offers rig-friendly features such as the ability to control channels and bypass with an external effects switching system via FX LINK, and the capability to start up automatically in a desired channel on power up.
