Elements

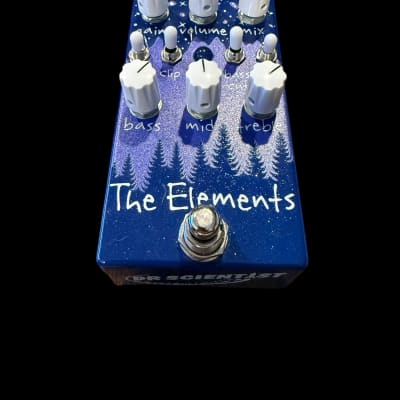

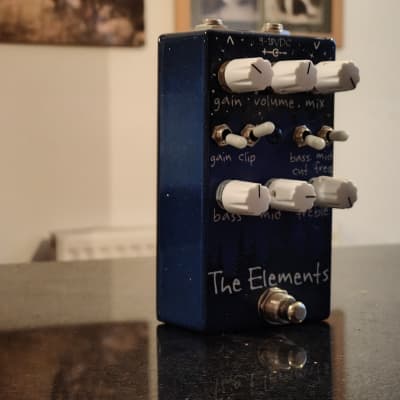

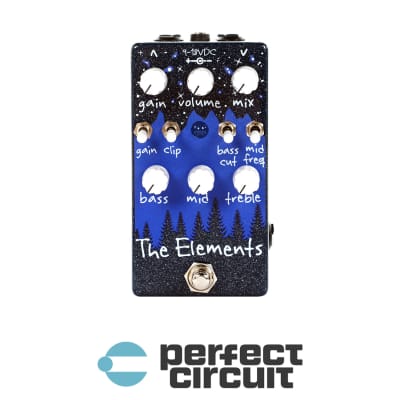

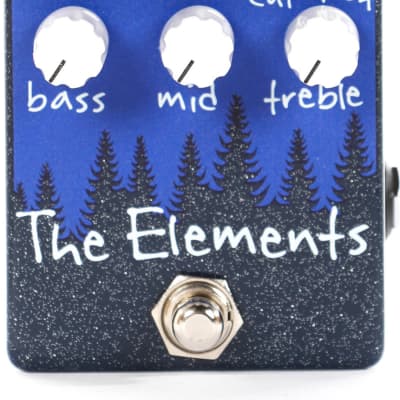

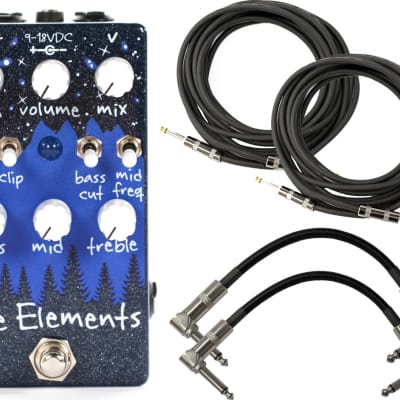

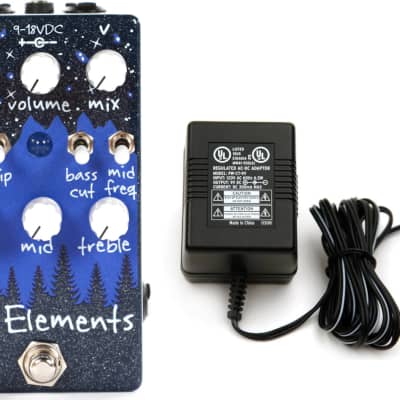

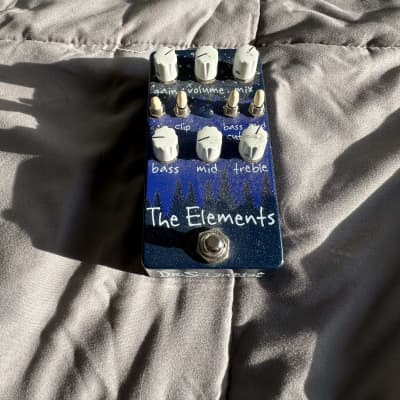

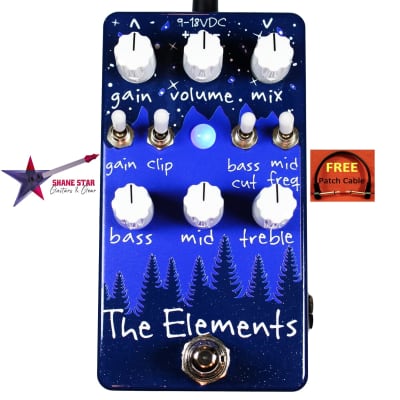

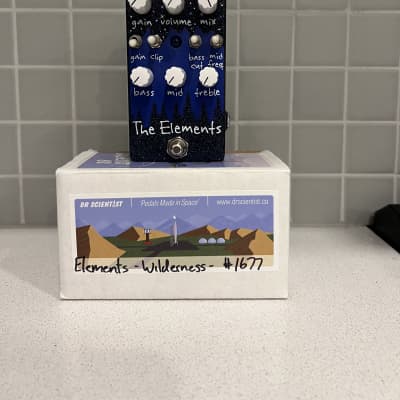

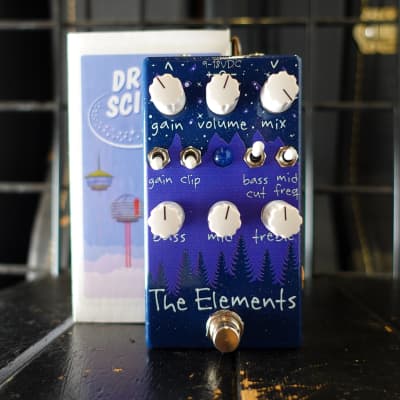

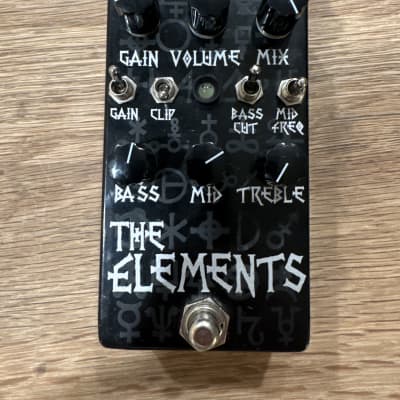

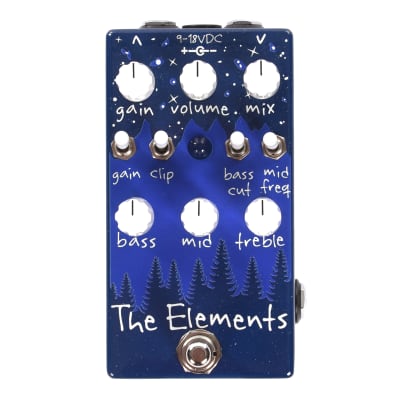

The Elements by Dr. Scientist is a dual-channel overdrive/distortion pedal with a wide gain range and a full 3-band equalizer. It offers the following technical specifications and features:

- Operation: Mono input, mono output
- Power Requirements: 9VDC @ 50mA, 18VDC @ 100mA
- Input/Output Impedance: 500kΩ/1kΩ
- Bypass: True bypass using soft touch switch and relay
- Knobs: Bass, Midrange, Treble, Gain, Volume, Mix
- Switches: Gain, Clip, Bass Cut, Mid Freq, Expression Control
- Additional Specs: Symmetrical clipping via LEDs, Asymmetrical via Germanium diode, or no clipping diodes
- Exp. input: TRS cable, 10kΩ to 100kΩ resistance
- Dimensions: 70mm wide, 129mm long, 59mm tall (2.75” wide, 5.1” long, 2.3” tall)
- Manual: The Elements Manual

The pedal also features low and high gain distortion channels selectable via a toggle switch, active 3-band EQ, symmetrical or asymmetrical clipping diode options, high-quality analog signal path, premium parts and components throughout, full control over wet/dry mix, expression pedal control over mix, and top-mounted audio and power jacks. It is designed and handmade in B.C., Canada.

The Elements pedal is designed to provide a wide range of tonal options and can be used with guitars, basses, synths, and many other instruments.
