FreqOut

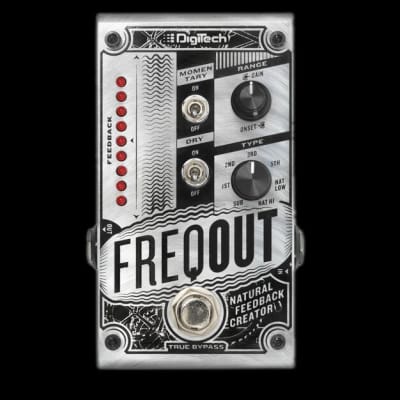

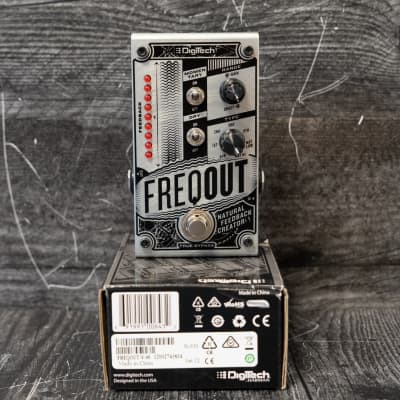

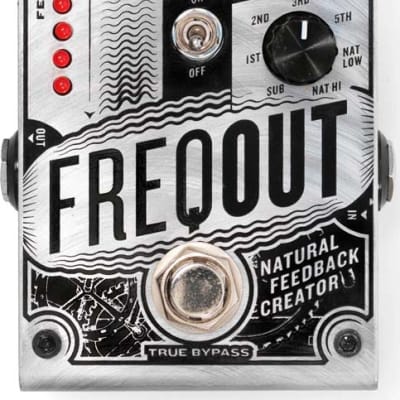

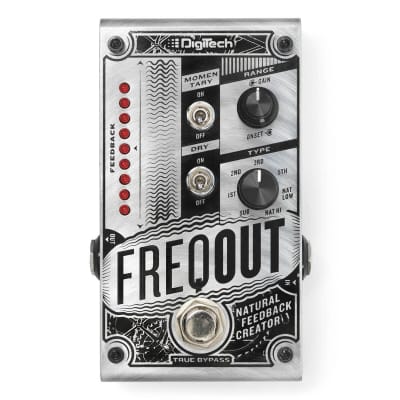

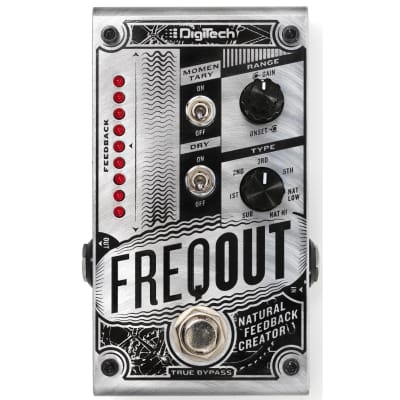

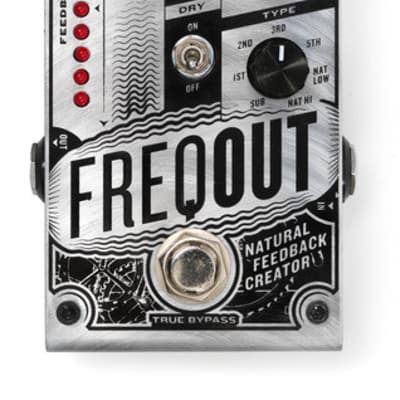

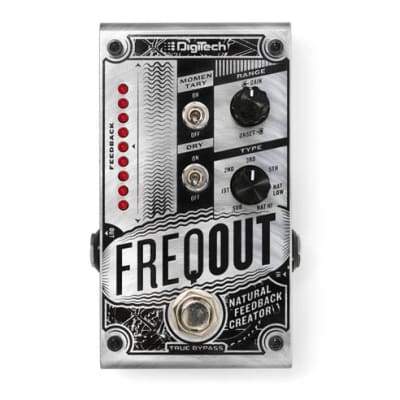

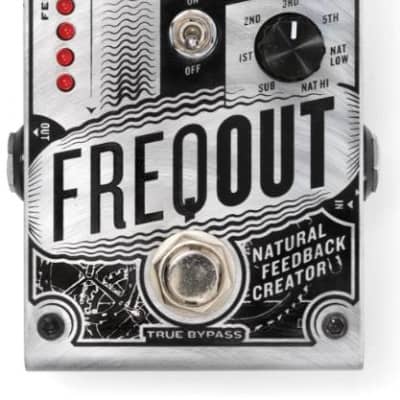

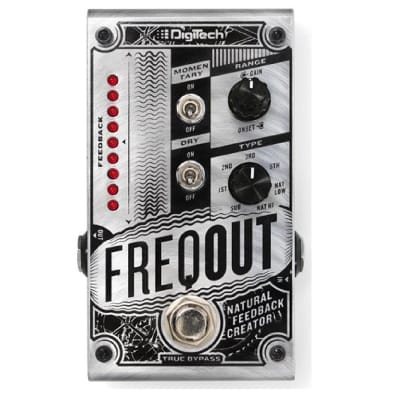

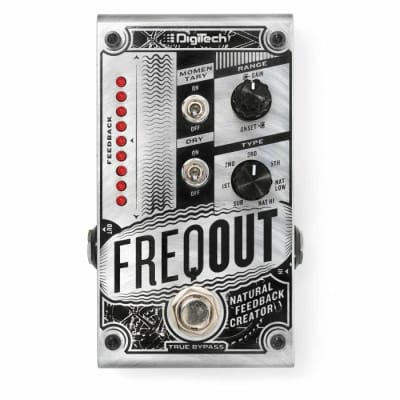

The FreqOut by DigiTech is a pedal designed to create natural feedback for guitarists. Here are the technical specifications and features:

Controls:
- Feedback
- Momentary On/Off
- Dry On/Off
- Gain
- Onset
- Type
- Effect On/Off

Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth

THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain

A/D/A Conversion: 24-bit

Power Consumption: 2.1 Watts (235 mA typical @ 9 VDC)

Power Requirements: 9 VDC External Adapter (sold separately)

Power Adapter (Sold Separately): PS0913DC-04 (US, JA, EU, AU, UK)

Power Adapter Output: 9 VDC 1.3 A

Dimensions:
- Length: 4.75" (120mm)
- Height: 1.75" (44mm)
- Width: 2.875" (73mm)
- Weight: 0.8 lb. (363g)

Audio Output:
- Output Type: 1/4” Unbalanced TS (Tip-Sleeve)
- Max Output Level: +10 dBu
- Output Impedance: 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on); True Bypass (Effect bypassed w/ Momentary switch off)

Audio Input:
- Input Type: 1/4” Unbalanced TS (Tip-Sleeve)
- Max Input Level: +5 dBu
- Input Impedance: 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on); True Bypass (Effect bypassed w/ Momentary switch off)
