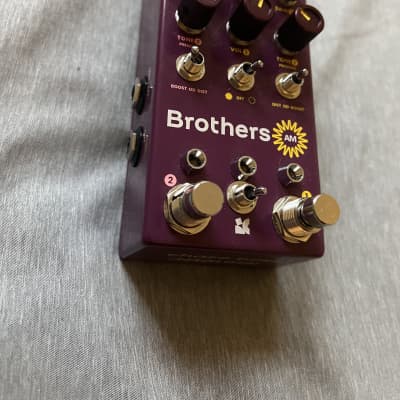

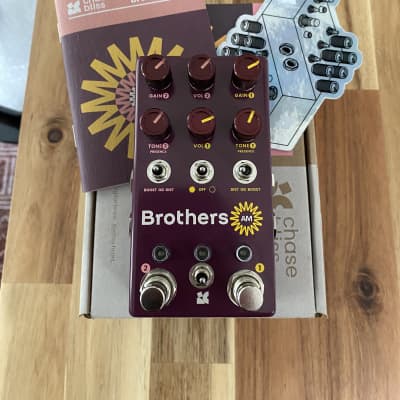

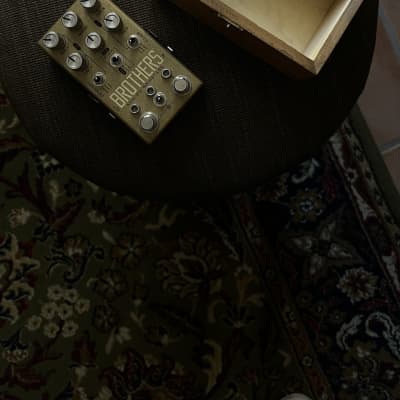

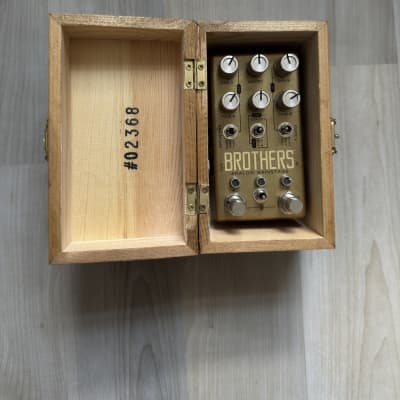

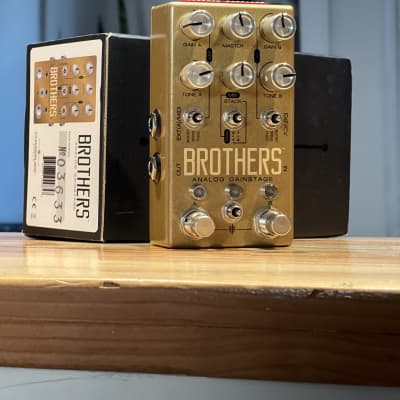

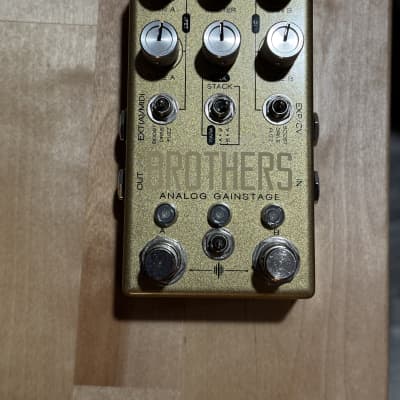

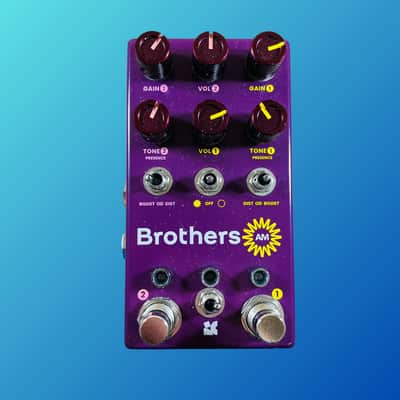

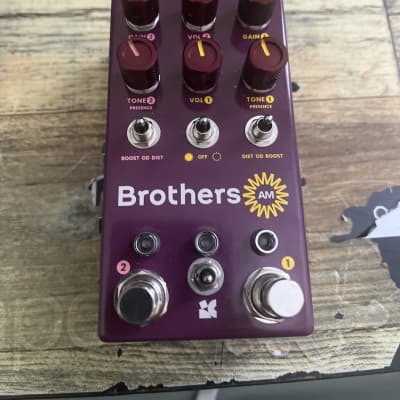

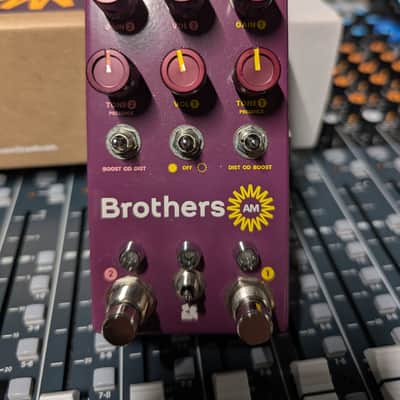

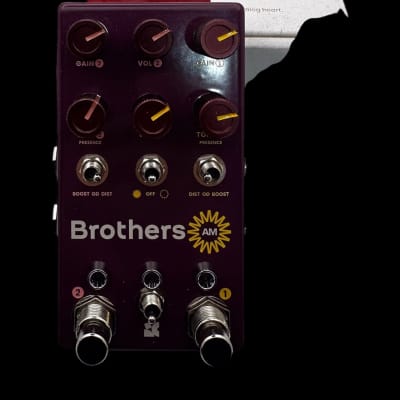

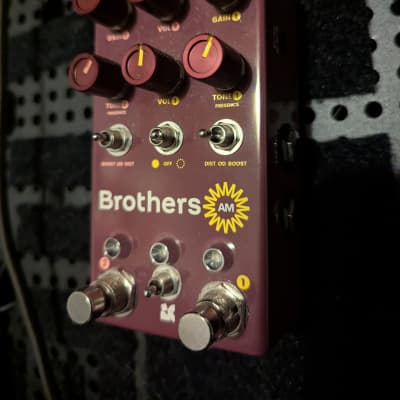

Brothers

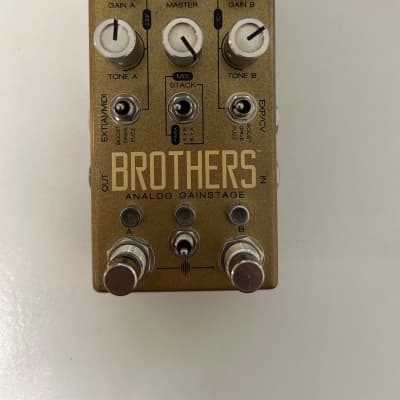

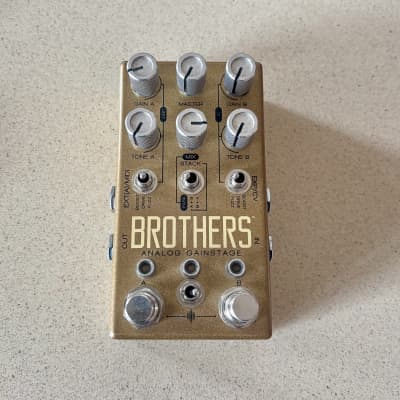

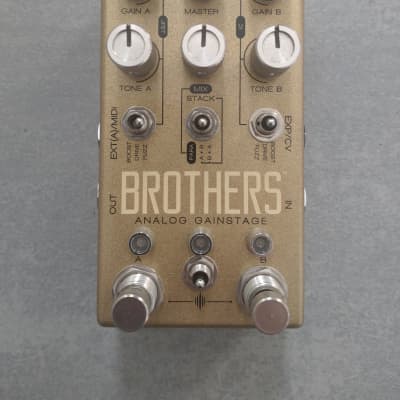

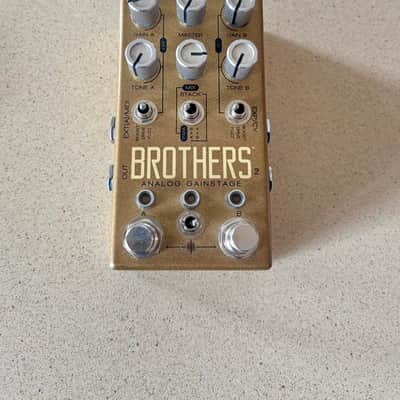

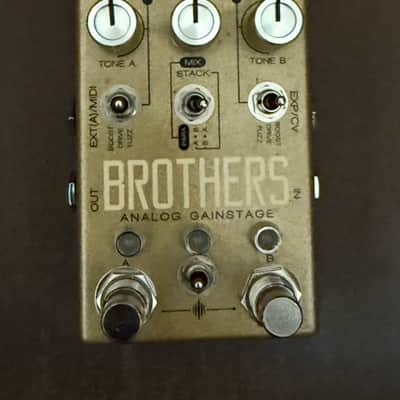

The Brothers by Chase Bliss Audio is an analog gain stage effect pedal designed in collaboration with Resonant Electronic Design™. It features two independent JFET / IC analog channels comprising a total of six unique boost, drive, or fuzz circuits in one small enclosure. The pedal can be routed in thirty-three distinct ways, including mixing them in parallel or changing the order of the effects. It offers unprecedented effects and features that have never been heard or offered in analog stompboxes due to its digital control of the effect. The pedal can save everything and recall presets instantly, on- the-fly either on the pedal or with MIDI. Every knob and switch is connected to a little digital brain while your guitar signal stays 100% analog the entire time and never gets digitally processed.

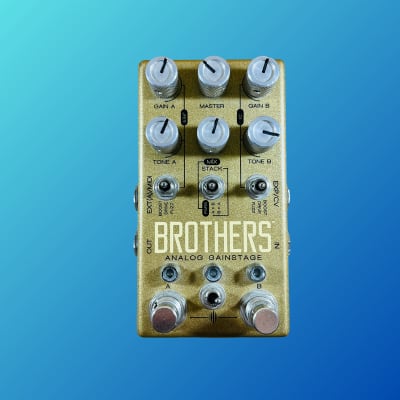

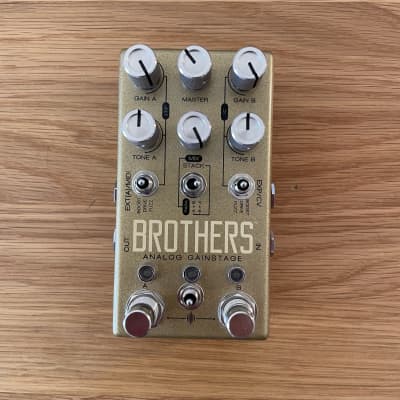

Key Features and Controls:
- MIX / STACK: Controls the mix between the two channels when both are active, serving two purposes dependent on the toggle setting.
- PARA | A \u003e B | B \u003e A TOGGLE: Sets the channels in parallel or series.
- MASTER: Sets the master volume of the pedal regardless of whether channel A or channel B are on individually or used together.
- GAIN A / GAIN B: Sets the gain of channel A / channel B for all modes (boost, drive, fuzz).
- TONE A / TONE B: Controls the tone stack for channel A / channel B for all modes (boost, drive, fuzz).
- A \u0026 B BYPASS STOMPS: Activates or bypasses each channel.
- LOWER TOGGLE: Recalls presets.
- IN / OUT: ¼” mono input jack.
- EXP / CV: ¼” TRS jack for expression pedal.
- EXT(A) / MIDI: ¼” TRS jack for secondary switch to activate / bypass channel A with a momentary normally open (NO) switch or interface the pedal with a Chase Bliss Midibox.

Power and Other Information:
- The pedal consumes ~60mA and should be operated with a standard 2.1mm 9V DC center negative adapter with current supply capabilities of 100mA or more.
- Input impedance of this device is 1M, and output impedance is 10k.

The Brothers by Chase Bliss Audio offers a wide range of tonal possibilities and control options, making it a versatile and powerful addition to any guitarist's setup.
