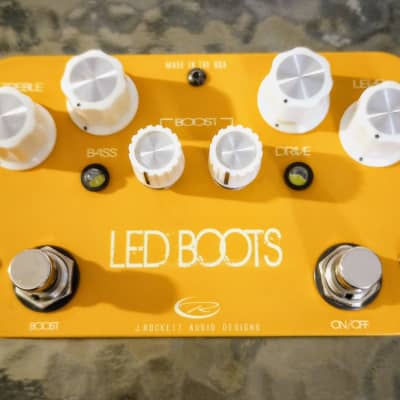

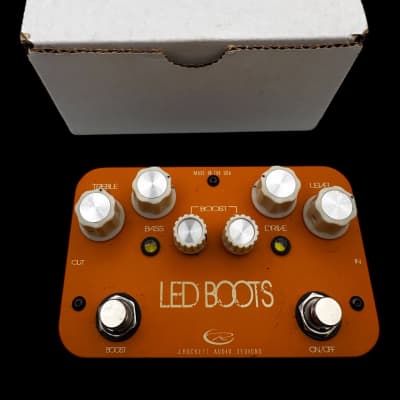

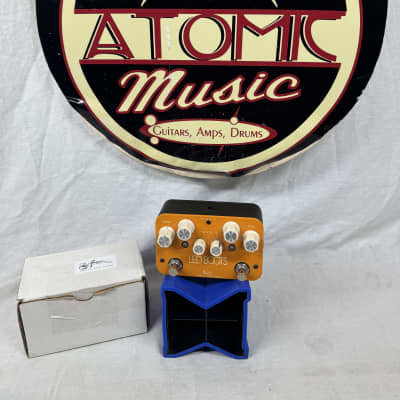

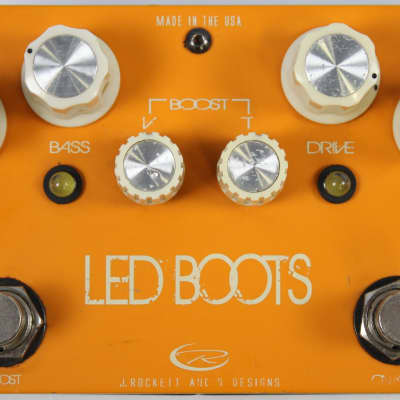

Led Boots

The J. Rockett Led Boots is designed to re-create the signature overdrive and boost tone of Phil Brown, paying homage to the tone of Jeff Beck. It provides a natural, late 60s Marshall tone with a smooth yet articulate overdrive and a boost side with amazing punch and chime. Both sides can be used independently or cascaded together for an amp-like feel.

Specifications:
- Dimensions: 4.75" x 3"
- Power: 9 volt Negative tip adaptor and a 5.5mm x 2.1mm jack, or a single 9 volt battery
- True Bypass Switching

Controls:
- Drive: Level of grit and/or overdrive for the OD side
- Level: Volume for the OD side
- Bass: Controls the bass and/or fatness of the OD side
- Treble: Controls the brightness and/or presence of the OD side
- Boost Sw: Engages the boost only or cascades it with the OD side
- "V": Controls the volume of the boost
- "T": Controls the “chime” of the boost
- On/Off: Engages or disengages the pedal

The power input is a 5.5 mm x 2.1 mm jack with the positive voltage on the outer sleeve. Using an external power supply will automatically disconnect the battery. Disconnect the input jack to preserve battery life when not in use or when not used with an appropriate, external power supply.
