HT-DRIVE

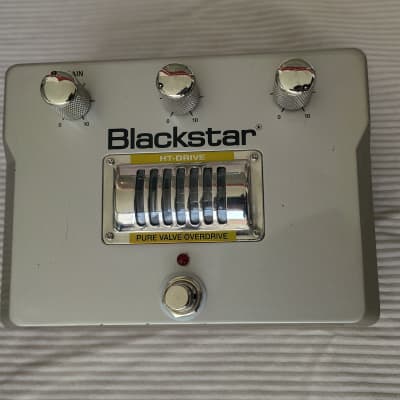

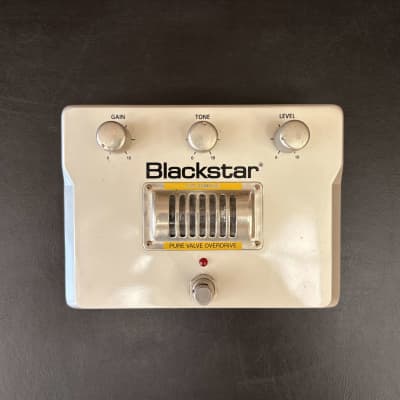

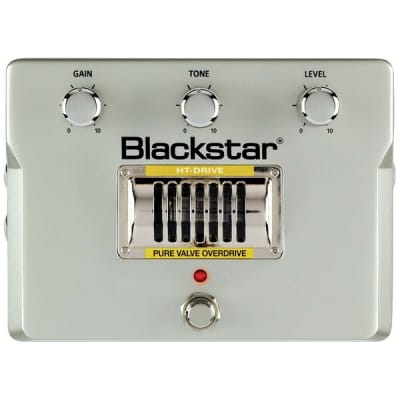

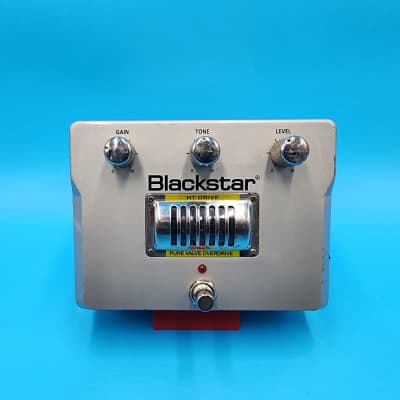

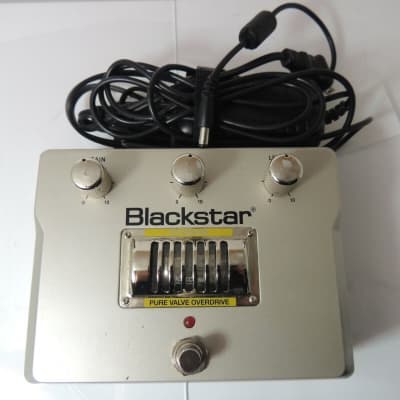

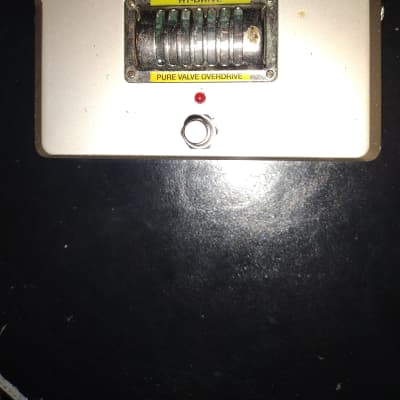

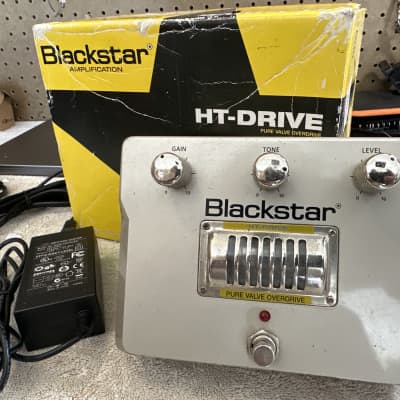

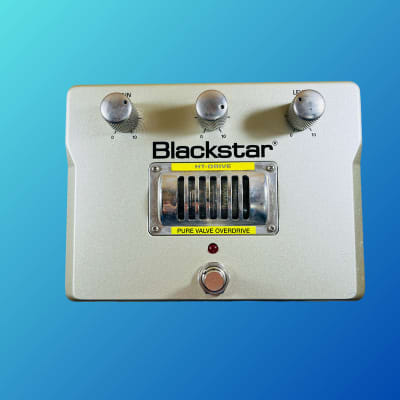

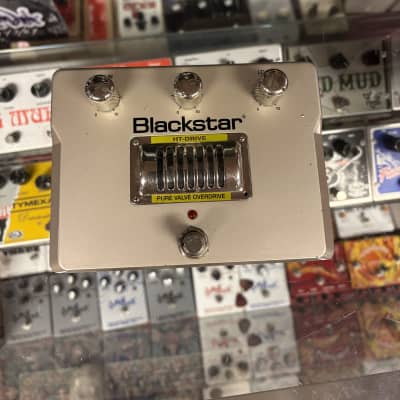

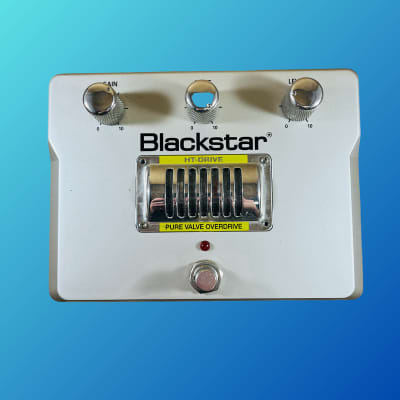

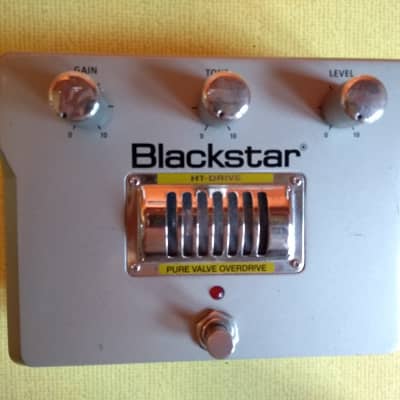

The Blackstar HT-DRIVE is a tube overdrive pedal featuring dual cascaded, high voltage, triode valve stages that deliver gain from warm boost to screaming valve saturation. It is equipped with a unique 'A-Class' tone control that cuts the fizz without making the backed-off tone sound dull and lifeless. The pedal also includes a full, no-compromise, speaker-emulated output for recording, allowing for a natural valve overdrive sound straight to tape or disk.

The technical specifications of the HT-DRIVE are as follows:
- Power: 22V DC
- Maximum Current Draw: 1.1A
- Controls: Gain, Tone, Level
- Valve: ECC83 / 12AX7
- Switches: On/Off Switch
- Indicators: Effect On/Off, Power On/Off (Valve Backlight LED)
- Jacks: Input, Output, Emulated Output
- Input Impedance: 1MΩ
- Output Impedance: < 1KΩ
- Dimensions (mm): 160 x 119 x 80
- Weight: 1.2kg
- DC Adaptor: ADA Series supplied

The Gain control adjusts the amount of overdrive or distortion, the Tone control allows precise adjustment of the treble frequencies, and the Level control sets the overall level or volume from the HT-DRIVE. Additionally, the pedal features an Output for connection to the input of an amplifier or other pedals, and a Speaker Emulated Output that emulates the tonal characteristics of a guitar speaker cabinet for connection to a recording device or mixing desk.
