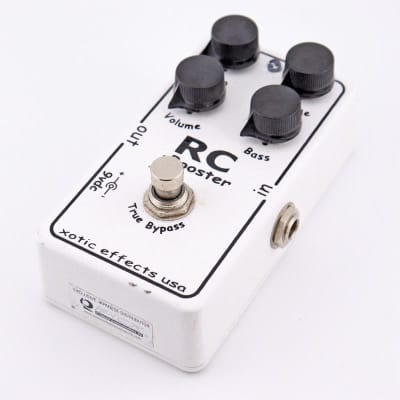

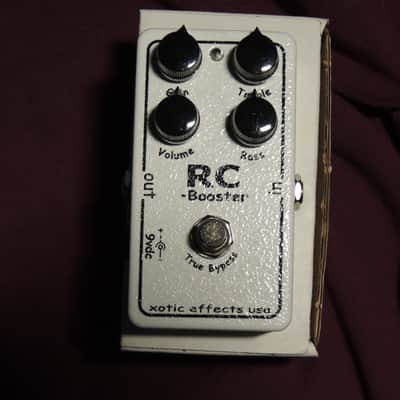

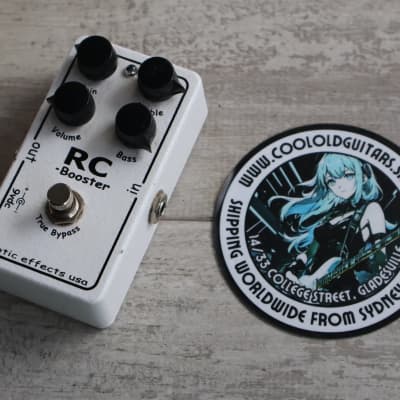

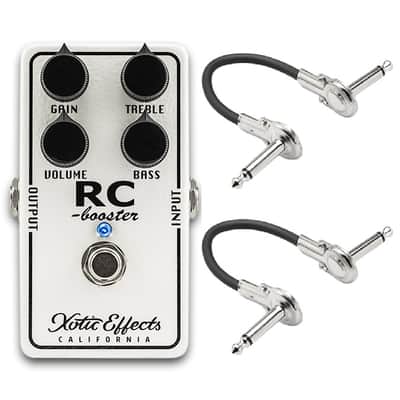

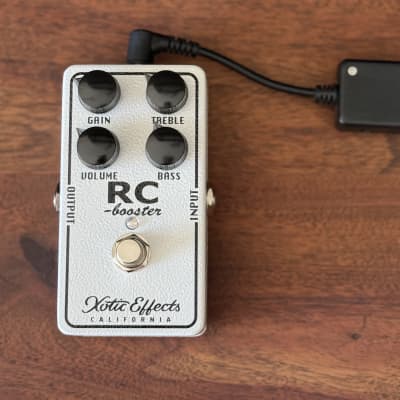

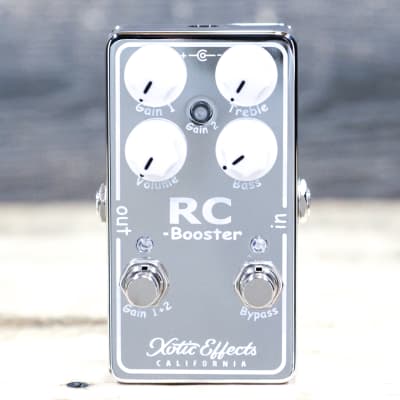

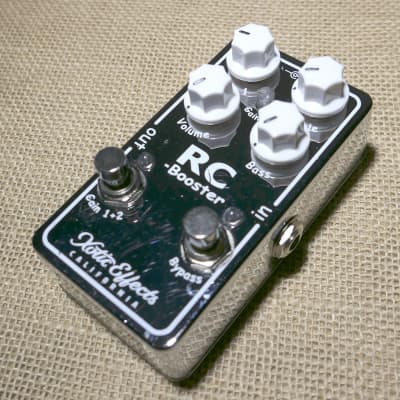

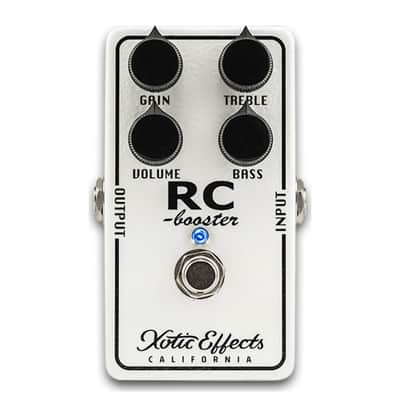

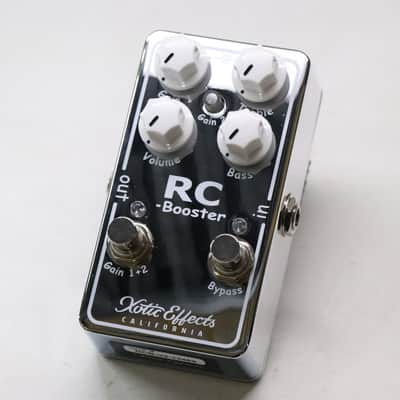

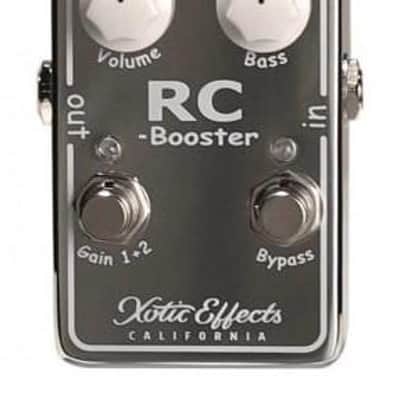

RC Booster

The Xotic Effects RC Booster is a versatile pedal designed to provide a transparent 20db+ clean boost and a +- 15db 2-band active EQ without compromising the original tone integrity. It addresses sound degradation caused by long instrument cables and/or effect chains between the guitar and amp by strengthening the original signal. The pedal features active Treble, Bass, Gain, and Volume controls for limitless tone shaping, and it includes a Gain switch for even fatter tones.

Technical Specifications:
- Dimensions (W/D/H): 4.39" x 2.38" x 1.98" (112mm X 60mm X 50mm)
- Weight: 0.6 lbs. (280g)
- Bypass: True Bypass Switching
- Power Consumption: 9VDC/5mA
- Battery Type: 9VDC (006P) x 1
- AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
- Input Impedance: 500k ohm (min)
- Output Impedance: 10k ohm

The RC Booster can be used with an AC adaptor (optional) or a 9V battery, and it offers true bypass for eliminating any signal interference when switched off. Additionally, it can be run at 9v-18v for more headroom, and its simple treble and bass controls allow for easy and accurate sound adjustments.
