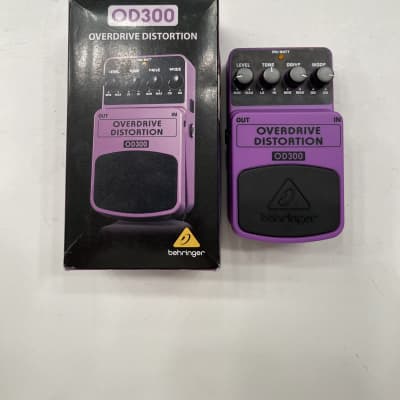

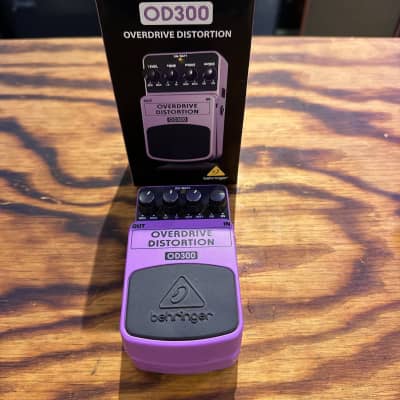

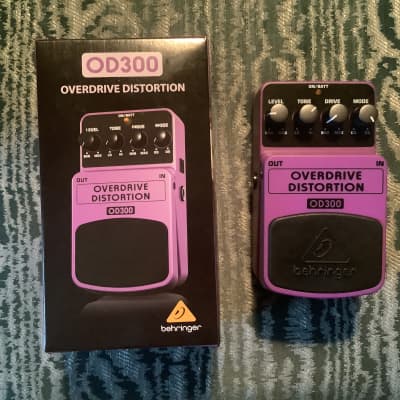

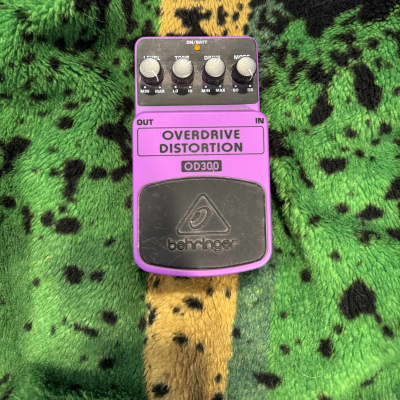

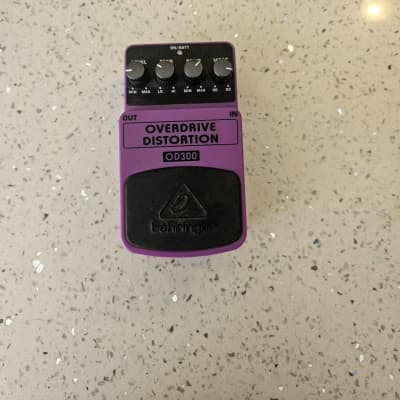

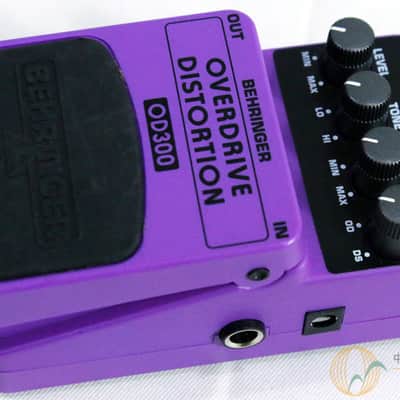

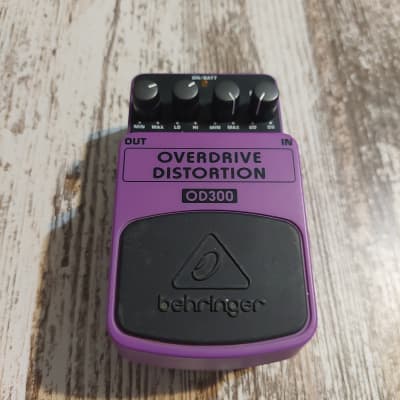

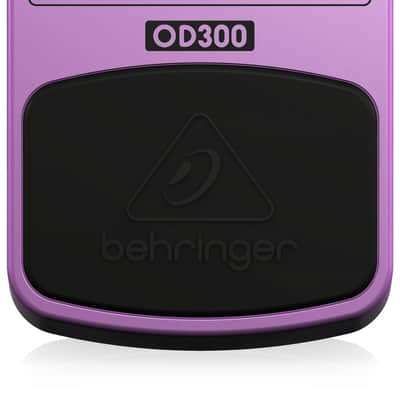

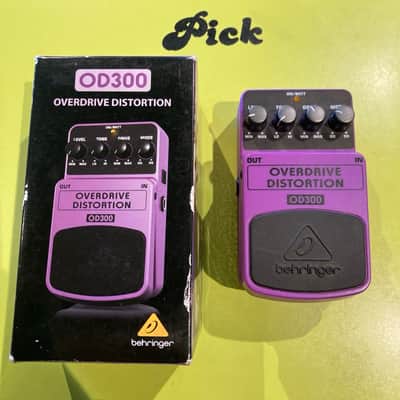

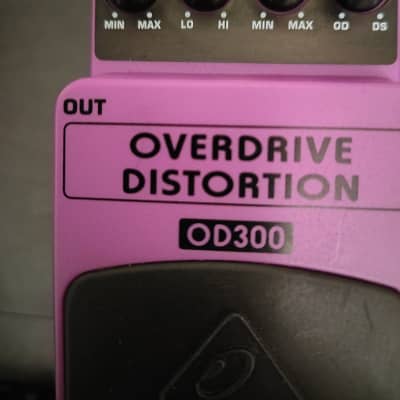

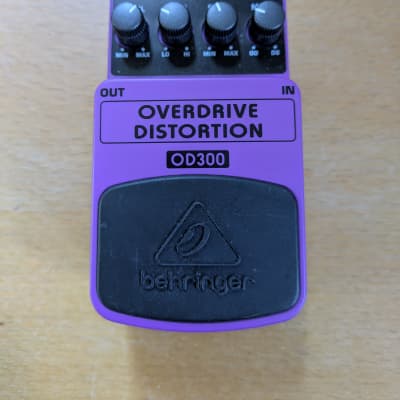

OD300 Overdrive/Distortion

The Behringer OD300 Overdrive/Distortion is a 2-mode effects pedal designed for electric guitars. It offers the ability to create state-of-the-art overdrive, distortion, or a combination of both effects. The pedal features the following controls:

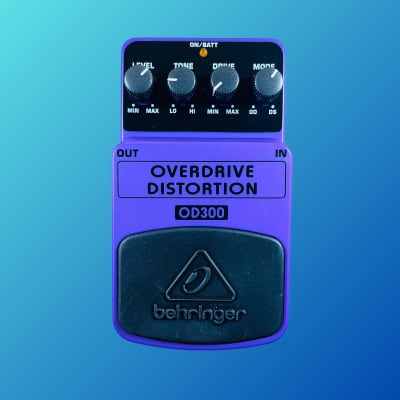

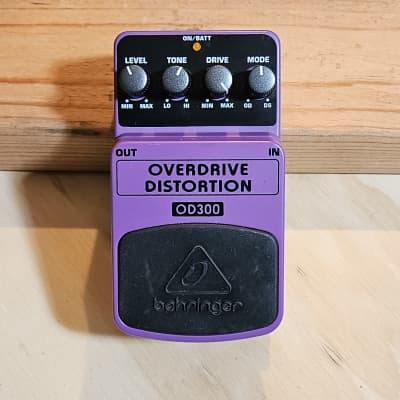

1. LEVEL: Adjusts the output level.
2. TONE: Shapes the overall sound.
3. DRIVE: Adjusts the intensity of the overdrive/distortion effect.
4. MODE: Balances between overdrive and distortion effects, with the leftmost position providing pure overdrive and the rightmost position providing pure distortion.
5. ON/BATT LED: Illuminates when the effect is activated and serves as a battery level indicator.

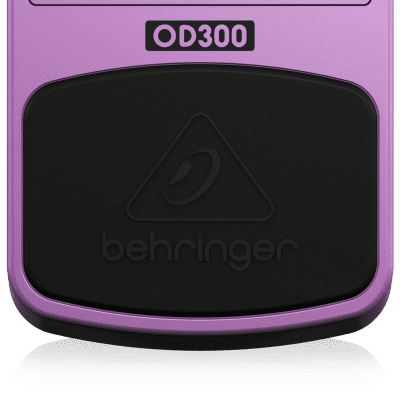

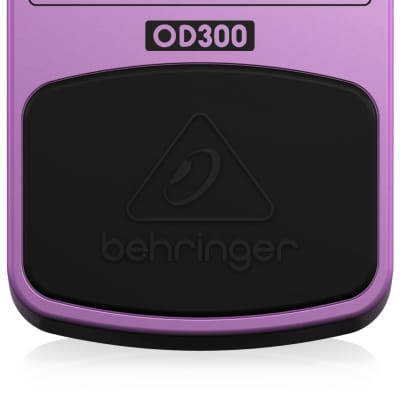

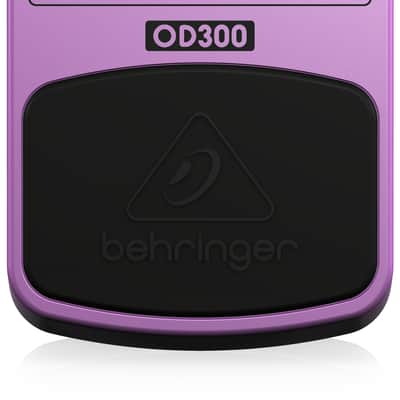

6. Footswitch: Activates/deactivates the effect.
7. ¼" TS IN connector: Input for the instrument cable.
8. ¼" TS OUT connector: Sends the signal to the amplifier.

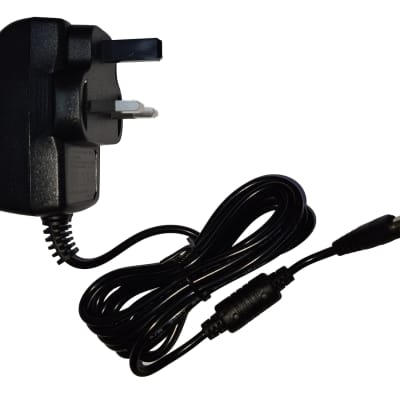

9. DC IN connection: Input for a 9V power supply (not included).
10. Battery compartment: Located underneath the pedal cover for 9V battery installation or replacement.

The OD300 has no on/off switch and begins running as soon as the jack is inserted into the IN connector. When not in use, removing the jack from the IN connector extends the battery life.

Technical Specifications:
- Input Impedance: 500 kΩ
- Output Impedance: 1 kΩ
- Power Supply: 9V DC, 100 mA regulated
- Power Connector: 2 mm DC jack, negative center
- Battery: 9V type 6LR61
- Power Consumption: 30 mA
- Dimensions: Approximately 2 1/8 x 2 3/4 x 4 4/5" (H x W x D)
- Weight: Approximately 0.73 lbs / 0.33 kg
