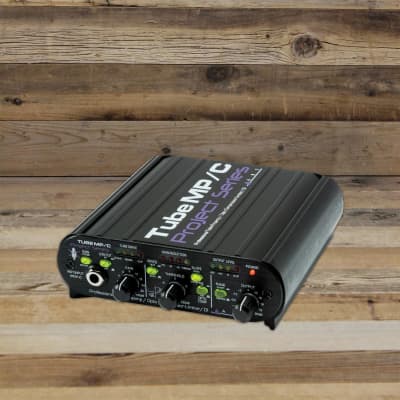

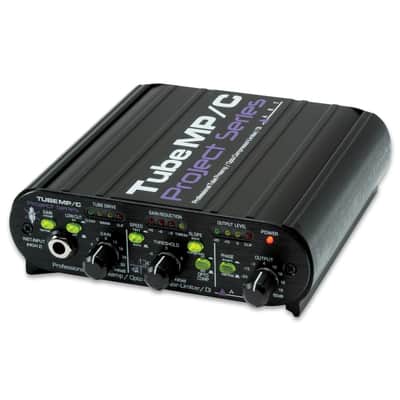

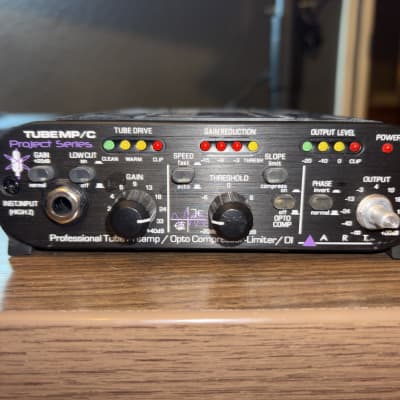

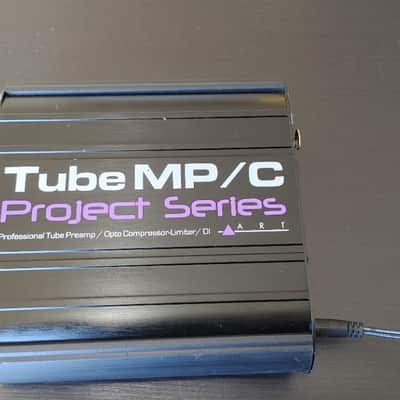

Tube MP/C

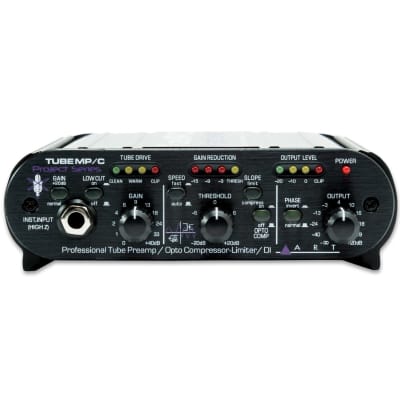

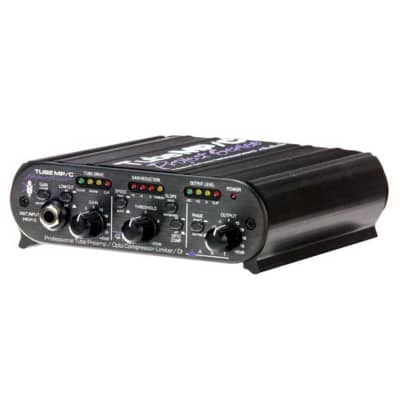

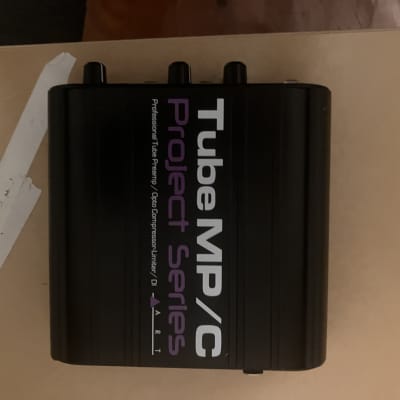

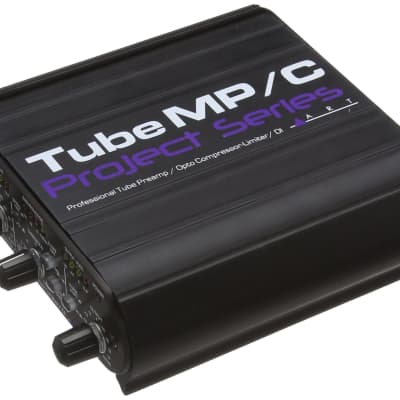

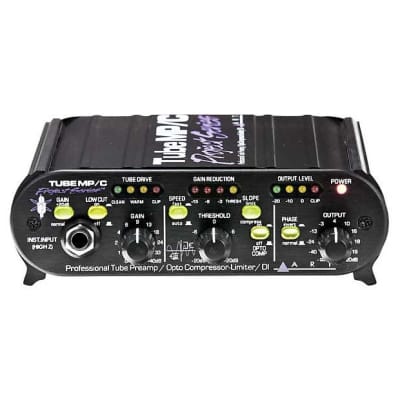

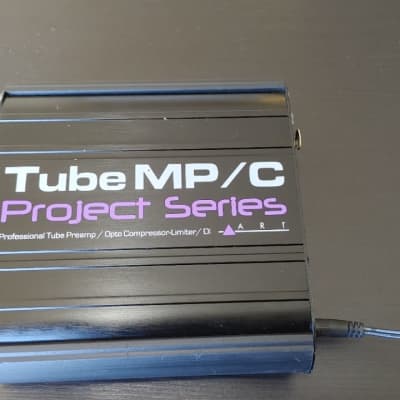

The ART Tube MP/C is a versatile tool for audio engineering and recording, featuring two independent circuits: a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control. Here are some of its key features and technical specifications:

- Tube-based mic/line preamplifier with up to 80 dB of gain
- Hand-selected 12AX7a tube
- Optical (VCA-less) compressor circuitry for transparent dynamics control
- 1/4" TS unbalanced inputs and outputs, as well as XLR balanced inputs and outputs
- Transformer isolated XLR output
- Selectable output range for Line/Instrument interface levels
- +48V phantom power
- Phase reversal switch
- Selectable release time settings
- Custom extruded aluminum chassis
- Frequency Response: 30 Hz – 60 kHz +/- 1 dB balanced output, 20 Hz – 60 kHz +/- 1dB 1/4″ output
- Total Harmonic Distortion: <0.1% @ max gain
- Equivalent Input Noise: -128dBu typical (A-weighted, Shorted XLR balanced input, gain @ max)
- Input Impedance: 1M Ohms 1/4" input, 5K Ohms XLR input

The unit requires a 9VAC power supply rated for at least 1000mA and operates at 100 to 125VAC, 50 to 60Hz. It also features a power switch, balanced and unbalanced output connections, and a phantom power switch for +48 volts DC phantom power.

The Tube MP/C is designed to seamlessly integrate with any recording, sound- reinforcement, or electronic instrument setup, and it offers exceptional sound quality and versatile functionality for various audio applications.
