X-11

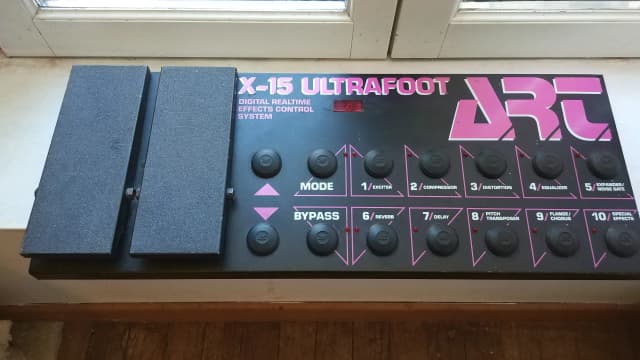

X-15

The X-15 Ultrafoot by ART is a real-time MIDI foot controller designed to provide flexible control over MIDI-controllable devices. Here are some of its features and technical specifications: \- Instant access to individual effects \- Two real-time assignable expression pedals \- Simple "plug in and go" operation \- DC bypass out jack for use with older units \- Rugged steel assembly \- MIDI IN, OUT, & THRU \- Send MIDI data on three separate channels at once \- Durable composite activator pads \- Non-volatile memory to store and remember changes \- Bright visible program display \- Switchable LED indicator lights \- Extra heavy-duty scuff-resistant paint \- Ability to dump parameters to MIDI storage device The X-15 Ultrafoot has two operating modes: Preset and Effect modes. In Preset mode, the Bank up and down pads rotate through banks, and pressing a numbered pad selects a preset in the bank and sends a MIDI program change message. In Effect mode, the Bank up and down pads increment or decrement through presets, and the numbered pads function as MIDI on/off controllers for individual effects. The X-15 Ultrafoot is fully programmable, allowing users to assign MIDI controllers to the expression pedals, control individual effects, and customize various parameters such as system MIDI channel, bypass mode, and pedal inter-message delay time.

X-11

X-11

X-15

The X-15 Ultrafoot by ART is a real-time MIDI foot controller designed to provide flexible control over MIDI-controllable devices. Here are some of its features and technical specifications: \- Instant access to individual effects \- Two real-time assignable expression pedals \- Simple "plug in and go" operation \- DC bypass out jack for use with older units \- Rugged steel assembly \- MIDI IN, OUT, & THRU \- Send MIDI data on three separate channels at once \- Durable composite activator pads \- Non-volatile memory to store and remember changes \- Bright visible program display \- Switchable LED indicator lights \- Extra heavy-duty scuff-resistant paint \- Ability to dump parameters to MIDI storage device The X-15 Ultrafoot has two operating modes: Preset and Effect modes. In Preset mode, the Bank up and down pads rotate through banks, and pressing a numbered pad selects a preset in the bank and sends a MIDI program change message. In Effect mode, the Bank up and down pads increment or decrement through presets, and the numbered pads function as MIDI on/off controllers for individual effects. The X-15 Ultrafoot is fully programmable, allowing users to assign MIDI controllers to the expression pedals, control individual effects, and customize various parameters such as system MIDI channel, bypass mode, and pedal inter-message delay time.

Tube MP/C

The ART Tube MP/C is a versatile tool for audio engineering and recording, featuring two independent circuits: a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control. Here are some of its key features and technical specifications: \- Tube-based mic/line preamplifier with up to 80 dB of gain \- Hand-selected 12AX7a tube \- Optical (VCA-less) compressor circuitry for transparent dynamics control \- 1/4" TS unbalanced inputs and outputs, as well as XLR balanced inputs and outputs \- Transformer isolated XLR output \- Selectable output range for Line/Instrument interface levels \- +48V phantom power \- Phase reversal switch \- Selectable release time settings \- Custom extruded aluminum chassis \- Frequency Response: 30 Hz – 60 kHz +/- 1 dB balanced output, 20 Hz – 60 kHz +/- 1dB 1/4″ output \- Total Harmonic Distortion: <0.1% @ max gain \- Equivalent Input Noise: -128dBu typical (A-weighted, Shorted XLR balanced input, gain @ max) \- Input Impedance: 1M Ohms 1/4" input, 5K Ohms XLR input The unit requires a 9VAC power supply rated for at least 1000mA and operates at 100 to 125VAC, 50 to 60Hz. It also features a power switch, balanced and unbalanced output connections, and a phantom power switch for +48 volts DC phantom power. The Tube MP/C is designed to seamlessly integrate with any recording, sound- reinforcement, or electronic instrument setup, and it offers exceptional sound quality and versatile functionality for various audio applications.

Tube MP/C

The ART Tube MP/C is a versatile tool for audio engineering and recording, featuring two independent circuits: a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control. Here are some of its key features and technical specifications: \- Tube-based mic/line preamplifier with up to 80 dB of gain \- Hand-selected 12AX7a tube \- Optical (VCA-less) compressor circuitry for transparent dynamics control \- 1/4" TS unbalanced inputs and outputs, as well as XLR balanced inputs and outputs \- Transformer isolated XLR output \- Selectable output range for Line/Instrument interface levels \- +48V phantom power \- Phase reversal switch \- Selectable release time settings \- Custom extruded aluminum chassis \- Frequency Response: 30 Hz – 60 kHz +/- 1 dB balanced output, 20 Hz – 60 kHz +/- 1dB 1/4″ output \- Total Harmonic Distortion: <0.1% @ max gain \- Equivalent Input Noise: -128dBu typical (A-weighted, Shorted XLR balanced input, gain @ max) \- Input Impedance: 1M Ohms 1/4" input, 5K Ohms XLR input The unit requires a 9VAC power supply rated for at least 1000mA and operates at 100 to 125VAC, 50 to 60Hz. It also features a power switch, balanced and unbalanced output connections, and a phantom power switch for +48 volts DC phantom power. The Tube MP/C is designed to seamlessly integrate with any recording, sound- reinforcement, or electronic instrument setup, and it offers exceptional sound quality and versatile functionality for various audio applications.

Tube MP Project Series

The ART Tube MP Project Series is a professional quality audio interface designed to connect microphone, instrument, and line level signals to a mixer or other audio input. It features an extremely low noise discrete front end, providing up to 70dB of clean, "musical" gain and high output signal drive capability. The unit also includes a fast FET limiter to prevent overload, switch selectable input impedance, precision LED metering, and a built-in low noise phantom power supply. Key Features: \- Extremely Low Noise Discrete Front End \- Up to 70dB of Clean, “Musical” Gain \- High Output Signal Drive Capability \- Fast FET Limiter to Prevent Overload \- Switch Selectable Input Impedance \- Precision LED Metering \- Built-in Low Noise Phantom Power Supply \- Compact, Stackable all Aluminum Chassis \- XLR and 1/4″ Inputs and Outputs \- Phase Invert Switch \- High Cut Filter Switch \- Variable Input and Output Controls Specifications: \- Frequency Response: 10Hz to 40kHz, +/-1 dB (typical) \- Total Harmonic Distortion: <0.05% (typical) \- CMRR: >60dB (typical) \- Dynamic Range: >100dB (20Hz to 20kHz) \- Equivalent Input Noise: <-130dB (XLR to XLR A-weighted) \- Input Impedance: Switchable, 4.7k Ω / 600 Ω (XLR) \- Input/Output Connections: Input: 1/4″ TRS unbalanced (1meg Ω), XLR female balanced. Output: 1/4″ TRS unbalanced (600 Ω), XLR male balanced (<300 Ω) \- Maximum Gain: 70dB (XLR – XLR), +50dB (1/4″ – XLR) \- Input Gain Pad: Switchable, 20dB \- Maximum Input Level: +17dBu (1/4″), +16dBu (XLR) \- Maximum Output Level: +20dBu (1/4″), +26dBu (XLR) \- Low Cut Filter: Switchable, -3dB @ 40Hz \- Output Phase: Switchable, Normal/Invert \- Output Limiter Type: Switchable, Fast & Musical FET Limiter, >20dB limit range \- Phantom Power: Switchable, +48V DC, filtered, current limited \- Signal Metering: Precise LED array with a fast attack and moderate release \- Chassis Type: Aluminum Anodized with integral/stackable rubber sides \- Power Requirements: 10VAC @ 700mA (typ) \- Tube Type: 12AX7A hand selected \- Dimensions: 6.5″D x 5.9″ W x 1.75″ H (165mm x 150mm x 44.5mm) \- Weight: 2.5 lbs (1.14 kg)

Tube MP

The Tube MP by ART is a versatile tube microphone preamplifier with the following technical specifications and features: \- Dimensions: 5.0”H x 5.5” W x 2.0”H \- Weight: 1.5 lbs \- Input Connections: XLR (balanced), ¼”TS \- Output Connections: XLR (balanced), ¼”TS \- Input Impedance: XLR, ¼” 2K ohms, 840k ohms \- Output Impedance: XLR, ¼” 600 ohms, 300ohms \- Maximum Input Level: XLR +14dBu, ¼” +22dBu \- Maximum Output Level: XLR +28dBu, ¼” +22dBu \- CMRR: >75dB (typical @ 1kHz) \- Frequency Response: 10Hz to 30kHz, +/-0.5dB \- Dynamic Range: >100dB (20-20kHz) typical \- Total Harmonic Distortion (THD): <0.1% (typical) \- Maximum Gain: XLR to XLR 60dB (typical), ¼” to ¼” 44dB (typical), XLR to ¼” 54dB (typical), ¼” to XLR 50dB (typical) \- Equivalent Input Noise (EIN): XLR to XLR -129dBu (A weighted), ¼” to ¼” -105dBu (A weighted) \- Tube Type: 12AX7A, Dual Triode, Hand Selected \- Power Requirements: USA – 9VAC @ .8A (typ.) Export units configured for country of destination Key Features: \- Built-in analog VU metering \- Built-in OPL (switch selectable) \- Over 60dB of gain \- Hand-selected 12AX7A dual triode tube \- Balanced XLR inputs and outputs \- ¼” High impedance Instrument input and ¼” line level output \- +48V Phantom power (switch selectable) \- Phase Reverse Switch \- Gain (+20dB) Switch \- Input Gain Control \- Output Level Control \- Multifunction, dual-color LED Power/Clip/Limit indicator \- Fully shielded all-steel chassis \- Designed and developed in the USA The Tube MP Studio extends its range of applications by adding an output protection limiter (OPL) to precisely control output peaks and analog VU metering to aid in setting and maintaining proper signal levels. It can be used in various applications including recording, project and home studios, and as a direct box with impedance matching and preamplification for instrument or line-level sources.

Tube MP/C

The ART Tube MP/C is a versatile tool for audio engineering and recording, featuring two independent circuits: a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control. Here are some of its key features and technical specifications: \- Tube-based mic/line preamplifier with up to 80 dB of gain \- Hand-selected 12AX7a tube \- Optical (VCA-less) compressor circuitry for transparent dynamics control \- 1/4" TS unbalanced inputs and outputs, as well as XLR balanced inputs and outputs \- Transformer isolated XLR output \- Selectable output range for Line/Instrument interface levels \- +48V phantom power \- Phase reversal switch \- Selectable release time settings \- Custom extruded aluminum chassis \- Frequency Response: 30 Hz – 60 kHz +/- 1 dB balanced output, 20 Hz – 60 kHz +/- 1dB 1/4″ output \- Total Harmonic Distortion: <0.1% @ max gain \- Equivalent Input Noise: -128dBu typical (A-weighted, Shorted XLR balanced input, gain @ max) \- Input Impedance: 1M Ohms 1/4" input, 5K Ohms XLR input The unit requires a 9VAC power supply rated for at least 1000mA and operates at 100 to 125VAC, 50 to 60Hz. It also features a power switch, balanced and unbalanced output connections, and a phantom power switch for +48 volts DC phantom power. The Tube MP/C is designed to seamlessly integrate with any recording, sound- reinforcement, or electronic instrument setup, and it offers exceptional sound quality and versatile functionality for various audio applications.

Tube MP Studio V3

The Tube MP Studio V3 by ART features the innovative V3 (Variable Valve Voicing) Technology, exclusive to ART microphone preamplification systems. This technology provides optimized reference points for the recording process, with presets designed by industry professionals for various instruments such as guitars, keyboards, bass guitars, drums, and vocals. The V3 presets ensure professional sound quality for all recordings. Additionally, the Tube MP Studio V3 incorporates ART's OPL (Output Protection Limiter) technology, which accurately controls and maintains the output peak signal, protecting the next component in the signal chain from clipping and overloads. This makes it suitable for use with computers, hard-disk recorders, or digital multitrack recorders, delivering professional studio results at a fraction of the cost of comparable equipment. The preamp offers over 70dB of gain, a smooth, warm, and fat sound quality, variable input and output gain controls, XLR and 1/4" inputs and outputs, +48 volts phantom power, and a phase reversal switch. It is designed for superior preamplification for microphones, instruments, and line-level sources, and is also suitable as a tube DI. The technical specifications of the Tube MP Studio V3 include a dynamic range of over 100dB (20Hz to 20kHz), frequency response of 10Hz to 20kHz (+0, -1dB), THD of less than 0.1% (typical), CMMR of over 75dB (typical at 1kHz), EIN of -129dBu ('A' weighted XLR to XLR), maximum gain of 70dB (XLR to XLR typical), and maximum input and output levels for both XLR and 1/4" connections. The unit has various input and output impedance values and requires 9 VAC @ 700ma (typ) power. The Tube MP Studio V3 is suitable for professional, project, and home recording, live sound systems/PA, DJ sound systems, and monitor systems, among other applications. It is designed for years of continuous, reliable performance and features rugged all-steel construction. The preamp's primary function is as a microphone preamp with +48V phantom power, variable gain, and phase reverse switching, and it also serves as a versatile tube-driven direct box for any instrument source.

Tube MP Project Series

The ART Tube MP Project Series is a professional quality audio interface designed to connect microphone, instrument, and line level signals to a mixer or other audio input. It features an extremely low noise discrete front end, providing up to 70dB of clean, "musical" gain and high output signal drive capability. The unit also includes a fast FET limiter to prevent overload, switch selectable input impedance, precision LED metering, and a built-in low noise phantom power supply. Key Features: \- Extremely Low Noise Discrete Front End \- Up to 70dB of Clean, “Musical” Gain \- High Output Signal Drive Capability \- Fast FET Limiter to Prevent Overload \- Switch Selectable Input Impedance \- Precision LED Metering \- Built-in Low Noise Phantom Power Supply \- Compact, Stackable all Aluminum Chassis \- XLR and 1/4″ Inputs and Outputs \- Phase Invert Switch \- High Cut Filter Switch \- Variable Input and Output Controls Specifications: \- Frequency Response: 10Hz to 40kHz, +/-1 dB (typical) \- Total Harmonic Distortion: <0.05% (typical) \- CMRR: >60dB (typical) \- Dynamic Range: >100dB (20Hz to 20kHz) \- Equivalent Input Noise: <-130dB (XLR to XLR A-weighted) \- Input Impedance: Switchable, 4.7k Ω / 600 Ω (XLR) \- Input/Output Connections: Input: 1/4″ TRS unbalanced (1meg Ω), XLR female balanced. Output: 1/4″ TRS unbalanced (600 Ω), XLR male balanced (<300 Ω) \- Maximum Gain: 70dB (XLR – XLR), +50dB (1/4″ – XLR) \- Input Gain Pad: Switchable, 20dB \- Maximum Input Level: +17dBu (1/4″), +16dBu (XLR) \- Maximum Output Level: +20dBu (1/4″), +26dBu (XLR) \- Low Cut Filter: Switchable, -3dB @ 40Hz \- Output Phase: Switchable, Normal/Invert \- Output Limiter Type: Switchable, Fast & Musical FET Limiter, >20dB limit range \- Phantom Power: Switchable, +48V DC, filtered, current limited \- Signal Metering: Precise LED array with a fast attack and moderate release \- Chassis Type: Aluminum Anodized with integral/stackable rubber sides \- Power Requirements: 10VAC @ 700mA (typ) \- Tube Type: 12AX7A hand selected \- Dimensions: 6.5″D x 5.9″ W x 1.75″ H (165mm x 150mm x 44.5mm) \- Weight: 2.5 lbs (1.14 kg)

Tube MP

The Tube MP by ART is a versatile tube microphone preamplifier with the following technical specifications and features: \- Dimensions: 5.0”H x 5.5” W x 2.0”H \- Weight: 1.5 lbs \- Input Connections: XLR (balanced), ¼”TS \- Output Connections: XLR (balanced), ¼”TS \- Input Impedance: XLR, ¼” 2K ohms, 840k ohms \- Output Impedance: XLR, ¼” 600 ohms, 300ohms \- Maximum Input Level: XLR +14dBu, ¼” +22dBu \- Maximum Output Level: XLR +28dBu, ¼” +22dBu \- CMRR: >75dB (typical @ 1kHz) \- Frequency Response: 10Hz to 30kHz, +/-0.5dB \- Dynamic Range: >100dB (20-20kHz) typical \- Total Harmonic Distortion (THD): <0.1% (typical) \- Maximum Gain: XLR to XLR 60dB (typical), ¼” to ¼” 44dB (typical), XLR to ¼” 54dB (typical), ¼” to XLR 50dB (typical) \- Equivalent Input Noise (EIN): XLR to XLR -129dBu (A weighted), ¼” to ¼” -105dBu (A weighted) \- Tube Type: 12AX7A, Dual Triode, Hand Selected \- Power Requirements: USA – 9VAC @ .8A (typ.) Export units configured for country of destination Key Features: \- Built-in analog VU metering \- Built-in OPL (switch selectable) \- Over 60dB of gain \- Hand-selected 12AX7A dual triode tube \- Balanced XLR inputs and outputs \- ¼” High impedance Instrument input and ¼” line level output \- +48V Phantom power (switch selectable) \- Phase Reverse Switch \- Gain (+20dB) Switch \- Input Gain Control \- Output Level Control \- Multifunction, dual-color LED Power/Clip/Limit indicator \- Fully shielded all-steel chassis \- Designed and developed in the USA The Tube MP Studio extends its range of applications by adding an output protection limiter (OPL) to precisely control output peaks and analog VU metering to aid in setting and maintaining proper signal levels. It can be used in various applications including recording, project and home studios, and as a direct box with impedance matching and preamplification for instrument or line-level sources.

Tube MP/C

The ART Tube MP/C is a versatile tool for audio engineering and recording, featuring two independent circuits: a tube-based analog preamplifier and a VCA-less compressor with optical gain reduction control. Here are some of its key features and technical specifications: \- Tube-based mic/line preamplifier with up to 80 dB of gain \- Hand-selected 12AX7a tube \- Optical (VCA-less) compressor circuitry for transparent dynamics control \- 1/4" TS unbalanced inputs and outputs, as well as XLR balanced inputs and outputs \- Transformer isolated XLR output \- Selectable output range for Line/Instrument interface levels \- +48V phantom power \- Phase reversal switch \- Selectable release time settings \- Custom extruded aluminum chassis \- Frequency Response: 30 Hz – 60 kHz +/- 1 dB balanced output, 20 Hz – 60 kHz +/- 1dB 1/4″ output \- Total Harmonic Distortion: <0.1% @ max gain \- Equivalent Input Noise: -128dBu typical (A-weighted, Shorted XLR balanced input, gain @ max) \- Input Impedance: 1M Ohms 1/4" input, 5K Ohms XLR input The unit requires a 9VAC power supply rated for at least 1000mA and operates at 100 to 125VAC, 50 to 60Hz. It also features a power switch, balanced and unbalanced output connections, and a phantom power switch for +48 volts DC phantom power. The Tube MP/C is designed to seamlessly integrate with any recording, sound- reinforcement, or electronic instrument setup, and it offers exceptional sound quality and versatile functionality for various audio applications.

X-11

CleanBOX II

The CleanBOX II by ART is a hum eliminator designed to remove ground loops without any signal degradation. Its specifications include a frequency response of 10Hz – 50kHz, +/- .5dB @ +4dBu, THD of .01% Typical @ 1kHz, +18dBu, and <.05% @ 100Hz, +24 dBu. The insertion loss is .4dB @ 100kOhm Load and 5.5dB @ 600Ohm Load. It features ¼” TRS balanced/unbalanced jacks and requires no power (passive). The device is intended to minimize setup to one piece of equipment and can be used to experiment with placing it before or after offending units to remove hum from the system.
