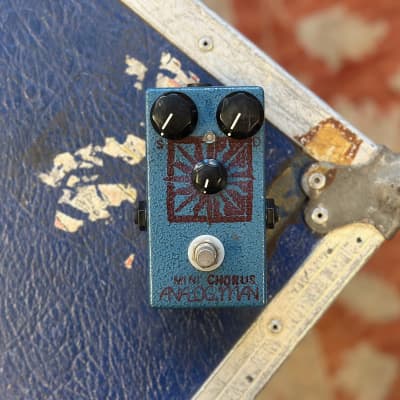

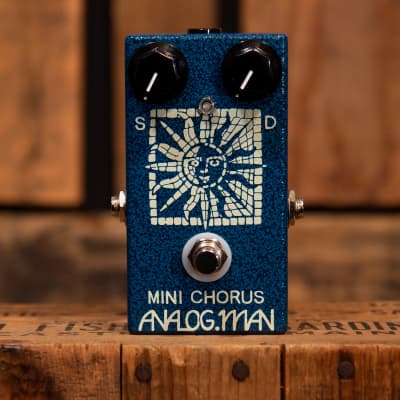

Mini Chorus

The Analog Man Mini Chorus is a compact chorus pedal designed to deliver high- quality chorus effects. Here are the technical specifications and features:

- Size: 2.5" wide x 4.75" long x 1.5" tall (not including switches, jacks, etc. )
- Power: Operates on both battery and DC adapter power
- Options: Available with an external MIX (BLEND) knob and/or a Depth toggle for an additional cost
- Stereo Option: Available with stereo output, side jacks only, and no room for a battery
- Circuitry: Utilizes the original 1024 stage bucket brigade chip for high fidelity, organic sound
- Controls: Features Speed and Depth control knobs for adjusting chorus settings
- True Bypass: Equipped with a true bypass on/off switch to ensure no loss of tone when off
- LED Indicator: Includes an LED ON/OFF status indicator
- Power Jack: Standard power jack allows for 9V DC BOSS style PSA adaptor
- Low Current Draw: Consumes under 10mA when ON
- Build: Constructed with a durable powder-coated case and high-quality circuit boards
- Warranty: Comes with a one-year warranty to the original purchaser

The Mini Chorus offers a wide range of sonic possibilities, providing subtle, almost Dimension D-style chorus effects or immersive swirling modulation. It is designed to maintain high headroom and low noise, making it suitable for use with guitars and synthesizers.

The pedal is hand-assembled in the USA and is available in various configurations to suit different preferences and applications.
