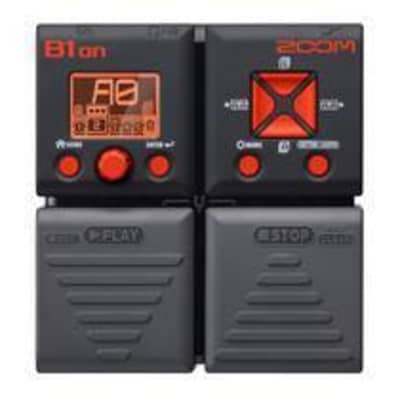

B1on Guitar Pedal By Zoom

B1on

Pedal Manufacturer

Zoom

Description

The Zoom B1on is a versatile bass effects pedal designed to provide a wide range of features and functionality for bassists. Here are the technical specifications and detailed features:

- Number of effects: 100
- Number of simultaneous effects: 5
- Number of patch memories: 100 (10 banks of 10)
- Sampling frequency: 44.1 kHz
- A/D conversion: 24-bit, 128× oversampling
- D/A conversion: 24-bit, 128× oversampling
- Signal Processing: 32-bit floating point & fixed point
- Display: Backlit dot matrix LCD
- Input: Standard mono ¼" phone jack
- Rated input level: -20 dBm
- Input impedance (line): 470 kΩ
- Aux in: Mini stereo (⅛") phone jack
- Rated Input Level: -10 dBm
- Input impedance (line): 1kΩ
- Output: Standard stereo (¼") phone jack
- Maximum line output level: +2 dBm (output impedance load of 10 kΩ or more)
- Maximum headphones output level: 17 mW + 17 mW (into 32Ω load)
- S/N (input conversion noise): 119dB
- Noise floor (residual noise): -97 dBm
- Battery type: AA size (LR6) battery x 4
- Continuous battery operation time: 20 hours when using 4 AA alkaline batteries

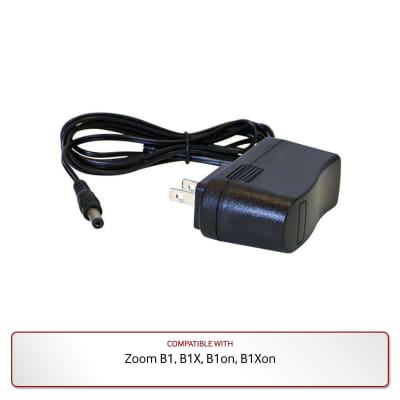

- AC adapter (optional): DC 9V center-negative, 500 mA (Zoom AD-16)
- USB: Firmware update, bus power
- External Dimensions: 154.8mm(D) x 146.0mm(W) x 43.0mm (H)
- Weight: 380g (without batteries)

Features:
- Offers 100 bass effects, including distortion, compression, modulation, delay, reverb, and amp models
- Up to 5 effects can be used simultaneously, chained together in any order
- 68 built-in rhythm accompaniment patterns
- Onboard chromatic tuner supports all standard bass tunings
- Looper feature for recording up to 30 seconds of CD-quality audio
- Streamlined user interface with a large backlit LCD screen
- Built-in expression pedal for real-time control of input level, output level, or any selected effect parameter
- Allows selection and editing of onboard effects
- Ability to create rich, complex effects within the unit itself
- Lightweight and small enough to fit in a gig bag
- Runs on 4 AA batteries or optional AC adapter
- USB port for power and firmware updates

The B1on is a powerful and versatile bass effects pedal that offers a wide range of effects, advanced editing features, and flexible functionality for bassists of all levels.

Watch something on YouTube

Watch B1on Videos, Demos, and Reviews

Watch the latest video demos and reviews for the B1on from YouTube. Stompbx updates this every six months to reflect the most popular reviewers and guitar pedal demos for each pedal.

Reverb Listings

Reverb Listings

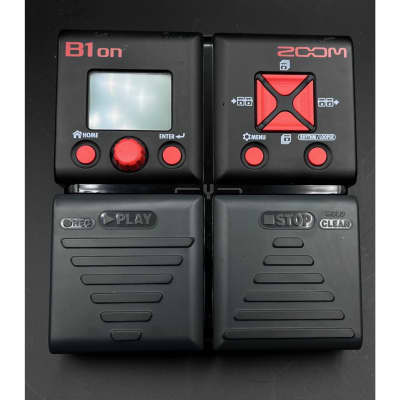

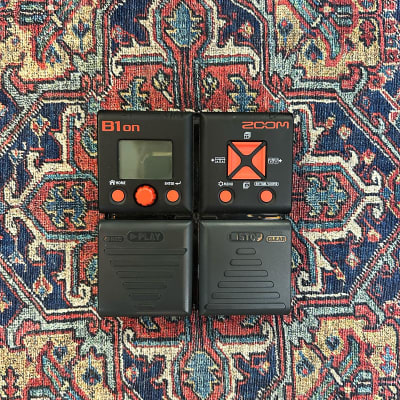

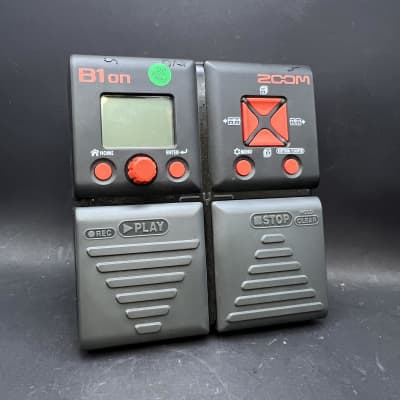

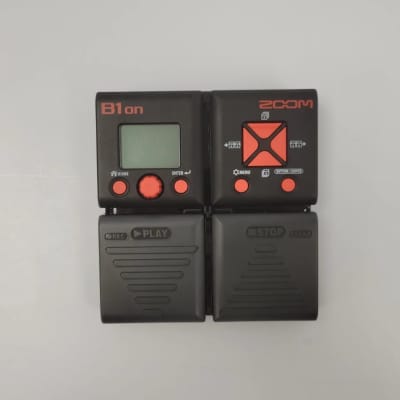

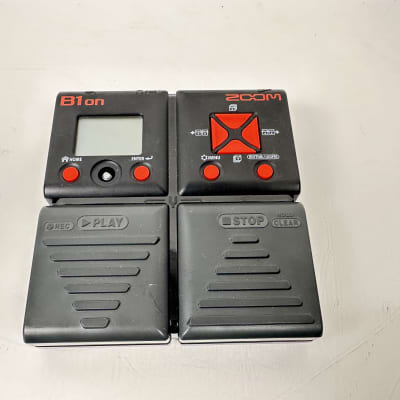

Find Zoom B1on Listings on Reverb

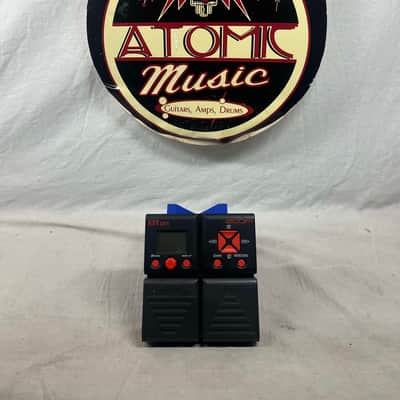

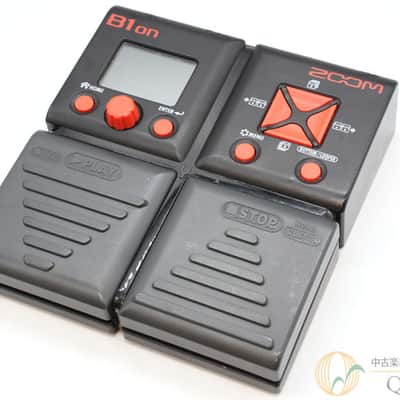

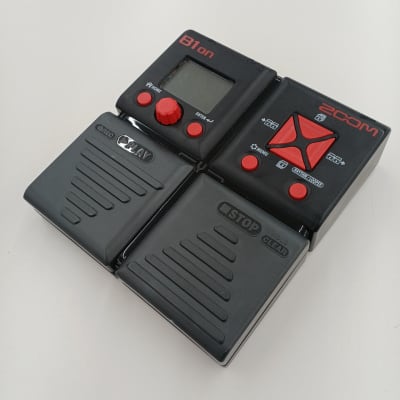

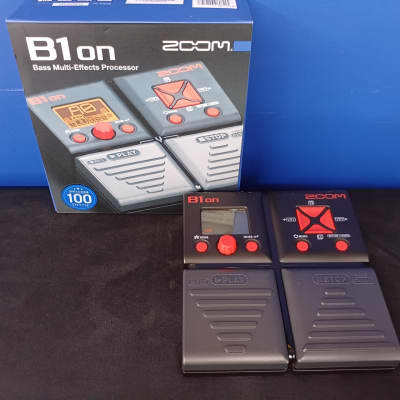

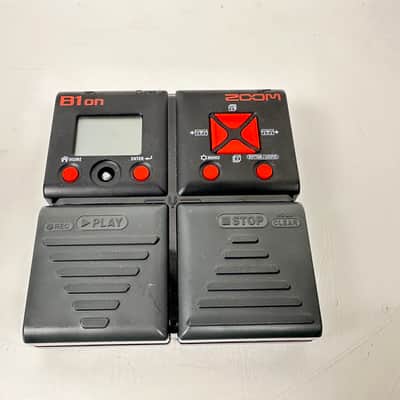

Below are live Reverb listings for the Zoom B1on from Reverb. Stompbx automatically aggregates current offers to give you a quick look at available models, conditions, and prices. Perfect for comparing options and making an informed purchase.
