Studio Compressor Effects Pedal

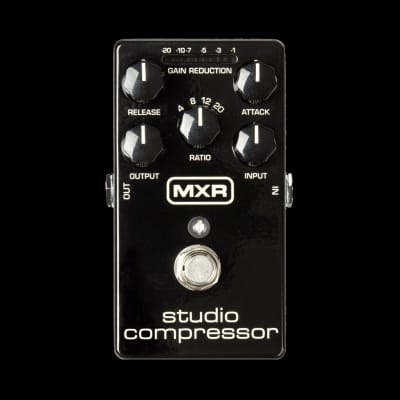

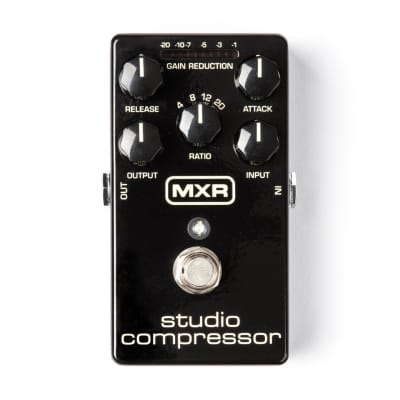

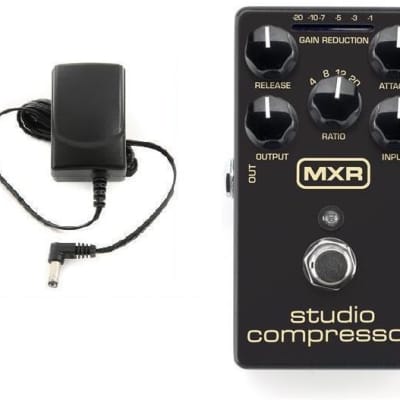

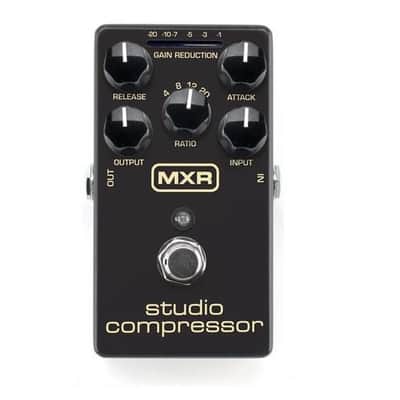

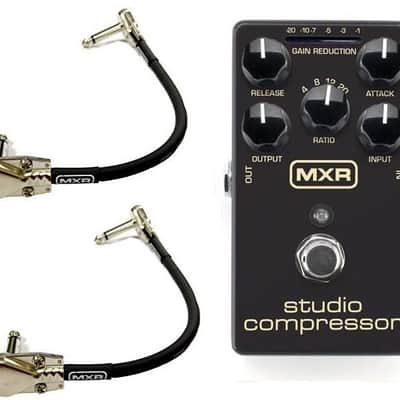

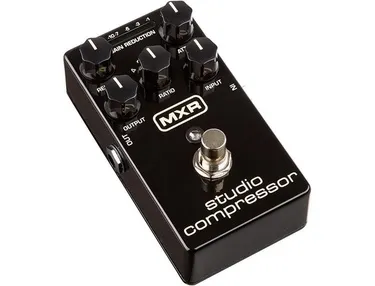

The MXR M76 Studio Compressor pedal is a classic studio compressor packed into a pedalboard-friendly box. It features Attack, Release, Ratio, Input, and Output controls, allowing users to fine-tune compression levels from subtle to intense. The pedal also includes a bright LED gain-reduction status meter for visual feedback. Constant Headroom Technology (CHT) provides ample headroom for clear, transparent performance. The pedal is housed in a durable, lightweight aluminum enclosure, similar in size to the Phase 90 pedal. It can be powered by a 9-volt battery, a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included). The pedal offers true bypass switching for clear, clean performance.

Technical Specifications:
- Input Impedance: 1 Mohm
- Output Impedance: 600 ohms
- Max Input Level: +14 dBV
- Max Output Level: +8.5 dBV
- Power Consumption: 9V DC center negative (power supply sold separately) 19 mA
- Bypass: True bypass
- Dimensions: H: 4.8 cm (including knobs), W: 5.9 cm, L: 11.2 cm

This information is based on the MXR M76 Studio Compressor pedal's technical specifications and features available from various sources.
